1. Product Introduction

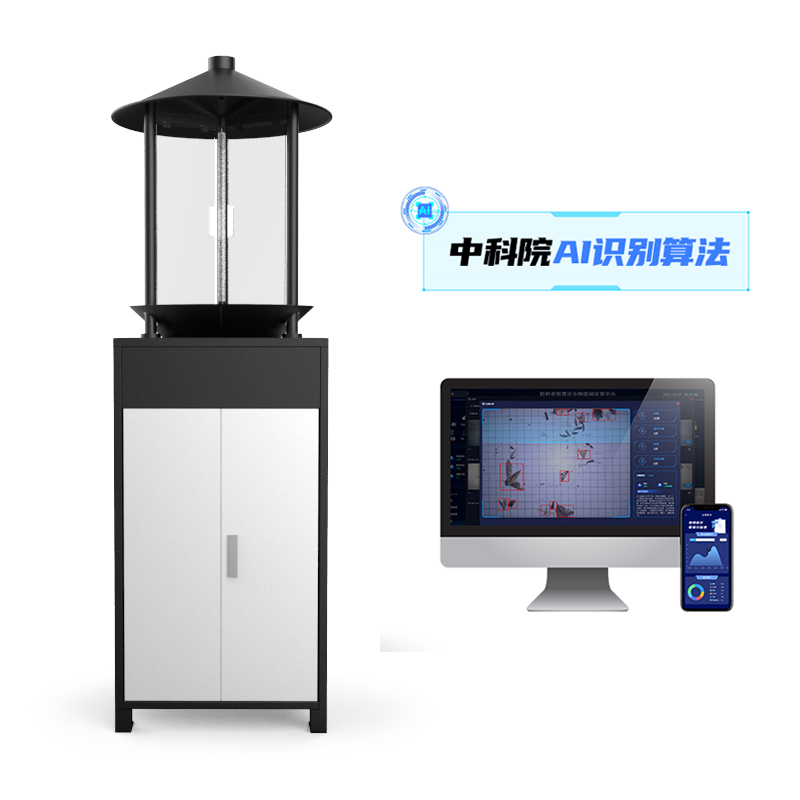

The caterpillar type insect detection and reporting lamp is specially developed for agricultural and forestry insect detection and reporting. This lamp utilizes modern optical, electrical, and CNC technology to achieve functions such as automatic processing of insect far infrared, automatic conversion of insect receiving bags, and automatic operation of the entire lamp. Automatically complete system operations such as trapping, killing, collecting, packaging, and drainage without supervision. Multiple sensor interfaces such as wind speed and direction, environmental temperature and humidity, and lighting can be added, and data can be uploaded through GPRS to monitor the relationship between the environment and pests and diseases. Widely used in agriculture, forestry, animal husbandry, vegetables, tobacco, tea, medicinal herbs, gardens, orchards, urban greening, quarantine and other fields.
2. Performance Characteristics
1. Meet the safety and technical requirements of the GB/T 24689.1-2009 plant protection machinery pest detection and reporting lamp standard.
2. The overall structure is made of stainless steel.
3. Adopting optical, electrical, and CNC technologies for automatic control.
4. Color 7-inch Chinese LCD capacitive touch screen operation; It can be set and controlled in different time periods, and can be taken automatically or manually.
5. The test report light is equipped with a 1200W pixel camera image acquisition device, which can collect real-time insect information on the conveyor belt through the camera. The captured image clarity can meet the requirements of manually identifying insect species.
6. The insect bodies are evenly scattered and laid flat on the conveyor belt, which can accurately send all trapped insect bodies to the shooting area of the high-definition camera device. The trapped insect bodies are shaken, dispersed, and leveled to ensure that each insect body feature is clearly captured.
7. The instrument is equipped with a built-in counting device, which can record the number of insects in real-time and upload them to the platform.
8. Remote setting working mode: remote wireless photography and remote setting of terminal device parameters.
9. When an insect falls, the image acquisition device automatically takes a picture and uploads it. When there is no insect, it does not take a picture and uploads it, saving network traffic. Remote automatic photography and manual photography are both available.
10. Equipped with an automatic cleaning and insect body storage device, the captured insect bodies can be transported away from the shooting area and collected into a receiving bottle. The receiving bottle has a capacity of 1.5L, and the collecting device can store insects for eight days.
11. Various instruments and data alarm parameters can be remotely uploaded to remote servers through the network, facilitating maintenance and management.
12. With built-in GPS positioning function, you can view data such as device sites on the map, and track stolen devices.
13. It can also manually control functions such as warehouse transfer, insect trap light switch, heating tube switch, pest control and drying warehouse emptying, vibration motor switch, conveyor belt switch, etc.
14. The upper and lower layers of far-infrared insect body treatment warehouses are more effective in completing pest control and drying work.
15. Temperature control of far-infrared insect body treatment warehouse: After working for 15 minutes, the temperature reaches 90 ± 5 ℃, and the treatment time can be adjusted arbitrarily.
16. The Case fatality rate of far-infrared insect treatment is not less than 98%, and the insect integrity rate is not less than 95%.
17. Insect trapping light source: 20W insect trapping lamp tube, main wavelength 365nm, lamp start time: less than 5 seconds.
18. Light control: Automatically turn on the lights at night, turn off the lights during the day (standby), and work at night without being affected by instantaneous strong light to change the working state.
19. Time period control: Set the working time period based on the living habits of target pests.
20. Rain control system device: A separate drainage system structure that automatically discharges rainwater, effectively separating rain and insects, and ensuring that there is no accumulated water inside the box.
21. Power supply: Voltage fluctuation range: 220V ± 60V, with leakage protection device.
22. Lightning protection device: effectively preventing lightning strikes.
23. Multiple environmental parameter interfaces such as wind speed and direction, ground temperature and humidity, lighting, rainfall, etc. can be added.
24. Network mode: Multiple networking methods available, including 4G, WIFI, and wired, allowing for anytime, anywhere network management.
25. Identification and filtering of large and small insects: A filter is installed around the capture port to prevent non target large insects from entering the equipment and affecting the automatic recognition of small insects (optional).
3. Technical Parameter
1. Power supply: Applicable power supply voltage AC220V ± 60V, and the power stabilizer isolator can ensure the output voltage AC220V ± 5V
2. Power consumption: standby state ≤ 5W; Whole lamp power ≤ 450W
3. Insect trap light source: 20W black light tube (main wavelength 365nm)
4. Impact screen: at a 120 degree angle to each other, single screen size: length 595 ± 2mm, width 213 ± 2mm, thickness 5mm
5. Lamp start performance: Start within 5s
6. Temperature control of far-infrared insect body treatment warehouse: reach 85 ± 5 ℃ after working for 15 minutes
7. Insulation resistance: ≥ 2.5M Ω

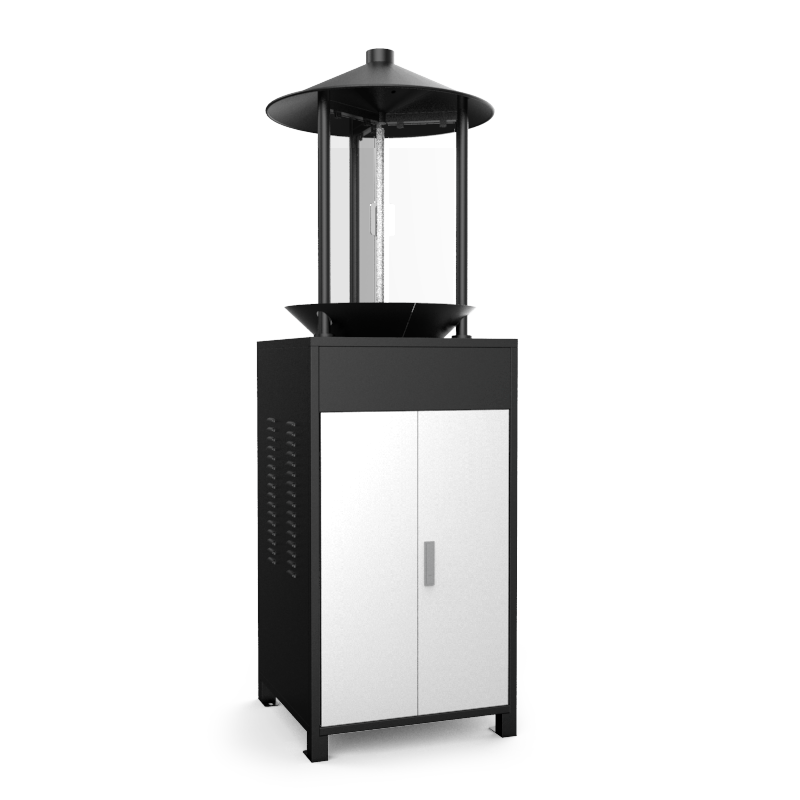

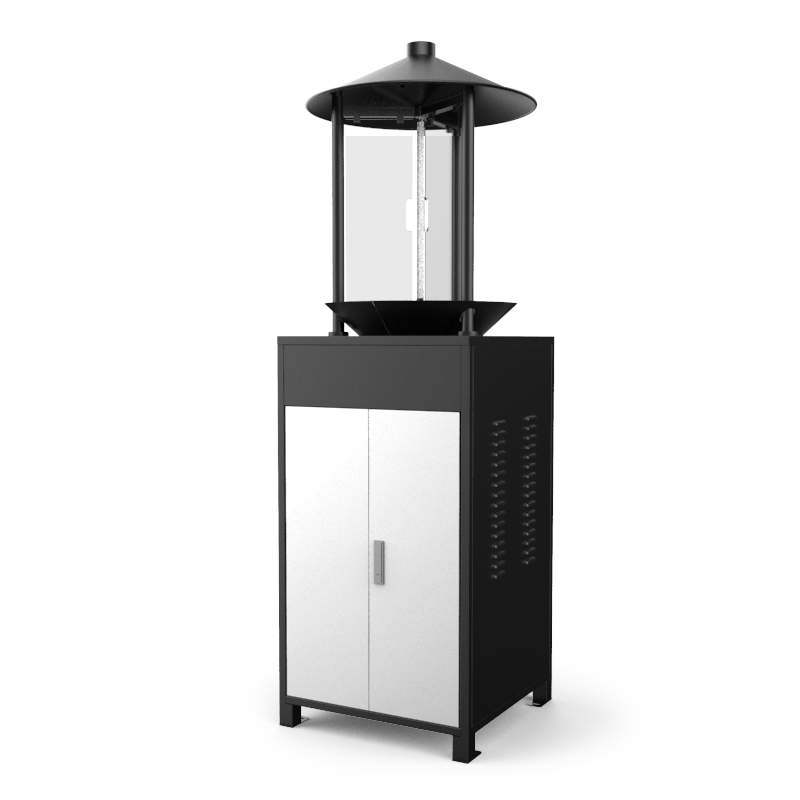

8. Lamp body size: 650mm × 650mm × 2100mm
9. Design life: ≥ 10 years
