1. Product Features

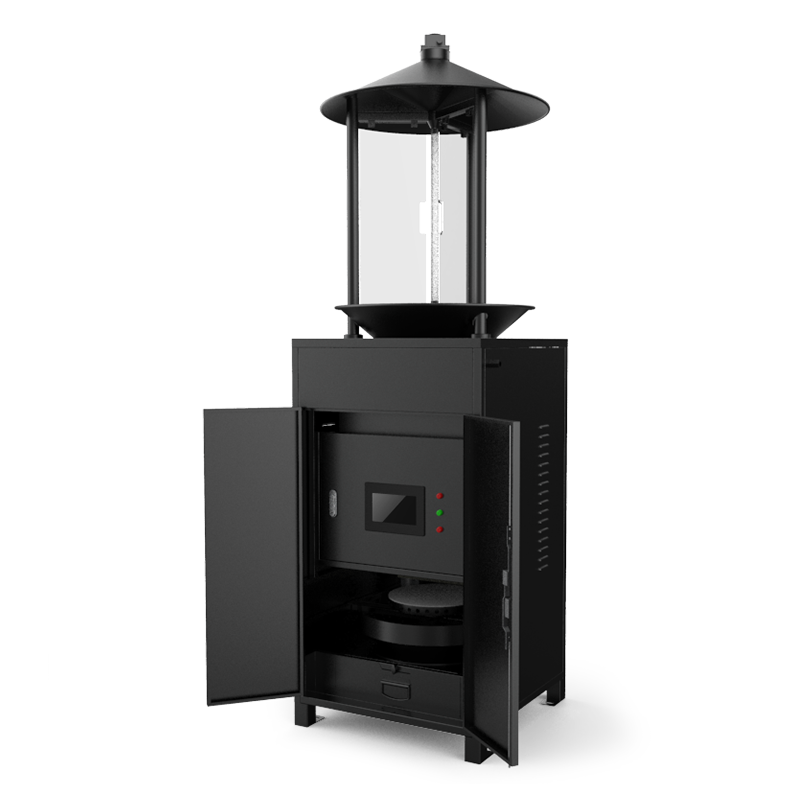

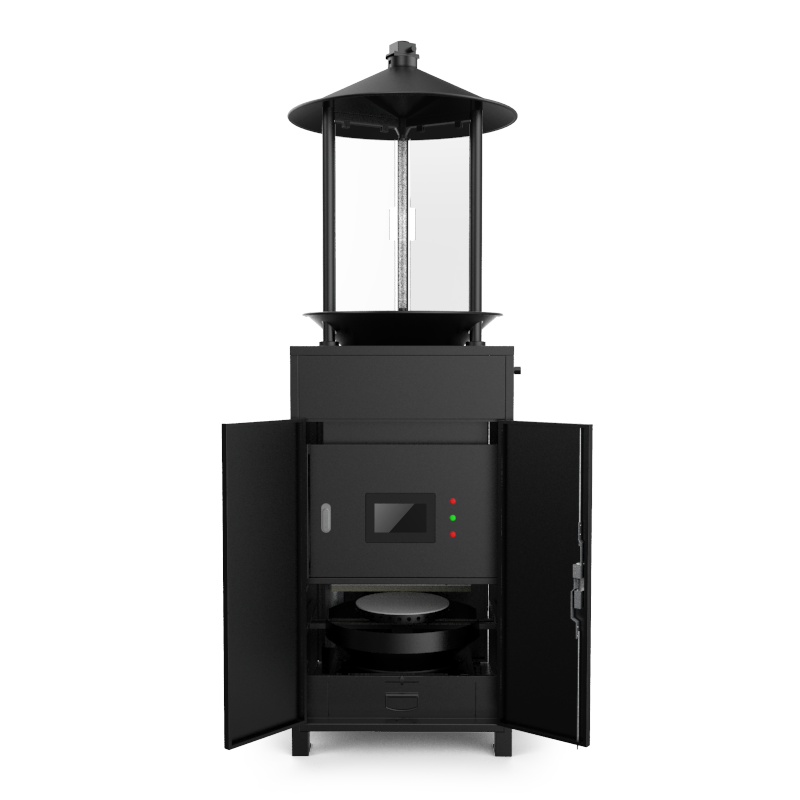

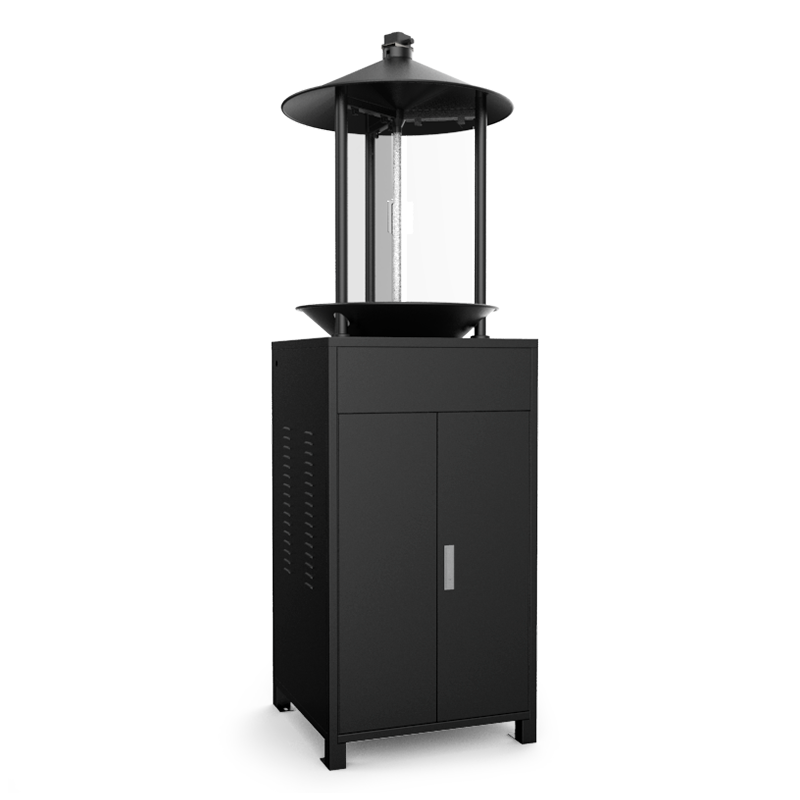

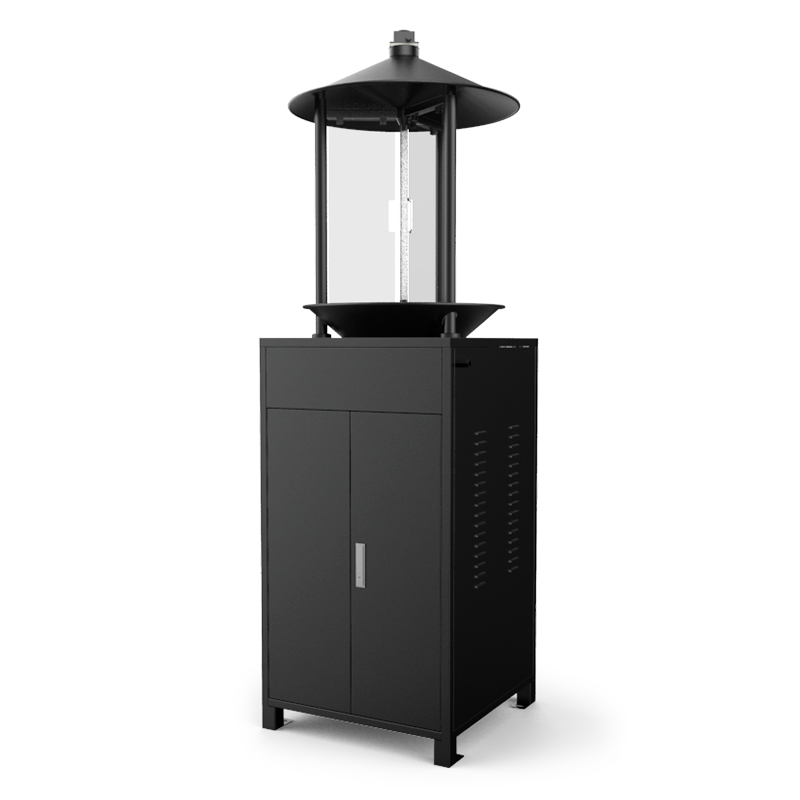

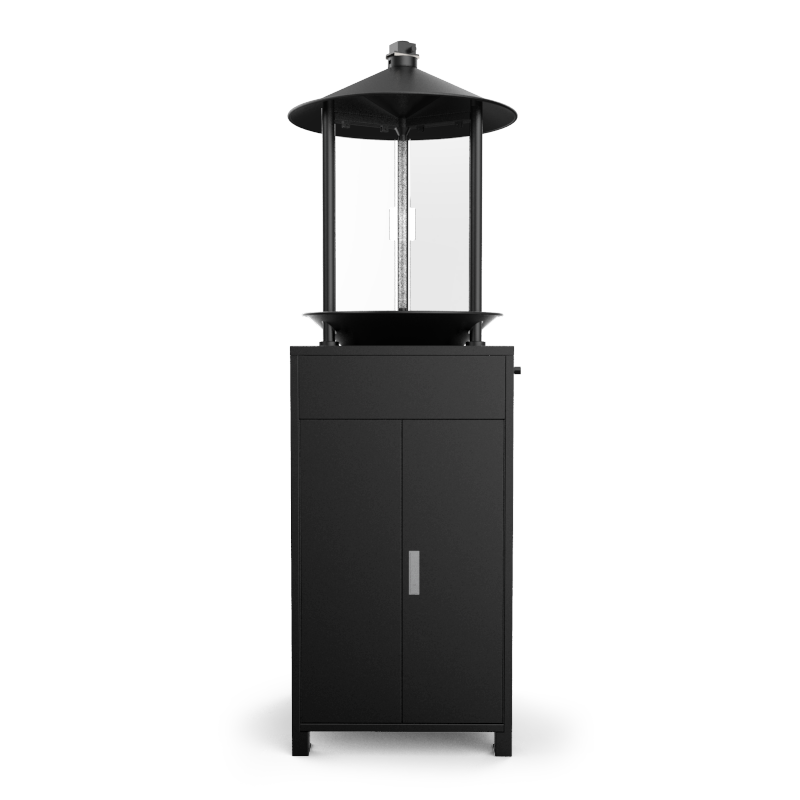

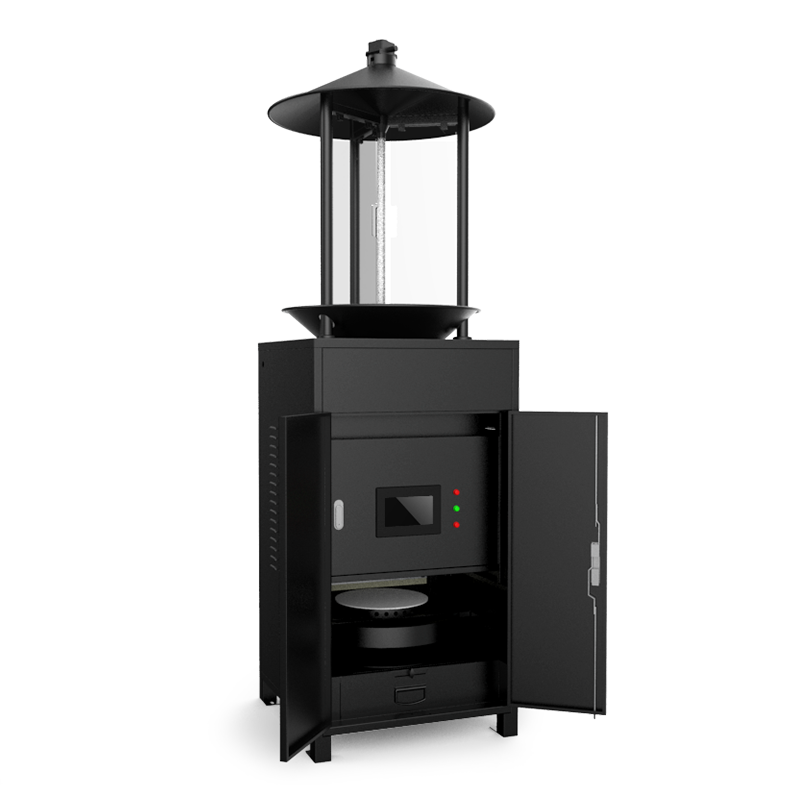

The turntable pest detection and reporting lamp is specially developed for agricultural and forestry pest detection and reporting. This lamp utilizes modern optical, electrical, and CNC technology to achieve functions such as insect far-infrared automatic processing, automatic photography, and automatic operation of the entire lamp. Automatically complete system operations such as trapping, killing, taking photos, collecting, and drainage without supervision. Multiple sensor interfaces such as wind speed and direction, environmental temperature and humidity, and lighting can be added, and data can be uploaded wirelessly to monitor the relationship between the environment and pests and diseases. Widely used in agriculture, forestry, animal husbandry, vegetables, tobacco, tea, medicinal herbs, gardens, orchards, urban greening, quarantine and other fields.
2. Performance Characteristics
1. Comply with the GB/T24689.1-2009 plant protection machinery pest detection and reporting lamp standard;
2. Implement wireless network monitoring and management, device operation management, fault alarm, and other functions in operation status;
3. PLC is used to control the operation and monitoring of the entire testing and reporting light, and the product function LED indicator light status is displayed;

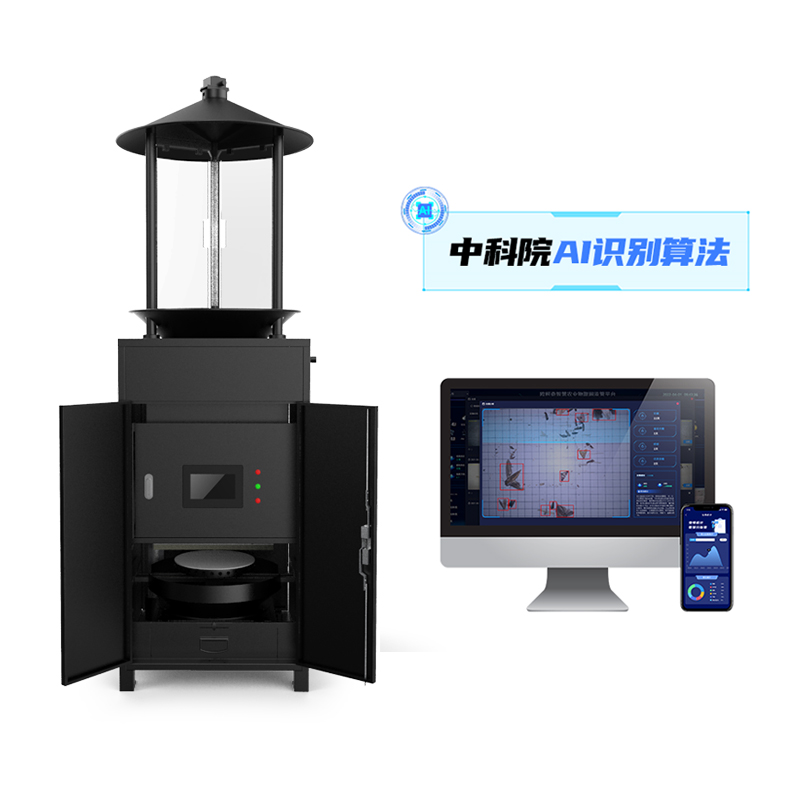

4. Insect situation image photography: Using a 12 megapixel industrial dedicated camera, it can perform low illumination imaging and transmit it to the server through TCP/IP, which can identify common pests;
5. The frequency of taking photos can be set, and can be automatically counted and controlled based on the interval between the number of fallen insects;
6. Automatically turn on the lights at night and turn off the lights during the day. When working at night, it is not affected by instantaneous strong light to change the working state;
7. Using a photo disc to catch insects, the disc is equipped with a scale and waterproof layer, which can automatically clean fallen insects;
8. Rain control device: Automatically controls the operation of the entire lamp according to changes in external rainfall;
9. It can increase the number of traps hitting the shutter, effectively reduce Beetle pests, and make the forecast more targeted. It can increase counting and photo taking functions, improve the humanization of the equipment, and scientifically monitor and warn the occurrence patterns of insect pests.
10. Equipped with a network information platform and equipment operation platform, achieving intuitive, networked, real-time, convenient, and user-friendly pest detection and reporting;
11. The system can integrate meteorological monitoring such as air temperature and humidity, wind speed and direction, and has the function of collecting and analyzing meteorological data. The data can be wirelessly transmitted to the client through GPRS, making it convenient for customers to view.
3. Technical Parameter
1. Power supply: Applicable power supply voltage AC220V ± 60V, and the power stabilizer isolator can ensure the output voltage AC220V ± 5V
2. Power consumption: standby state ≤ 5W; Whole lamp power ≤ 450W
3. Insect trap light source: 20W black light tube (main wavelength 365nm)
4. Impact screen: at a 120 degree angle to each other, single screen size: length 595 ± 2mm, width 213 ± 2mm, thickness 5mm
5. Lamp start performance: Start within 5s
6. Temperature control of far-infrared insect body treatment warehouse: reach 85 ± 5 ℃ after working for 15 minutes
7. Insulation resistance: ≥ 2.5M Ω
8. Lamp body size: 650mm × 650mm × 2100mm
9. Design life ≥ 10 years
