1. Product Features

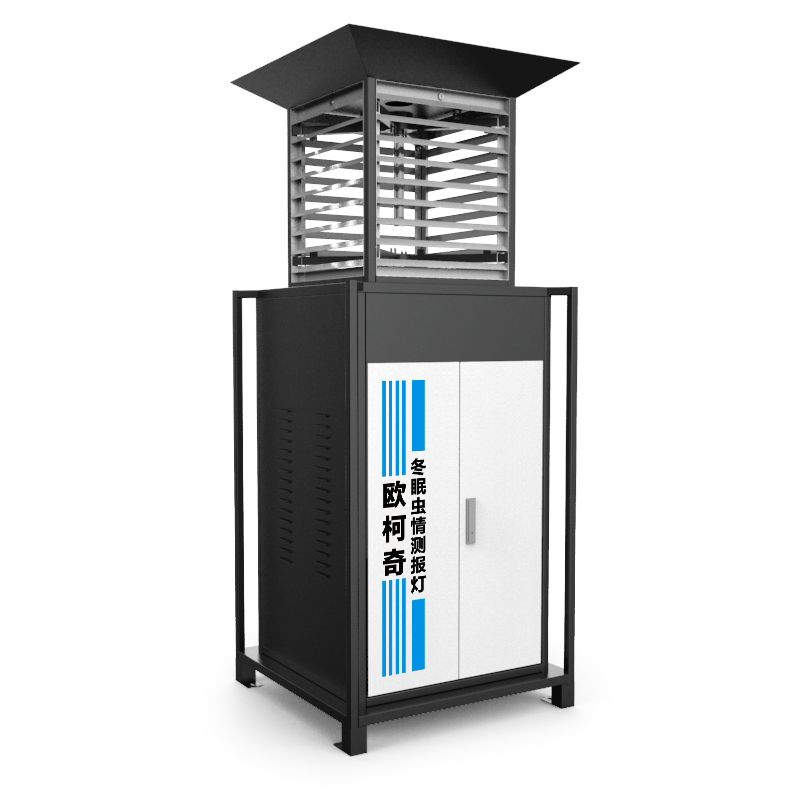

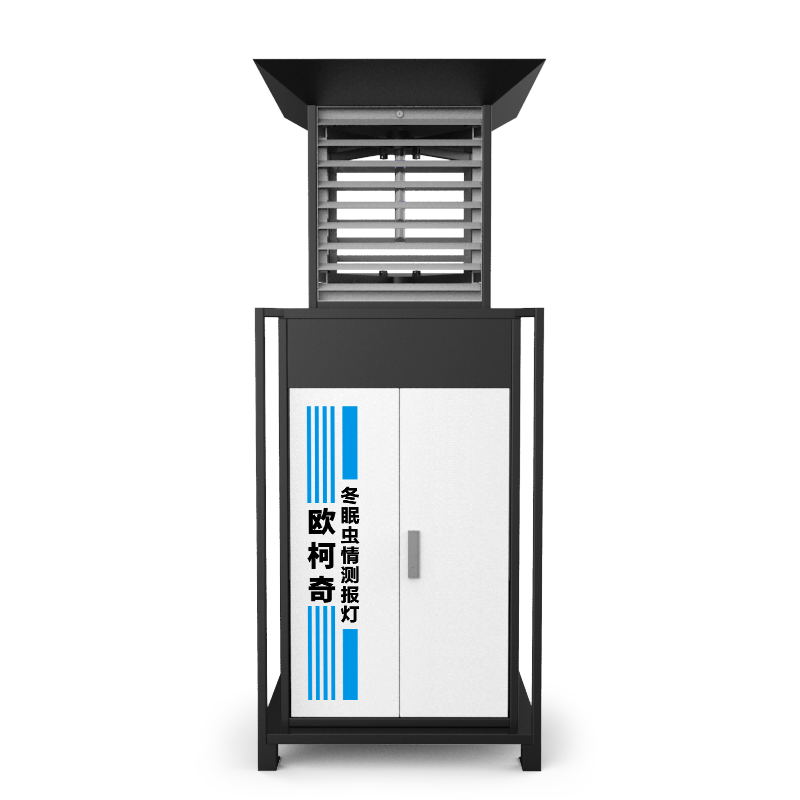

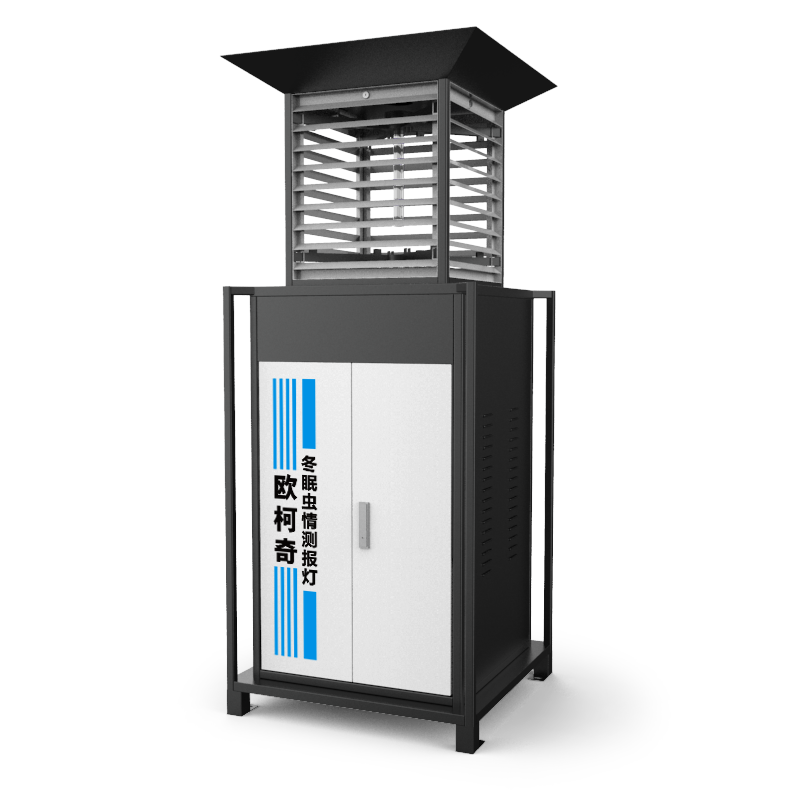

The hibernation type insect detection and reporting lamp is specially developed for agricultural and forestry insect detection and reporting. This lamp utilizes modern light, electricity, and CNC technology to achieve functions such as automatic processing of insect freezing and automatic operation of the entire lamp. In the absence of supervision, it can automatically complete system operations such as trapping insects, freezing insect bodies, receiving condensate water, taking photos, weighing, and scanning insects. Multiple sensor interfaces such as wind speed and direction, environmental temperature and humidity, and lighting can be added, and data can be uploaded through 4G/5G to monitor the relationship between the environment and pests. Widely used in agriculture, forestry, animal husbandry, vegetables, tobacco, tea, medicinal herbs, gardens, orchards, urban greening, quarantine and other fields.
2. Performance Characteristics
1. Meet the safety and technical requirements of the GB/T 24689.1-2009 plant protection machinery pest detection and reporting lamp standard.
2. The overall structure is made of stainless steel.
3. Adopting optical, electrical, and CNC technologies for automatic control.
4. Color 7-inch Chinese LCD capacitive touch screen operation; It can be set and controlled in different time periods, and can be taken automatically or manually; Intelligent control of Android system, displaying environmental temperature, humidity, and time.
5. The reporting lamp is equipped with a 1200W pixel camera image acquisition device, which can collect the insect situation on the electronic scale through the camera. The captured image clarity can meet the requirements of manually identifying insect species.
6. The reporting lamp is equipped with a high-precision electronic balance with a resolution of 0.05g, which weighs the frozen insect body and uploads the weight to the platform. The platform calculates the development trend of the insect situation based on the weight changes of the insect body.
7. Remote setting working mode: remote wireless photography and remote setting of terminal device parameters.
8. Various instruments and data alarm parameters can be remotely uploaded to remote servers through the network, facilitating maintenance and management.
9. With built-in GPS positioning function, you can view data such as device sites on the map, and track stolen devices.
10. You can also manually control functions such as insect trap light switch, up/down insect switch, down insect switch, hibernation switch, condensate water connection switch, photography and insect scanning.
11. Hibernation chamber temperature control: automatic temperature control, adjustable cooling time, built-in compressor pressure controller, can achieve compressor overpressure protection.
12. Insect trapping light source: 8W insect trapping lamp tube, main wavelength 365nm, lamp start time: less than 5 seconds.
13. Light control: Automatically turn on the lights at night, turn off the lights during the day (standby), and work at night without being affected by instantaneous strong light to change the working state.
14. Time period control: Set the working time period based on the living habits of target pests.
15. Rain control system device: adopts a shutter structure to prevent rainwater from entering and ensure that there is no accumulated water inside the box.
16. Power supply: Voltage fluctuation range: 100-260VAC, with leakage protection device.
17. Lightning protection device: effectively prevents lightning strikes.
18. Multiple environmental parameter interfaces such as wind speed and direction, ground temperature and humidity, lighting, rainfall, etc. can be added.
19. Network mode: Multiple networking methods available, including 4G, WIFI, and wired, allowing for anytime, anywhere network management.
3. Technical Parameter
1. Power supply: Applicable power supply voltage 100-260VAC
2. Power consumption: standby state ≤ 15W; Whole lamp power: ≤ 650W
3. Insect trap light source: 8W black light tube (main wavelength 365nm)
4. Impact screen: at a 90 degree angle to each other, single screen size: length 441 ± 2mm, width 225 ± 2mm, thickness 5mm
5. Lamp start performance: Start within 5s
6. Temperature control of hibernation chamber: reach -10 ℃~-15 ℃ after working for 15 minutes
7. Insulation resistance: ≥ 2.5M Ω
8. Lamp body size: 960mm × 760mm × 2303mm
9. Design life ≥ 5 years
