1. Product Features

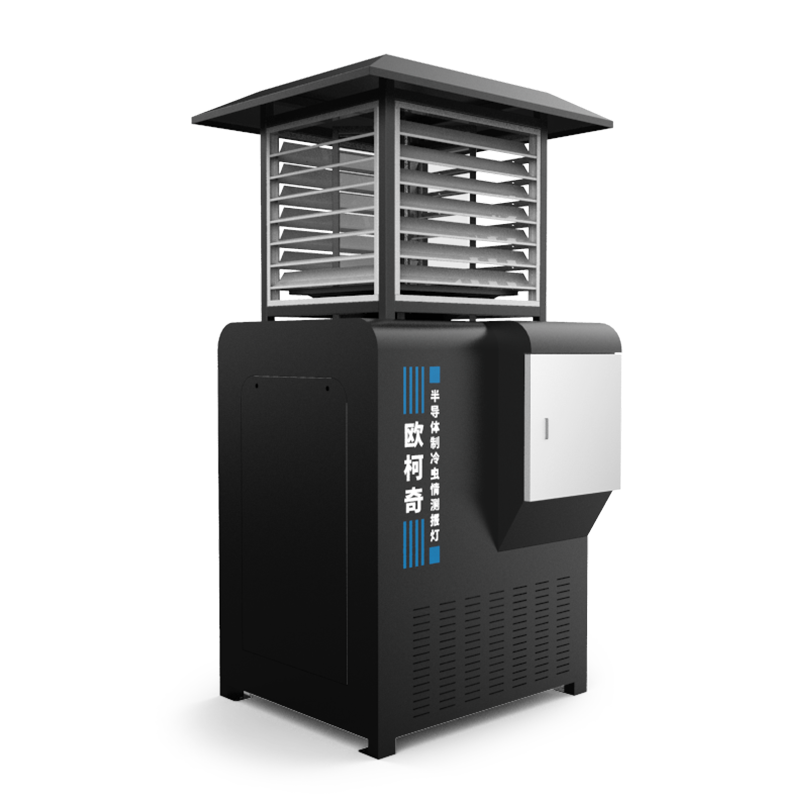

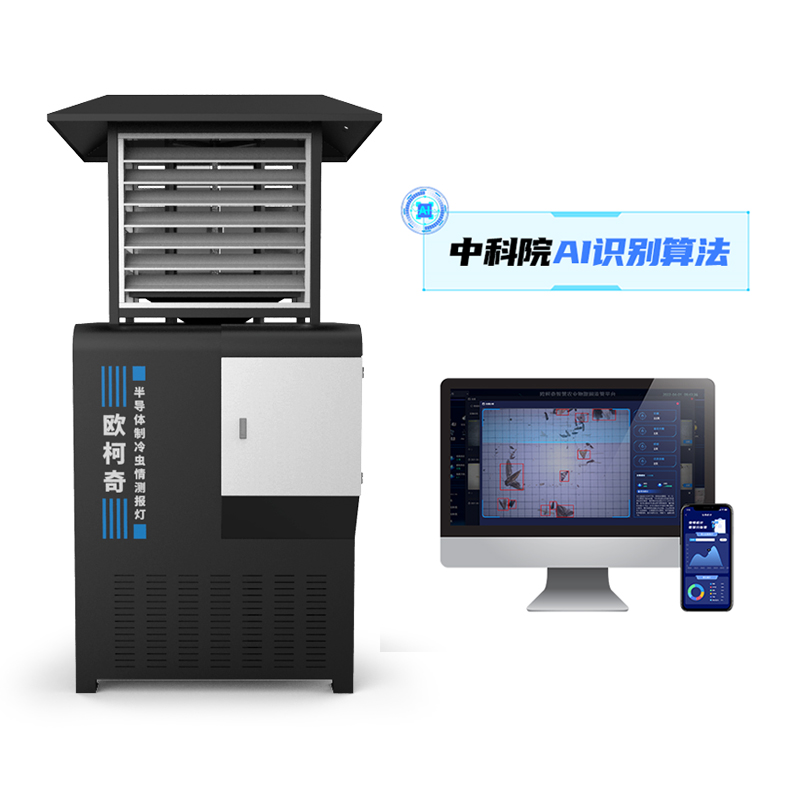

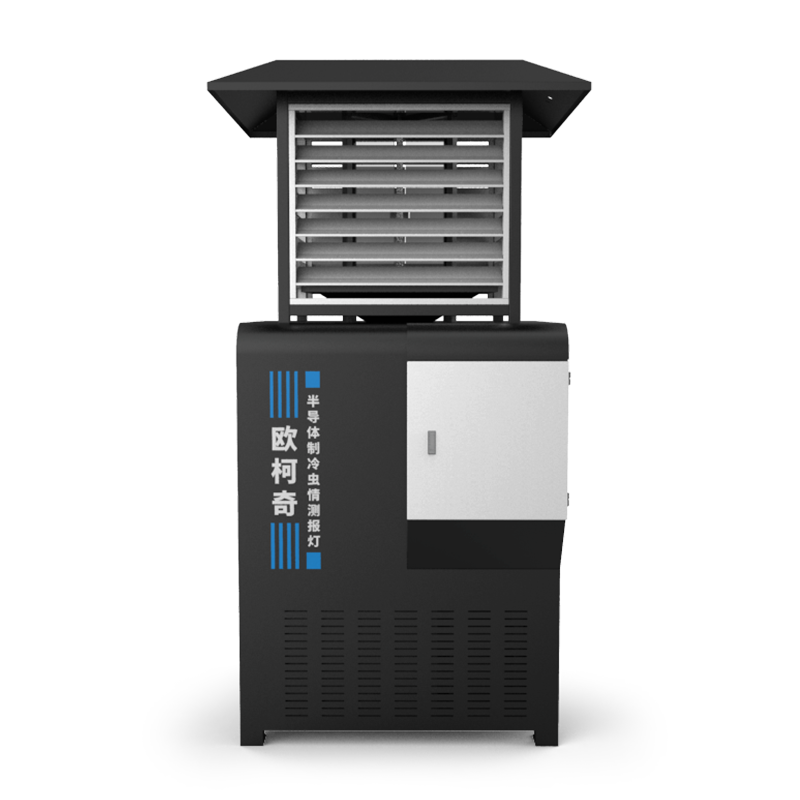

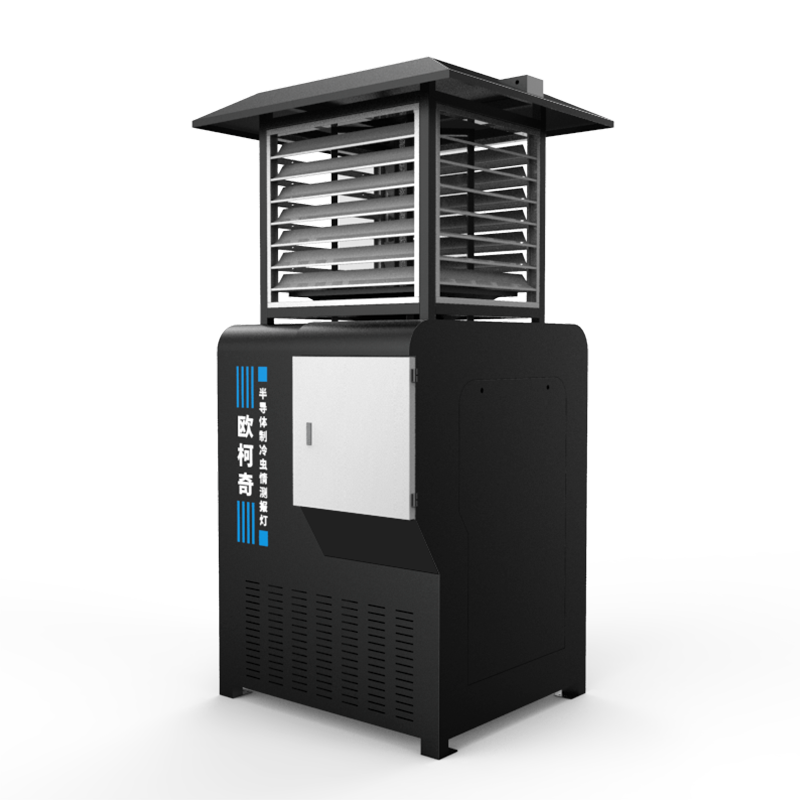

The semiconductor refrigeration insect detection and reporting lamp is specially developed for agricultural and forestry insect detection and reporting. This lamp utilizes modern light, electricity, and CNC technology to achieve functions such as ultra-low temperature freezing treatment of insect bodies, automatic spreading and scattering of insects, automatic photo uploading, and automatic operation of the entire lamp. In the absence of supervision, it can automatically complete system operations such as trapping and scattering insects, taking photos, and collecting. Multiple sensor interfaces such as wind speed and direction, environmental temperature and humidity, and lighting can be added, and data can be uploaded through 4G/5G to monitor the relationship between the environment and pests. Widely used in agriculture, forestry, animal husbandry, vegetables, tobacco, tea, medicinal herbs, gardens, orchards, urban greening, quarantine and other fields.
2. Performance Characteristics
1. Meet the safety and technical requirements of the GB/T 24689.1-2009 plant protection machinery pest detection and reporting lamp standard.
2. The overall structure is made of stainless steel.
3. Adopting optical, electrical, and CNC technologies for automatic control.
4. Color 7-inch Chinese LCD capacitive touch screen operation; It can be set and controlled in different time periods, and can be taken automatically or manually; Android system intelligent control.
5. The reporting lamp is equipped with a 1200W pixel camera image acquisition device, which can collect real-time insect information on the conveyor belt through the camera. The captured image clarity can meet the requirements of manually identifying insect species.
6. The insect bodies are evenly scattered and laid flat on the conveyor belt, which can accurately send all trapped insect bodies to the shooting area of the high-definition camera device. The trapped insect bodies are shaken, dispersed, and leveled to ensure that the characteristics of each insect body are clearly captured.
7. The working mode can be set remotely, and wireless photography and terminal device parameters can be set remotely.
8. Equipped with an automatic cleaning device, it can transport the captured insect bodies away from the shooting area.
9. Various instruments and data alarm parameters can be remotely uploaded to remote servers through the network, facilitating maintenance and management.
10. With built-in GPS positioning function, you can view data such as device sites in the map, and track stolen devices.
11. Adopting ultra-low temperature freezing insecticidal technology, the freezing temperature can be adjusted, and the freezing temperature is ≤ -18 degrees.
12. The integrity rate of the insect body after ultra-low temperature freezing treatment shall not be less than 99%.
13. Insect trapping light source: 20W insect trapping lamp tube, main wavelength 365nm, lamp start time: less than 5 seconds.
14. Light control: Automatically turn on the lights at night and turn off the lights during the day (standby). When working at night, it is not affected by instantaneous strong light to change the working state.
15. Time period control: Set the working time period based on the living habits of target pests.
16. Power supply: Voltage fluctuation range: 220V ± 60V, with leakage protection device.
17. Lightning protection device: effectively preventing lightning strikes.
18. Multiple environmental parameter interfaces such as wind speed and direction, ground temperature and humidity, lighting, and rainfall can be added.
19. Network mode: Multiple networking methods available, including 4G, WIFI, and wired, allowing for anytime, anywhere network management.
20. Rainproof louver design: It can effectively prevent rainwater and can work normally even on rainy days.
3. Technical Parameter
1. Power supply: Applicable power supply voltage AC220V ± 60V, and the power stabilizer isolator can ensure the output voltage of 220V ± 5V
2. Power consumption: standby state ≤ 20W; Peak power of the entire lamp ≤ 3100W
3. Insect trap light source: 20W black light tube (main wavelength 365nm)
4. Impact screen: at a 90 degree angle to each other, single screen size: length 595 ± 2mm, width 213 ± 2mm, thickness 5mm
5. Lamp start performance: Start within 5s
6. Temperature control of freezing treatment warehouse: Reaching -18 ℃ after 15 minutes of operation
7. Insulation resistance: ≥ 2.5M Ω
8. Lamp body size: 1050mm × 950mm × 2250mm
9. Design life ≥ 10 years
