1. Product Features
2. Performance Characteristics
1. Meet the safety and technical requirements of the GB/T 24689.1-2009 plant protection machinery pest detection and reporting lamp standard.
2. The overall structure adopts stainless steel spray molding process.
3. Adopting optical, electrical, and CNC technologies for automatic control.

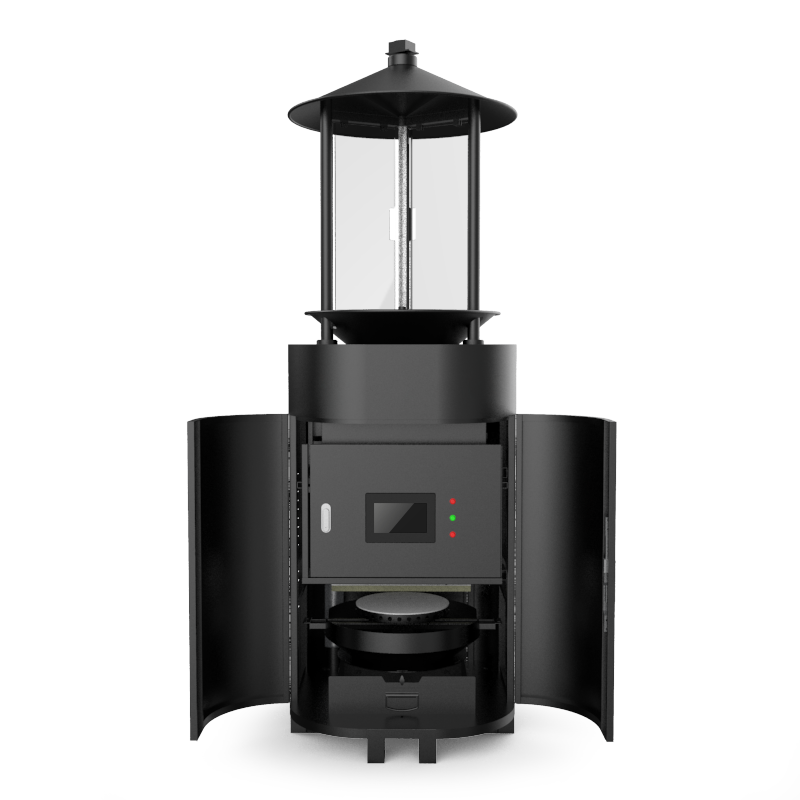

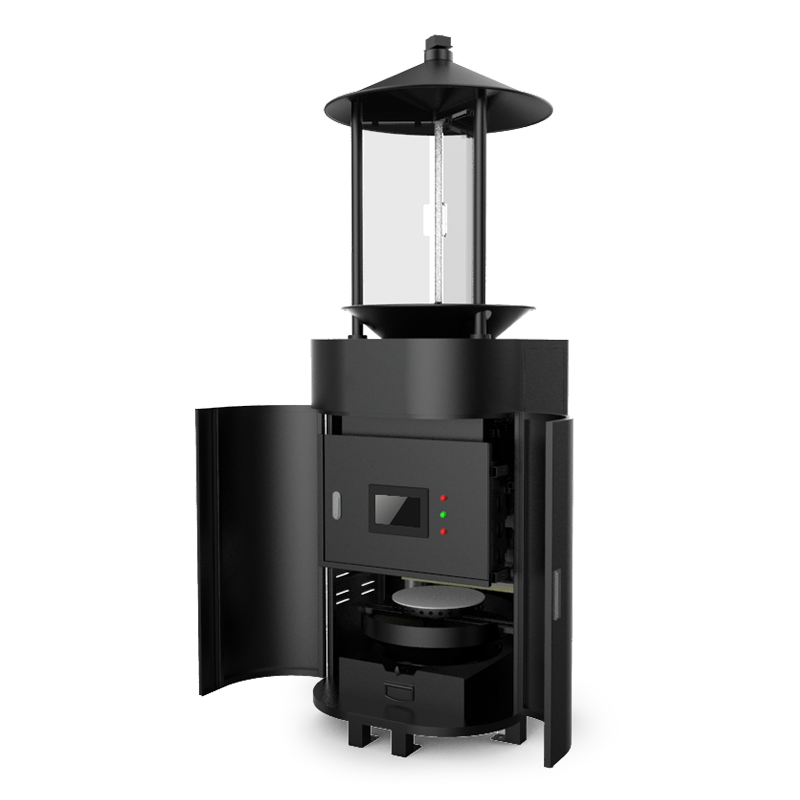

4. Color 7-inch Chinese LCD capacitive touch screen operation; It can be set and controlled in different time periods, and can be taken automatically or manually; Android system intelligent control.

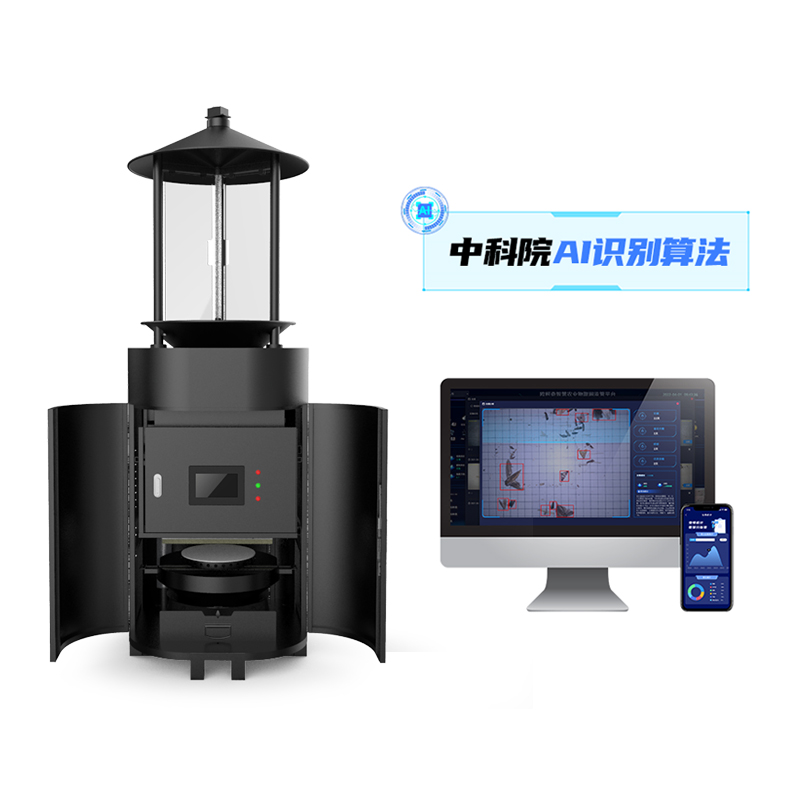

5. Equipped with a built-in 1200W pixel image acquisition device, it can collect real-time insect information.
6. Equipped with a multi-channel insect separation device, the insect body can be evenly placed on the photo plane according to different sizes.
7. The instrument has a built-in counting device that can record the number of insects in real-time and upload them to the platform.
8. Remote setting of working mode: remote wireless photography and remote setting of terminal device parameters can be carried out.
9. Equipped with an automatic cleaning device, it can transport the captured insect bodies away from the shooting area.
10. Various instruments and data alarm parameters can be remotely uploaded to remote servers through the network, facilitating maintenance and management.
11. With built-in GPS positioning function, you can view data such as device sites in the map, and track stolen devices.
12. The upper and lower layers of far-infrared insect body treatment warehouses can more effectively complete pest control and drying work.
13. Temperature control of far-infrared insect body treatment warehouse: After working for 15 minutes, the temperature reaches 90 ± 5 ℃, and the treatment time can be adjusted arbitrarily.
14. The Case fatality rate of far-infrared insect treatment shall not be less than 98%, and the insect integrity rate shall not be less than 95%.
15. Light control: Automatically turn on the lights at night, turn off the lights during the day (standby), and work at night without being affected by instantaneous strong light to change the working state.
16. Time period control: Set the working time period based on the living habits of target pests.
17. Rain control system device: A separate drainage system structure that automatically discharges rainwater, effectively separating rain and insects, and ensuring that there is no accumulated water inside the box.
18. Power supply: Voltage fluctuation range: 220V ± 60V, with leakage protection device.
19. Lightning protection device: effectively preventing lightning strikes.
20. Multiple environmental parameter interfaces such as wind speed and direction, ground temperature and humidity, lighting, and rainfall can be added.
21. Network mode: Multiple networking methods available, including 4G, WIFI, and wired, allowing for anytime, anywhere network management.
22. Identification and filtration of large and small insects: A filter is installed around the capture port to prevent non target large insects from entering the equipment and affecting the automatic recognition of small insects (optional).
3. Technical Parameter
1. Power supply: Applicable power supply voltage AC220V ± 60V, and the power stabilizer isolator can ensure the output voltage of 220V ± 5V
2. Power consumption: standby state ≤ 5W; Whole lamp power ≤ 450W
3. Insect trap light source: 20W black light tube (main wavelength 365nm)
4. Impact screen: at a 120 degree angle to each other, single screen size: length 595 ± 2mm, width 213 ± 2mm, thickness 5mm
5. Lamp start performance: Start within 5s
6. Insulation resistance: ≥ 2.5M Ω
7. Lamp body size: 650mm × 650mm × 2100mm
8. Design life: ≥ 10 years
