1. Product Features

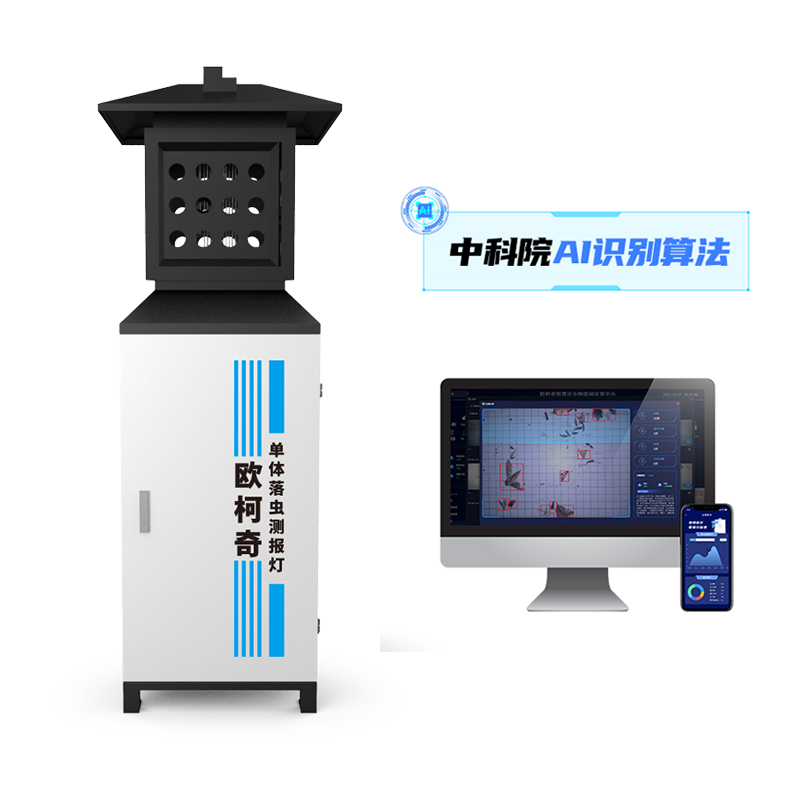

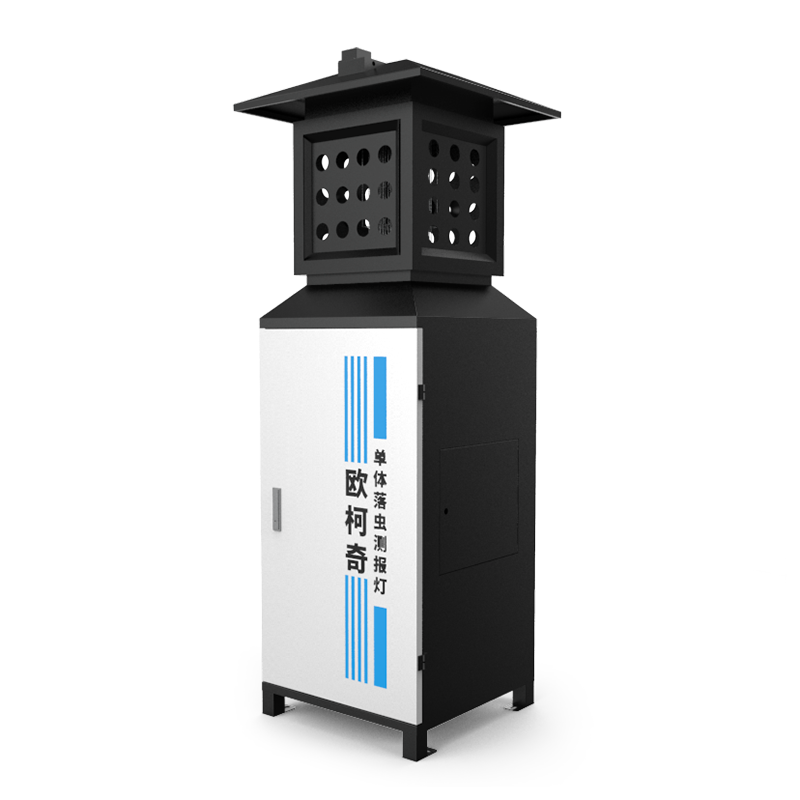

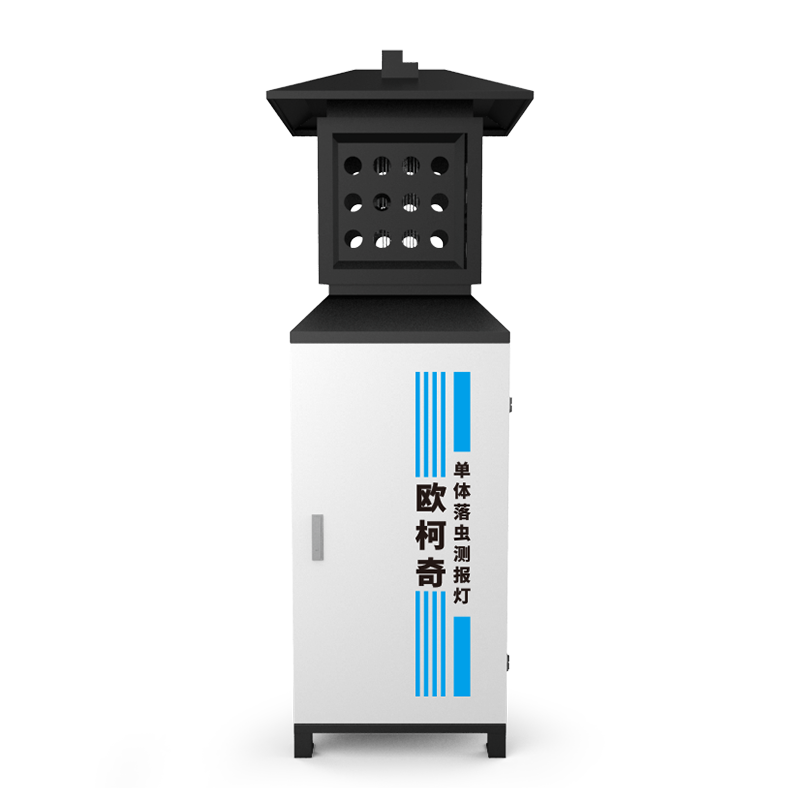

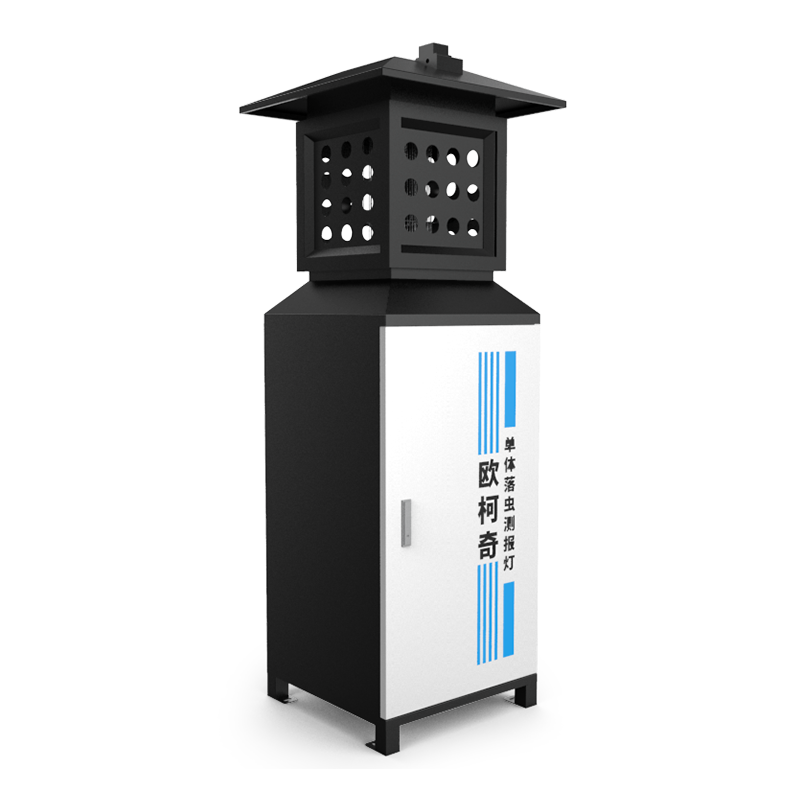

The single body pest detection and reporting lamp is specially developed for the detection and reporting of agricultural and forestry pests. This lamp utilizes modern light, electricity, and CNC technology to achieve functions such as automatic pest trapping, automatic photo uploading, and automatic operation of the entire lamp. It has changed the traditional situation of using infrared detection lamps to process insect bodies and then taking centralized photos, achieving one by one trapping and killing, taking photos one by one, and making the photos clear and recognizable. Automatically complete system operations such as trapping, killing, taking photos, and collecting insects without supervision. Multiple sensor interfaces such as wind speed and direction, environmental temperature and humidity, and lighting can be added, and data can be uploaded through 4G/5G to monitor the relationship between the environment and pests. Widely used in agriculture, forestry, animal husbandry, vegetables, tobacco, tea, medicinal herbs, gardens, orchards, urban greening, quarantine and other fields.
2. Performance Characteristics
1. Meet the safety and technical requirements of the GB/T 24689.1-2009 plant protection machinery pest detection and reporting lamp standard.
2. The overall structure adopts stainless steel spray design.
3. Adopting optical, electrical, and CNC technologies for automatic control.
4. A 15 inch ultra large high-definition capacitive touch screen with a Windows operating system and a good human-computer interaction interface.
5. Two high-speed motion image acquisition devices are installed in the insect detection channel of the reporting lamp, which can capture the fallen insect body in real-time. The captured image clarity can meet the requirements of manual identification of insect species.
6. Circular high-voltage power grid, with a grid impact area of ≥ 0.28 square meters.
7. Equipped with a dual grating trigger device, it can monitor the status of the falling insect channel in real-time.
8. Remote setting of working mode: Terminal device parameters can be set through web or app.
9. Equipped with a camera focal length calibration device, which can independently calibrate the camera focal length as needed.
10. Equipped with a 4-channel image moving device that can remotely and manually adjust the camera field of view.
11. When a worm falls, the image acquisition device automatically takes a picture and uploads it. When there is no worm, it does not take a picture and uploads it, saving network traffic.
12. Multiple insect collection methods, with a drawer type insect box design, can collect insects in a centralized manner or discharge them from the equipment.
13. Various instruments and data alarm parameters can be remotely uploaded to remote servers through the network, facilitating maintenance and management.
14. With built-in GPS positioning function, you can view data such as device sites in the map, and track stolen devices.
15. Light control: Automatically turn on the lights at night, turn off the lights during the day (standby), and work at night without being affected by instantaneous strong light to change the working state.
16. Time period control: Set the working time period based on the living habits of target pests.
17. Rain control system device: A separate drainage system structure that automatically discharges rainwater, effectively separating rain and insects, and ensuring that there is no accumulated water inside the box.
18. Power supply: Voltage fluctuation range: 220V ± 60V, with leakage protection device.
19. Lightning protection device: effectively preventing lightning strikes.
20. Multiple environmental parameter interfaces such as wind speed and direction, ground temperature and humidity, lighting, and rainfall can be added.
21. Network mode: Multiple networking methods available, including 4G, WIFI, and wired, allowing for anytime, anywhere network management.
22. Custom trap mouth: The trap mouth structure can be customized based on the target pest.
3. Technical Parameter
1. Power supply: Applicable power supply voltage AC220V ± 60V, and the power stabilizer isolator can ensure the output voltage of 220V ± 5V
2. Power consumption: standby state ≤ 5W; Whole lamp power ≤ 100W
3. Insect trap light source: 20W black light tube (main wavelength 365nm)
4. Impact area: ≥ 0.28 ㎡
5. Grid voltage: ≥ 2300V
6. Lamp start performance: Start within 5s
7. Insulation resistance: ≥ 2.5M Ω
8. Lamp body size: 600mm × 600mm × 1900mm
9. Design life: ≥ 10 years
