1. Product Features

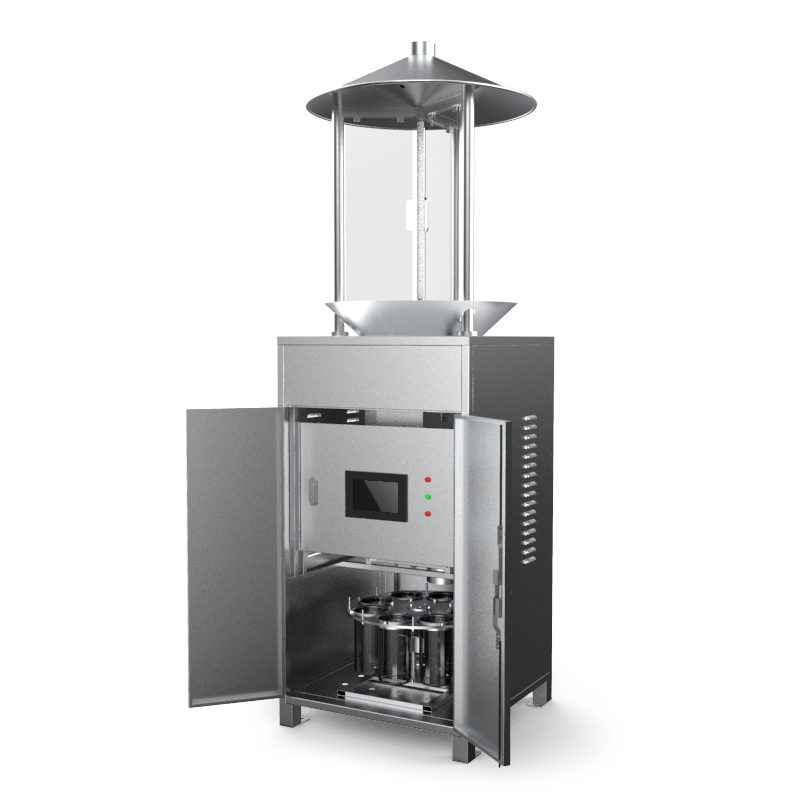

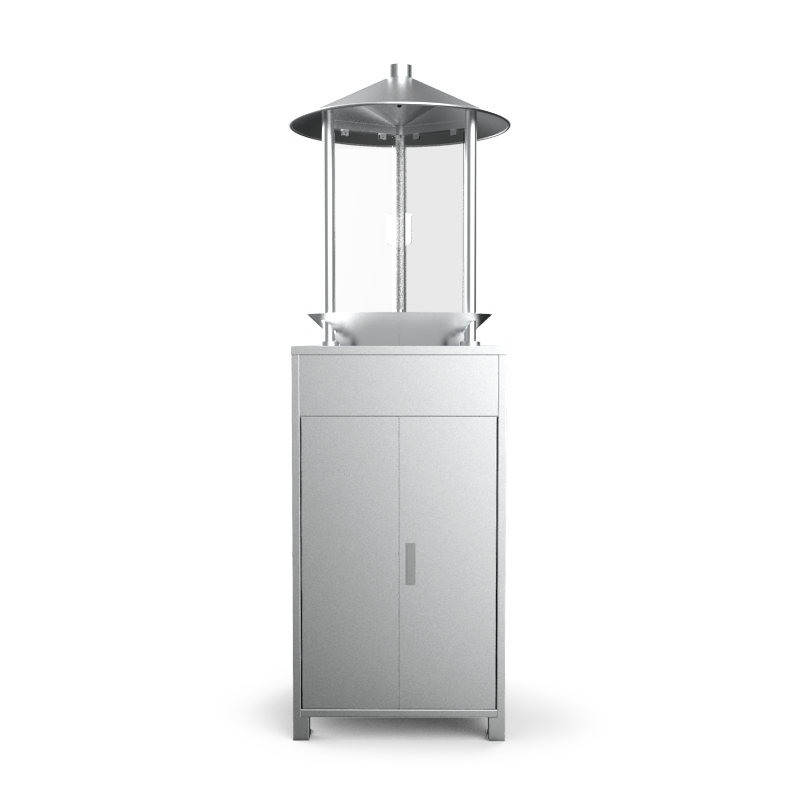

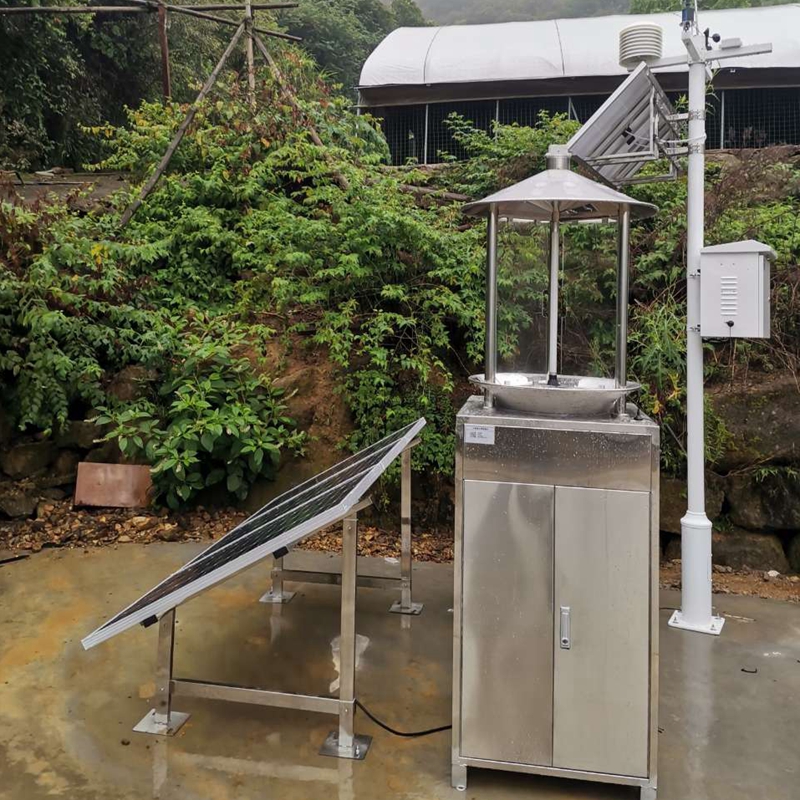

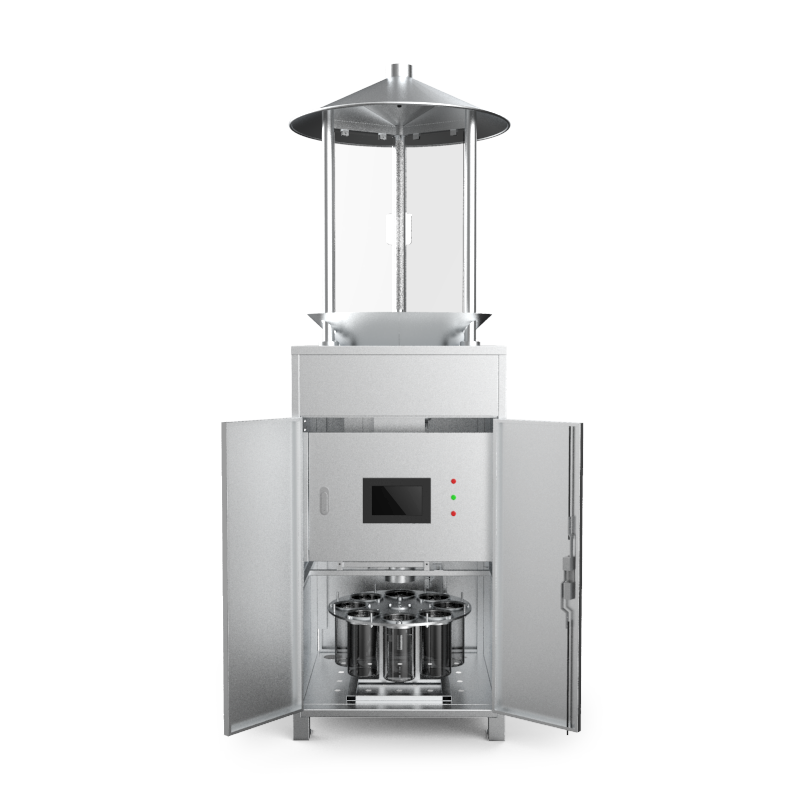

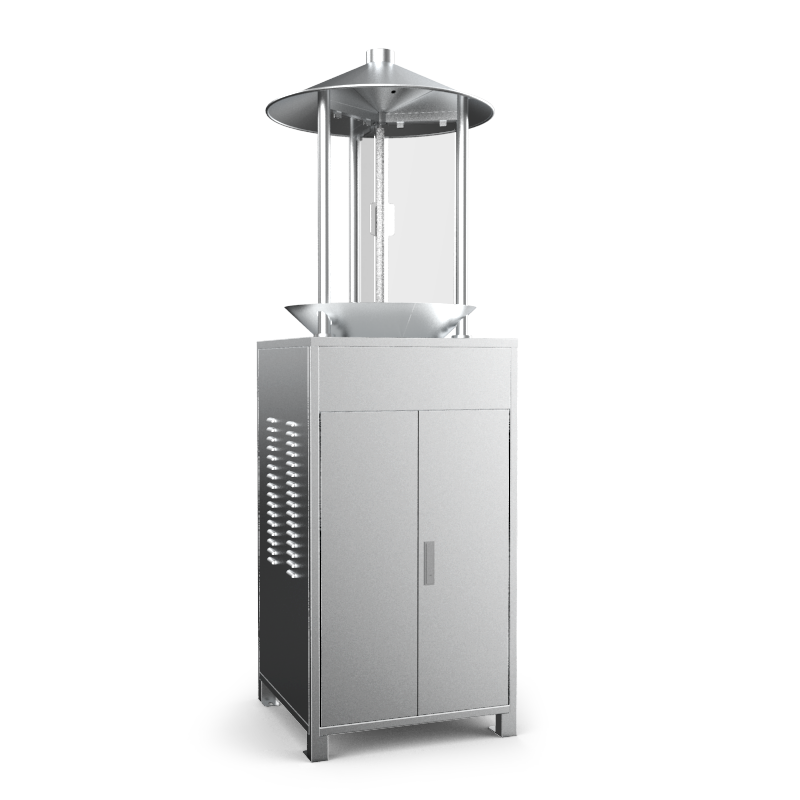

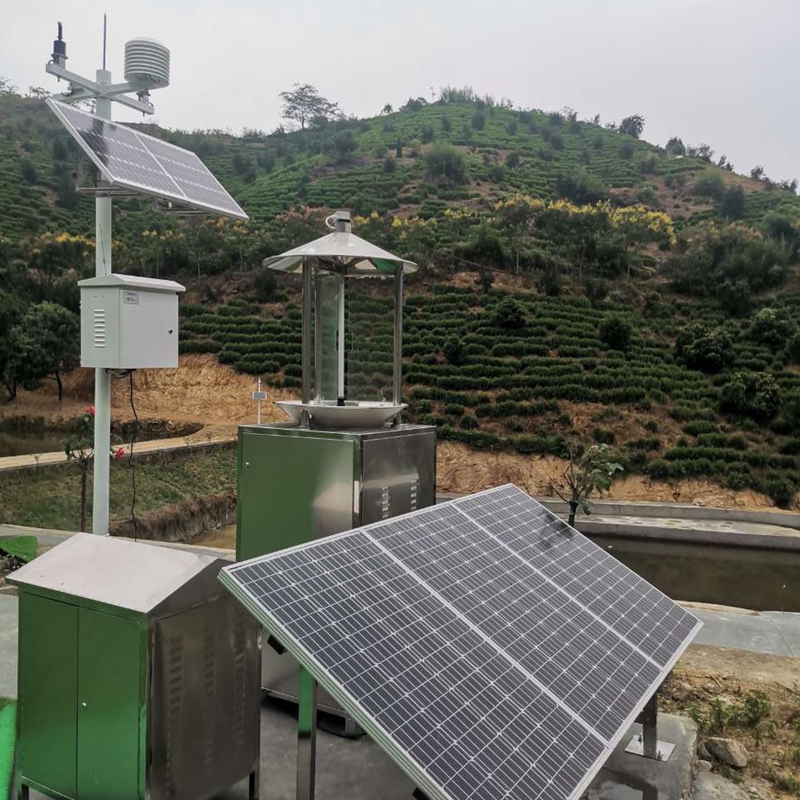

The solar powered automatic pest detection and reporting lamp is specially developed for agricultural and forestry pest detection and reporting. This lamp utilizes modern light, electricity, and CNC technology to achieve functions such as far infrared automatic processing of insect bodies, automatic conversion of insect receiving bottles, and automatic operation of the entire lamp. Automatically complete system operations such as trapping, killing, collecting, packaging, and drainage without supervision. Multiple sensor interfaces such as wind speed and direction, environmental temperature and humidity, and lighting can be added, and data can be uploaded through GPRS to monitor the relationship between the environment and pests and diseases. Widely used in fields such as agriculture, forestry, animal husbandry, vegetables, tobacco, tea, medicinal herbs, gardens, orchards, urban greening, quarantine, etc.
2. Performance Characteristics
1. Comply with the GB/T24689.1-2009 Pest Detection and Reporting Lamp Standard.
2. Adopting a stainless steel overall structure.
3. Utilizing optical, electrical, and CNC technology, automatic control, compatible with ATCSP pest detection and prevention system.
4. LED display of environmental temperature, humidity, and time.
5. It can be controlled by different time periods, with automatic and manual warehouse transfers available.
6. It can also manually control functions such as warehouse transfer and insect trap light switch.
7. The automatic conversion of the insect catcher and the eight bit automatic conversion system ensure that the insects captured during 8 time periods are not confused.
8. The upper and lower layers of far-infrared insect body treatment warehouses are more effective in completing pest control and drying work.
9. Temperature control of far-infrared insect body treatment warehouse: After working for 15 minutes, it reaches 85 ± 5 ℃.
10. The Case fatality rate of far-infrared insect treatment is not less than 98%, and the insect integrity rate is not less than 95%.
11. Far infrared insect body treatment and daily storage (no need for poison bottles).
12. Automatically turn on the lights at night, turn off the lights during the day (standby), and change the working state at night without being exposed to instantaneous strong light.
13. Time period control: Set the working time period based on the living habits of target pests.
14. Rain control device switch: Automatically discharge rainwater, effectively separating rain and insects, and can also add automatic control of working status based on changes in external rainfall.
15. Stable power regulation system: can stabilize the voltage from 160V to 300V at 220V.
16. Lightning protection device: effectively prevents lightning strikes.
17. Other intelligent IoT functions can be extended according to user needs.
3. Technical Parameter
1. Power supply: Suitable for power supply voltage AC220V ± 60V. The power stabilizer isolator can ensure the output voltage AC220V ± 5V and is equipped with leakage protection device
2. Power consumption: standby state ≤ 5W; Whole lamp power ≤ 450W
3. Insect trap light source: 20W black light tube (main wavelength 365nm)
4. Impact screen: at a 120 degree angle to each other, single screen size: length 595 ± 2mm, width 213 ± 2mm, thickness 5mm
5. Lamp start performance: Start within 5s
6. Temperature control of far-infrared insect body treatment warehouse: reach 85 ± 5 ℃ after working for 15 minutes
7. Insulation resistance: ≥ 2.5M Ω
8. Lamp body size: 650mm × 650mm × 2000mm
9. Design life ≥ 10 years
