1. Product Features
The insecticidal lamp for Fall armyworm is a physical control method that uses the Phototaxis of Fall armyworm to trap and kill. The Fall armyworm insecticidal lamp uses the characteristics of pests' strong light, wave, color and sex information to set the wavelength, wave band and wave frequency of light within a specific range. It uses light in short distance and wave in long distance, and the sexual information generated by the attracted pests themselves is used to lure insects to attack the lamp. The lamp is equipped with frequency vibration high-voltage power grid to contact and kill pests, so that pests fall into the insect receiving bag under the lamp to kill pests. Widely used in agriculture, forestry, vegetables, warehousing, tea, tobacco, gardens, scenic spots, parks, schools, enterprises and institutions, greenhouses, vineyards, aquaculture, animal husbandry, etc.
2. Performance Characteristics
1. Adopting frequency vibration control technology, it complies with the national standard of frequency vibration insecticidal lamps for plant protection machinery GB/T24689.2-2009.
2. The high-voltage power grid adopts arc resistant coating material, with a wire diameter of 2mm. The pest control network adopts an internal and external dual network structure, which can effectively kill pests.
3. Equipped with an overcurrent and short circuit protection device for the power grid to prevent short circuits caused by residual insects.
4. The net spacing can be selected based on different target pests (generally ≤ 10mm).
5. According to the living habits of different target pests, automatic segmented (hourly) lure and control devices can be added.
6. Insulating column: Instantaneous high temperature resistance of 1000 ℃, corrosion resistance, high voltage resistance, continuous arcing of high-voltage power grid for 30 minutes on rainy days, and no carbonization phenomenon on the insulation column.
7. Light control technology: It can automatically turn on and off the lights according to the day and night.
8. Rain control technology: When the environmental humidity is greater than 95% RH, the frequency light can enter the automatic protection state. When the environmental humidity is not greater than 95% RH, it can automatically return to normal operation.
9. Lamp pole height: Made of high-quality stainless steel pipes, with a total height of 3 meters. Adjustable height with an adjustable range of 0.5 meters (optional).
3. Technical Parameter
1. Trap light source: Able to configure different wavelength trap light sources
2. Frequency light color: yellow; Insect catching bag: red, size: 250 × three hundred and seventy × 370mm
3. Solar cell module material: monocrystalline silicon, solar panel power: ≥ 40W, size: 630 * 550 * 30mm
4. Battery: DC12V 24Ah/maintenance free (works for 6 hours per day and can work normally in rainy weather for three consecutive days)
Size 165 * 125 * 175 mm
5. Working voltage: DC12V
6. Insulation resistance: ≥ 2.5M Ω
7. Whole lamp power: ≤ 35W
8. Lamp power: 15W multi wavelength insect trap lamp, ballast instantly activated
9. Lamp start time: ≤ 5s
10. Impact area: ≥ 0.15 ㎡
11. Grid voltage: ≥ 2300 ± 115V
12. Control area: 30-60 acres
13. Design life: ≥ 15 years
14. Lamp body size: 300 × three hundred × 630mm (excluding edges)
15. Packaging size: 320 × three hundred and twenty × 710mm, net weight of lamp body: ≤ 4kg

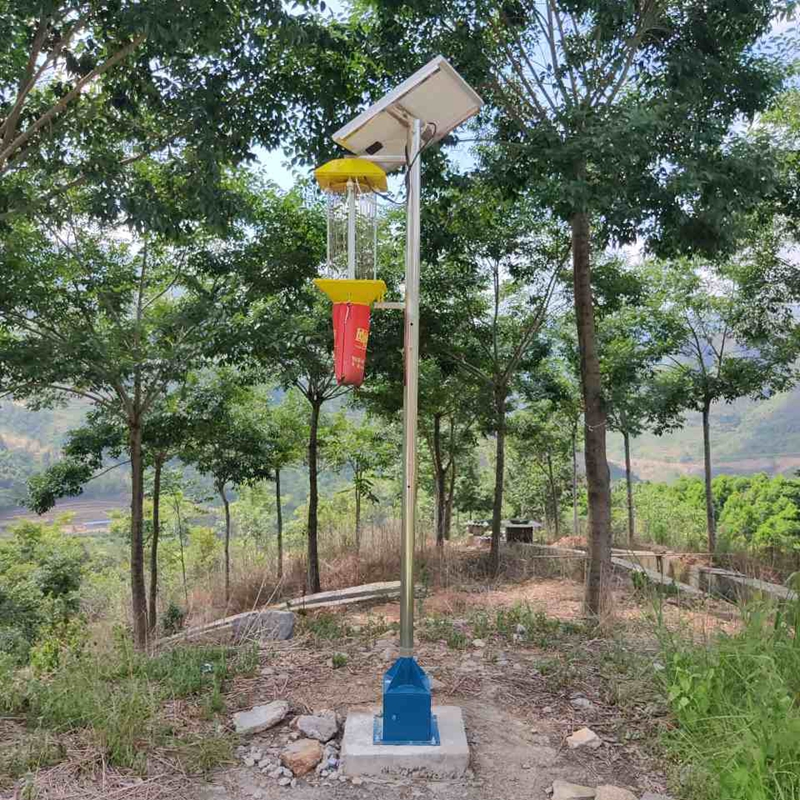

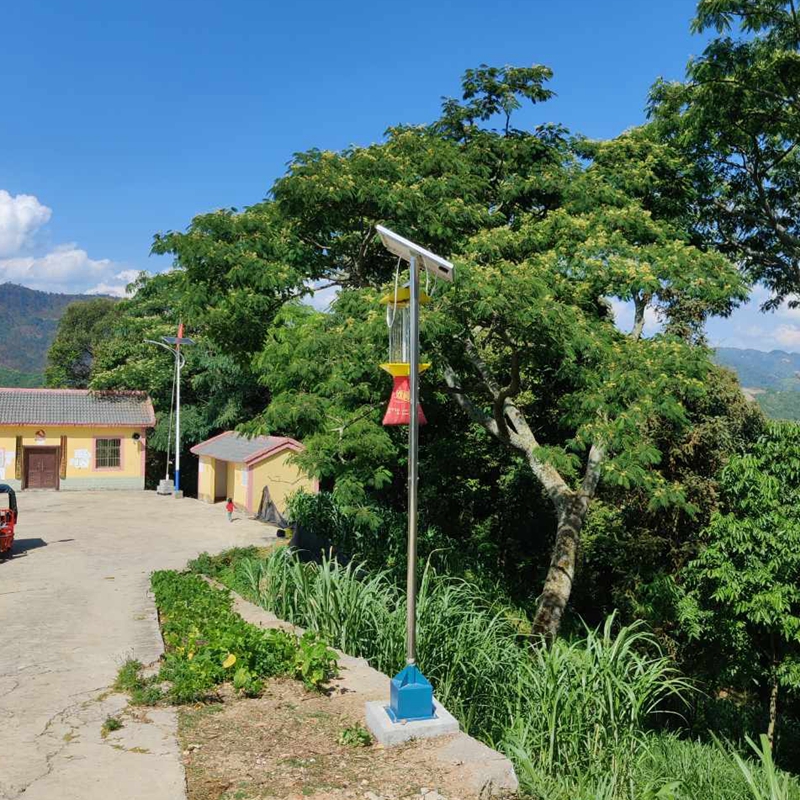

4. Application Scenario
According to experiments, on average, each lamp traps and kills thousands of pests per day, with peaks reaching tens of thousands. Reduce the number of eggs dropped by about 70%. Effectively reducing pesticide usage, reducing pollution of agricultural products, soil, and water sources, and greatly saving planting costs.
Applied in agriculture, forestry, vegetables, warehousing, tea, tobacco, gardens, scenic spots, parks, schools, enterprises and institutions, greenhouses, vineyards, aquaculture, animal husbandry, etc.
