1. Product Features

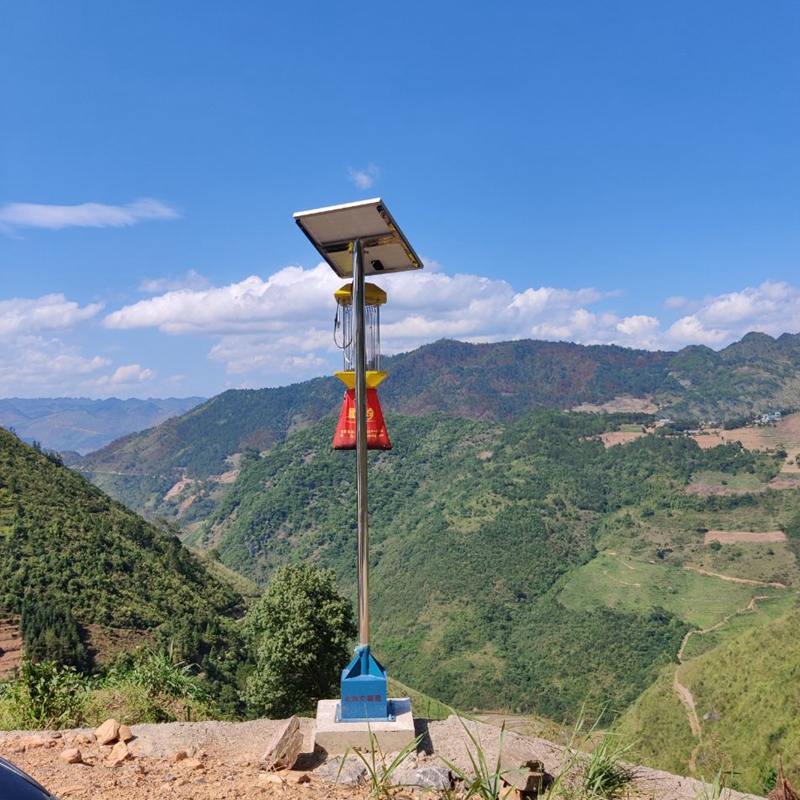

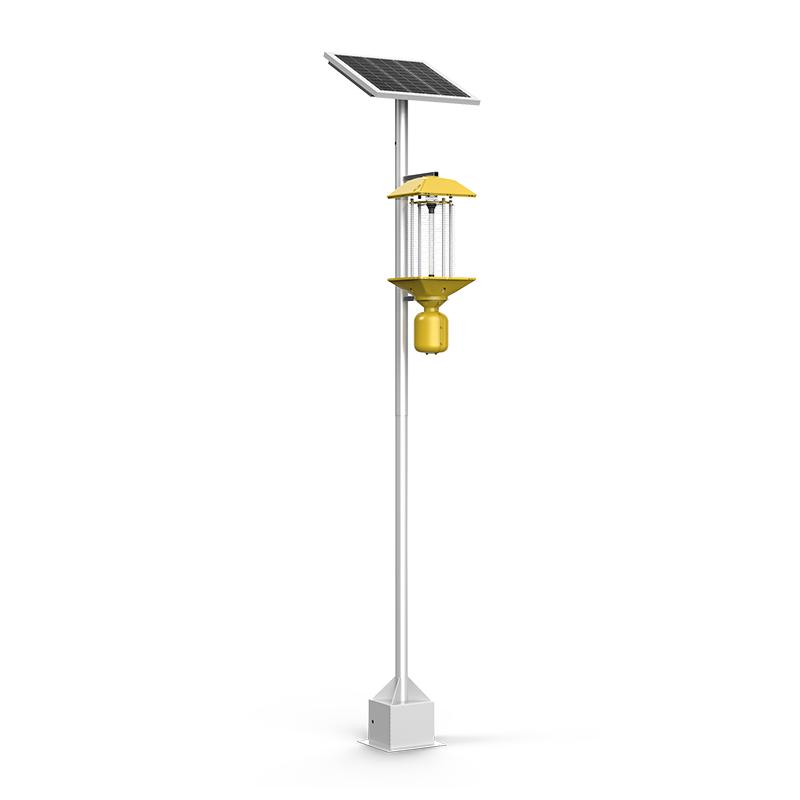

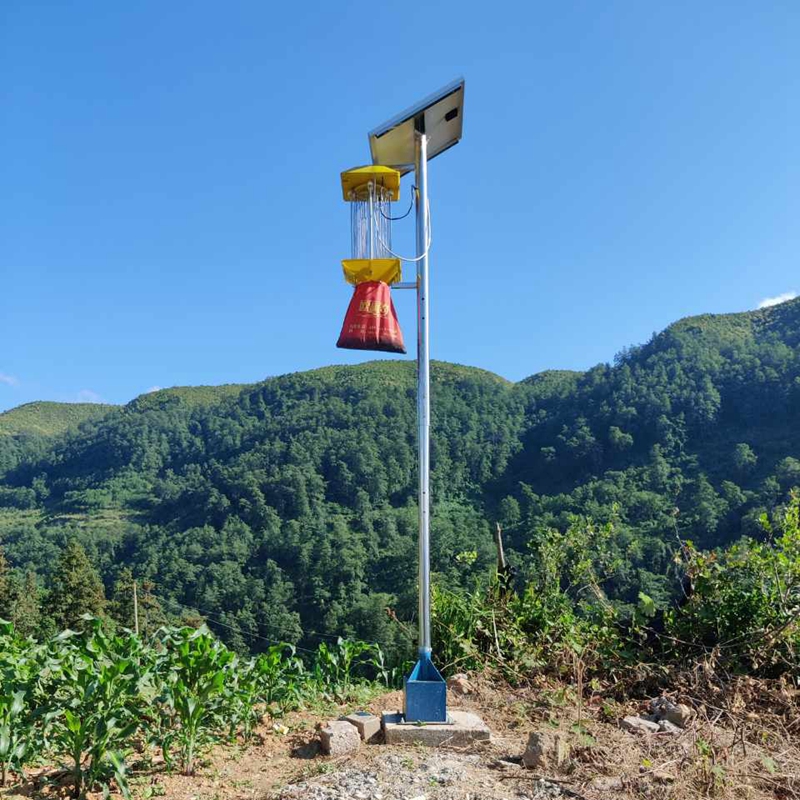

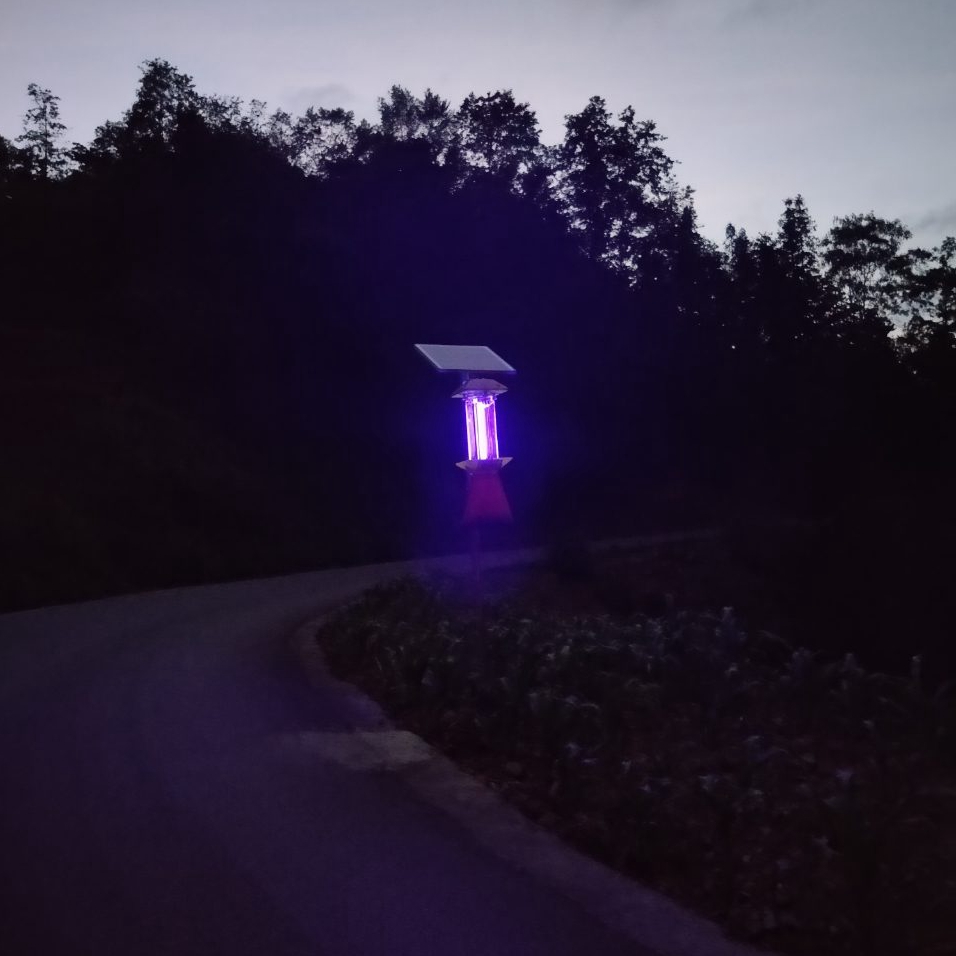

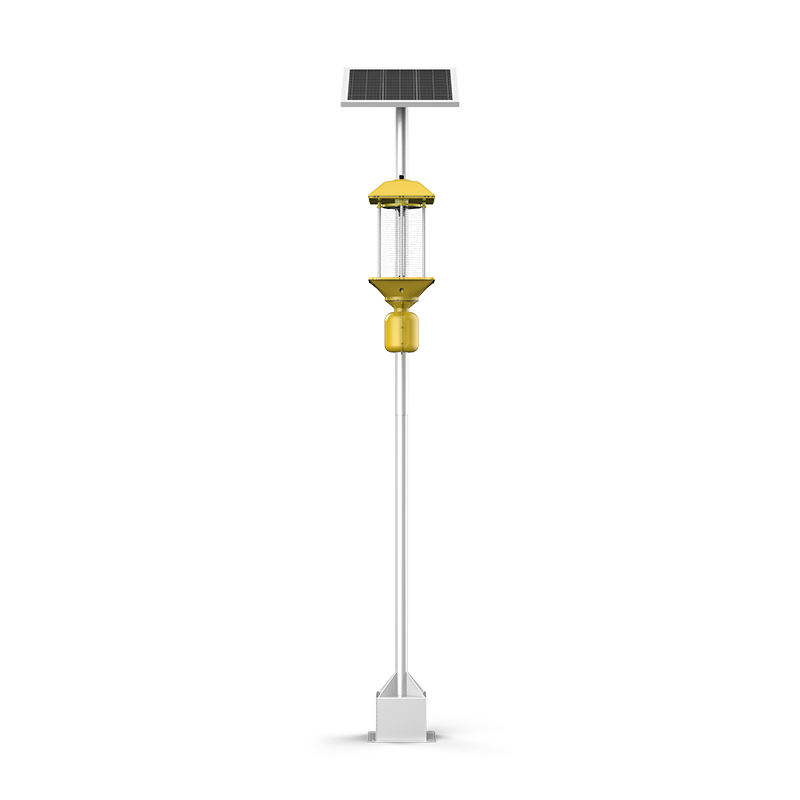

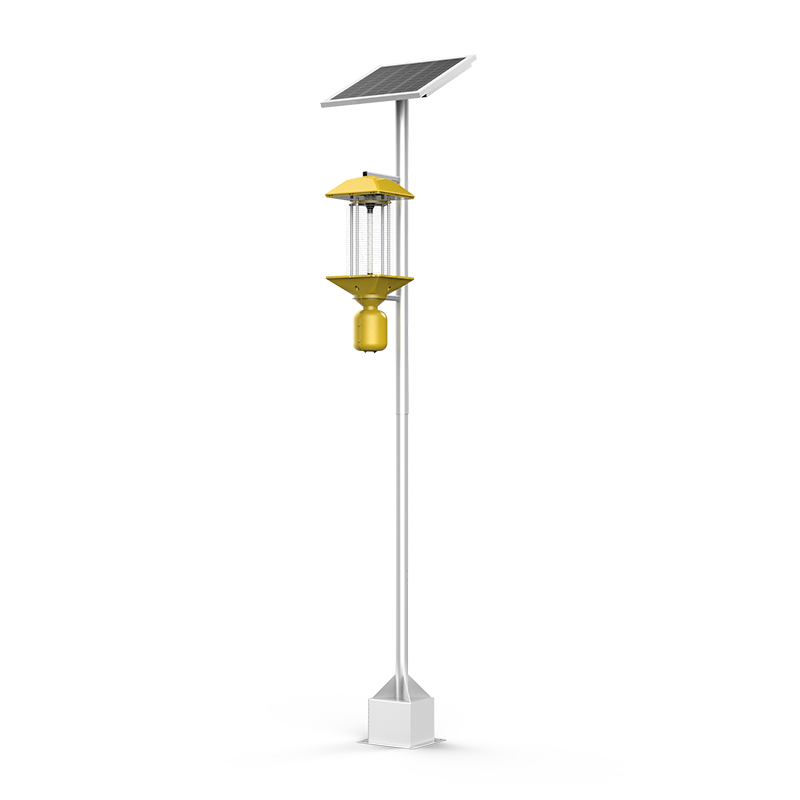

OK-TS10 solar energy Internet of Things pest killing lamp is a physical control method that uses Phototaxis of pests to trap and kill. Frequency vibration insecticidal lamp is a device that utilizes the strong phototaxis, wave taxis, color taxis, and sexual information of pests. The wavelength, band, and frequency of the light are set within a specific range, and the sexual information generated by the pests is lured into the lamp by using light at close range and wave at long distance. The lamp is equipped with a frequency vibration high-voltage power grid to contact and kill the pests, causing them to fall into the insect receiving bag under the lamp, achieving the goal of killing the pests. Widely used in agriculture, forestry, vegetables, warehousing, tea, tobacco, gardens, scenic spots, parks, schools, enterprises and institutions, greenhouses, vineyards, aquaculture, animal husbandry, etc.
2. Performance Characteristics
1. Comply with the national standard for frequency vibration insecticidal lamps for plant protection machinery GB/24689.2-2017.
2. Contact insecticidal net: It is connected with a stainless steel square vertical net, with a diameter of 2mm. It is equipped with a power grid overcurrent and short circuit protection device to prevent short circuits in the power grid due to residual insect bodies.
3. Light control technology: Automatically turn on and off the lights according to the alternation of day and night.
4. Rain control device: When the humidity is greater than 95% RH, the frequency light can enter the automatic protection state. When the humidity is not greater than 95% RH, normal operation can be restored.
5. Time control module: According to the living habits of the target insect, 8 time control modes can be set.
6. Reverse protection: With the function of accidental reverse protection of positive and negative poles, it prevents damage to the lamp body caused by improper human operation.
7. Low temperature protection: When the air temperature is below about 5 degrees Celsius (with an error of ± 5%), the pest control lamp enters automatic sleep mode, which can increase the service life of the battery.
8. Battery protection: The control circuit is designed with automatic battery maintenance function to prevent overcharging and discharging, which can reduce the service life of the battery.
9. Status display: The blue LED indicator above the insect killing lamp body displays the working status of photovoltaic and battery charging, while the red LED indicator displays the working and fault status, making it convenient for users to understand the operation of the entire lamp.
10. Wireless transmission module: Industrial grade design, using high-performance ultra-low consumption RF chips and high-speed microcontroller control, SIM card slot with ESD protection.
11. Through the platform, the working hours can be remotely set and the lights can be controlled. Each device can be positioned through GPS, displaying the distributed points on the map, making it convenient for users to view and has anti-theft functions.
12. Lamp pole height: 3 meters.
13. Control area: 40-60 acres.
3. Technical Parameter
1. Trapping light source: frequency oscillator tube (wavelength 320-680) nm
2. Frequency light color: yellow; Insect catching bag: red
3. Power supply voltage: DC 12V
4. Lamp start time: ≤ 2s
5. Power: ≤ 25W
6. Insulation resistance: ≥ 2.5M Ω
7. Impact area: ≥ 0.24 square meters
8. Grid voltage: ≥ 2300V
9. Solar panel component: monocrystalline silicon solar panel, power 40W
10. Battery: DC12V/24Ah maintenance free gel battery
11. Packaging size: (320 × three hundred and twenty × 710) mm, net weight of lamp body: ≤ 4kg
12. Lamp body size: (300 × three hundred × 630) mm (excluding edges)
13. Design life: ≥ 5 years
14. Insect catching bag size: (250 × three hundred and seventy × 370) mm
4. Platform Parameters
1. The device can display the distributed points on the map through GPS positioning, which is convenient for users to view and has anti-theft function.
2. Through the platform, the working time of the lights can be remotely set and the lights can be controlled to turn on or off.
3. You can view the switch mode, timing duration, lamp status, light control, rain control, temperature control, tipping, signal strength, and other working status information of the light, accurately understand the real-time working situation of the equipment, and analyze, warn, and diagnose equipment faults.
4. It can display real-time air temperature, humidity, number of electric shocks, timing duration, charging voltage, current, latitude and longitude values, as well as the reported time.
5. The air temperature and humidity data and the number of pests killed per hour can be displayed in real time, in the form of charts and Line chart, so that users can more accurately analyze and warn the occurrence trend of pests based on the occurrence of pests.
