1. Product Features

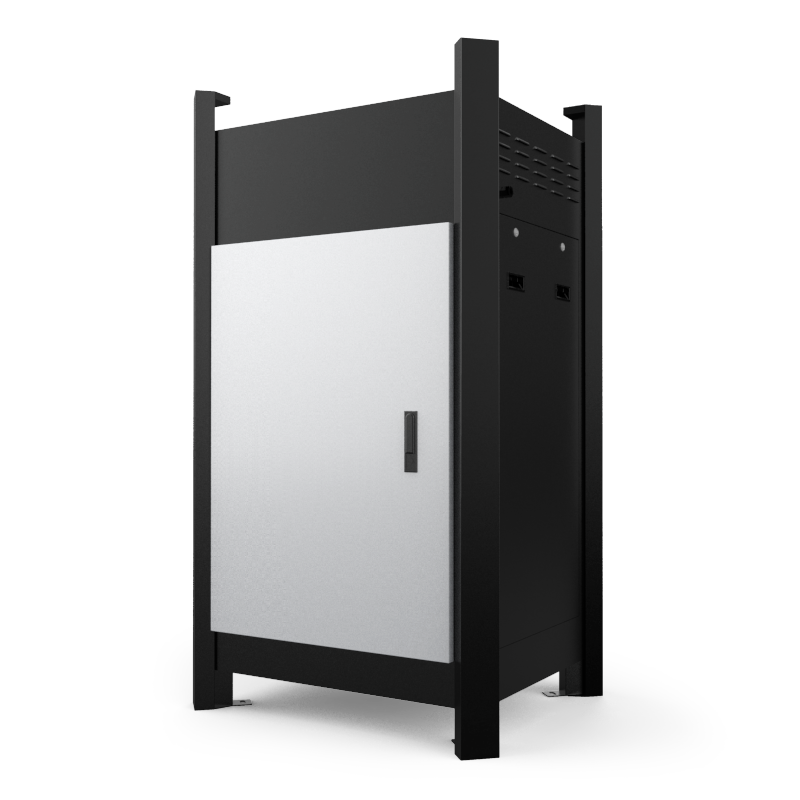

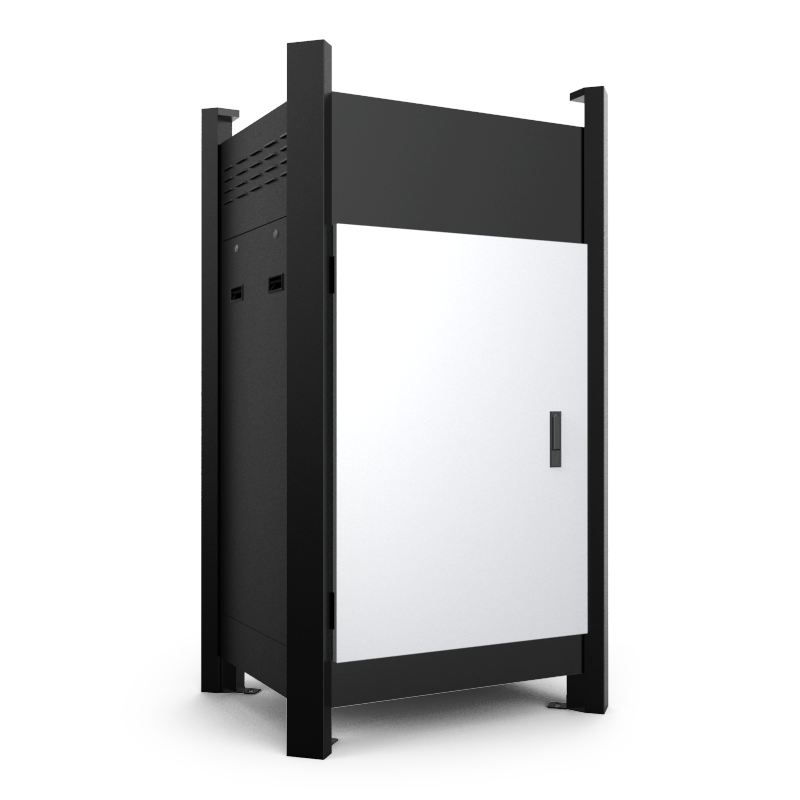

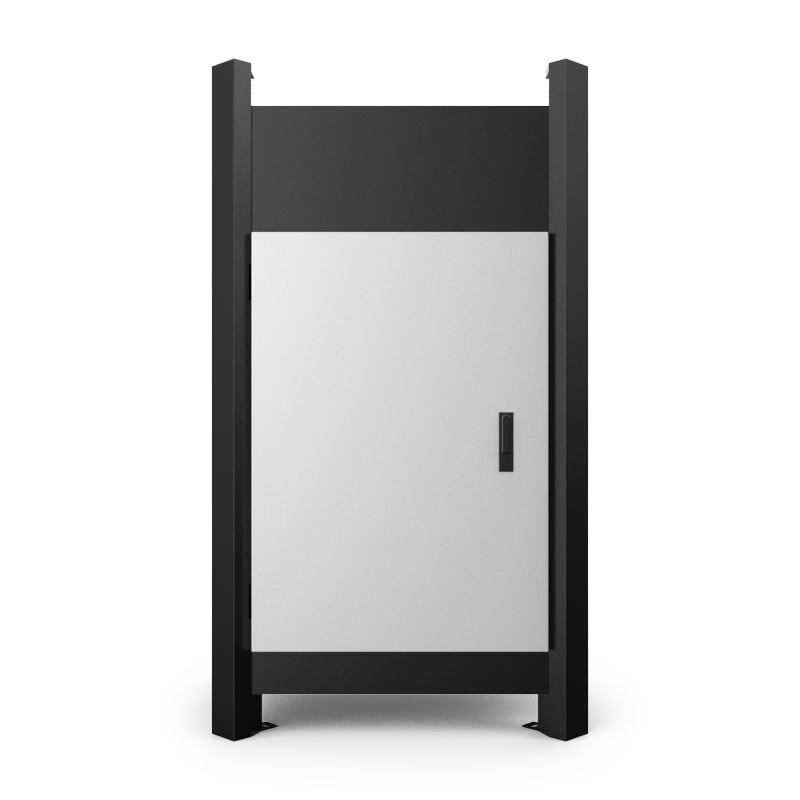

Rice blast can occur throughout the entire growth period of rice, causing damage to seedlings, leaves, panicles, nodes, etc., known as seedling blast, leaf blast, panicle blast, and node blast, resulting in a decrease in rice yield. The rice blast monitoring instrument is a new type of rice blast monitoring equipment that uses intelligent spore capture microscopy imaging. The system collects the growth environment of the rice Growing region, and predicts the incidence of rice blast according to the system's built-in model. At the same time, the built-in rice blast spore capture device provides an unmanned and visual verification method for the occurrence of rice blast by collecting the spore stock and diffusion dynamics of the disease. This equipment mainly consists of spore capture device, spore carrier device, image acquisition device, network transmission module, power supply and lightning protection system. Realize remote automatic capture of rice blast spore information, automatic rotation of glass tape, automatic collection, automatic microscopic imaging and photography, automatic uploading of image data, automatic operation, and other functions. At the same time, real-time upload images of rice blast disease to designated network platforms to form a dynamic database of spore occurrence status, providing a large amount of data support for studying the occurrence trend of rice blast disease. Provide services for modern agriculture, meet the needs of disease prediction and specimen collection, and timely prevent and control the occurrence of diseases.
2. Performance Characteristics
1. Stainless steel spray molded shell, 15 inch ultra large high-definition capacitive touch screen, Windows operating system, with good human-computer interaction interface.
2. A 1000 magnification micro imaging system with 12 million pixels can automatically perform high-definition micro photography of captured bacterial spores, and the clarity of the captured images can meet the requirements of manually identifying the types of bacterial spores.
3. The device automatically captures bacterial spores 24 hours a day, automatically takes photos of the captured bacterial spores, and automatically selects the best image to upload.
4. The fully intelligent automatic microscopic imaging system can automatically adjust the camera's shooting angle, achieving omnidirectional and dead angle imaging of the glass ribbon.
5. Able to achieve automated operation throughout the entire process of loading glass ribbons, capturing bacterial spores, microscopic imaging, and recycling glass ribbons.
6. Equipped with ultra long dedicated glass carrier tape, it can meet the usage requirement of 600 days.
7. It has multiple working modes, including automatic operation mode, timed operation mode, and debugging operation mode, which can be freely switched and used.
8. Equipped with Beidou/GPS positioning function, device information can be uploaded to the platform in real-time, and current device parameters can be viewed on the map.
9. It can monitor multiple rice blast monitoring indicators such as air temperature and humidity, atmospheric pressure, wind speed, direction, and rainfall in real-time, and predict the occurrence of rice blast through the internal rice blast model of the system.
10. The device can be controlled through the platform and APP for actions such as feeding, collecting, microscopic imaging, and recycling.
11. Remote upgrade maintenance: The latest program can be automatically updated remotely without the need for manual replacement on site.
12. Multiple data access methods: You can access the platform on the PC side, view data through mobile apps, and control device actions.
13. Standard 4G communication module, optional 5G communication module.
14. Equipped with a fault self-diagnosis mechanism, equipment fault information can be reported in real-time to the remote server. After sales personnel can view equipment fault information through the platform.
15. It can be paired with an intelligent solar power supply management system, which can collect key information such as device electricity consumption, solar power generation, battery voltage, device load, current, and upload it to the server (optional).
16. Equipped with flow alarm function. The device can be bound to its corresponding traffic card through the platform, and alarm information will be automatically pushed when the traffic is abnormal.
3. Technical Parameter
1. Material: GB32080-92 stainless steel;
2. Data transmission method: 4G/5G network (optional), wired network;
3. Power supply voltage: AC 220V ± 5%;
4. Power: 200W;
5. Timing: 5 time periods can be set;
6. Glass carrier tape: length: 150M, width: 0.025M, which can meet the demand of 600 days;
7. Air collection port wind speed: 0.3~5 m/s;
8. Insulation resistance: ≥ 2.5M Ω;
9. Air temperature: -30~70 ℃, accuracy: ± 0.3 ℃
10. Air humidity: 0-100%, accuracy: ± 3%
11. Wind speed: 0-30m/s, accuracy: ± 0.1m/s
12. Wind direction: 0-359 ° Accuracy: ± 1 °
13. Rainfall: 0-4mm/min, error: ± 0.1mm
14. Atmospheric pressure: 0-1100hpa, accuracy: 0.1hpa
