1. Product Features
The rice stem borer is a boring pest of rice, whose larvae damage rice leaf sheaths, heart leaves, and stems, causing withered sheaths, withered seedlings, and white ears. During the mature stage, it causes damage to plants by semi withered spike like insects, leading to severe yield reduction. The Chilo suppressalis detection and reporting instrument is specially developed for agricultural and forestry insect situation detection. This lamp utilizes modern light, electricity, and CNC technology to achieve functions such as far infrared automatic processing of insect bodies, automatic photography, and automatic operation of the entire lamp. Automatically complete system operations such as trapping, killing, taking photos, collecting, and drainage without supervision. Multiple sensor interfaces such as wind speed and direction, environmental temperature and humidity, and lighting can be added, and data can be uploaded wirelessly to monitor the relationship between the environment and pests and diseases. Widely used in the field of agricultural rice cultivation.
2. Performance Characteristics

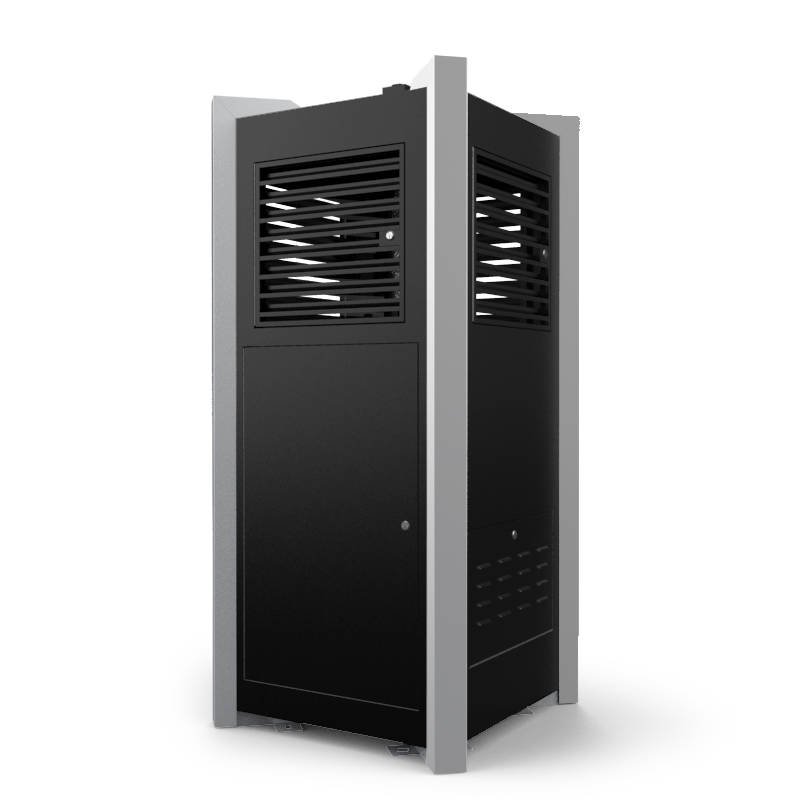

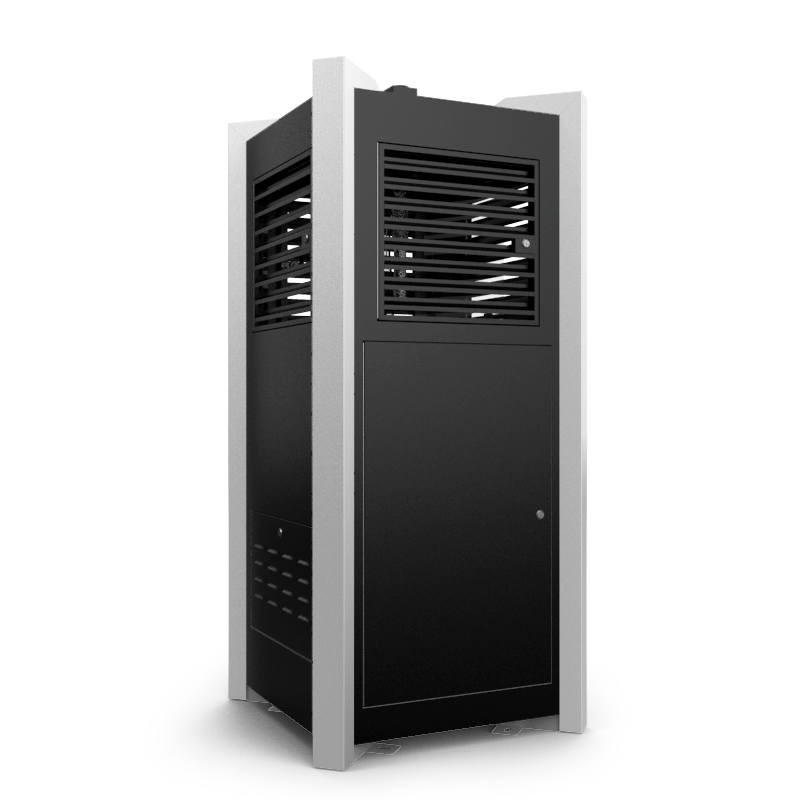

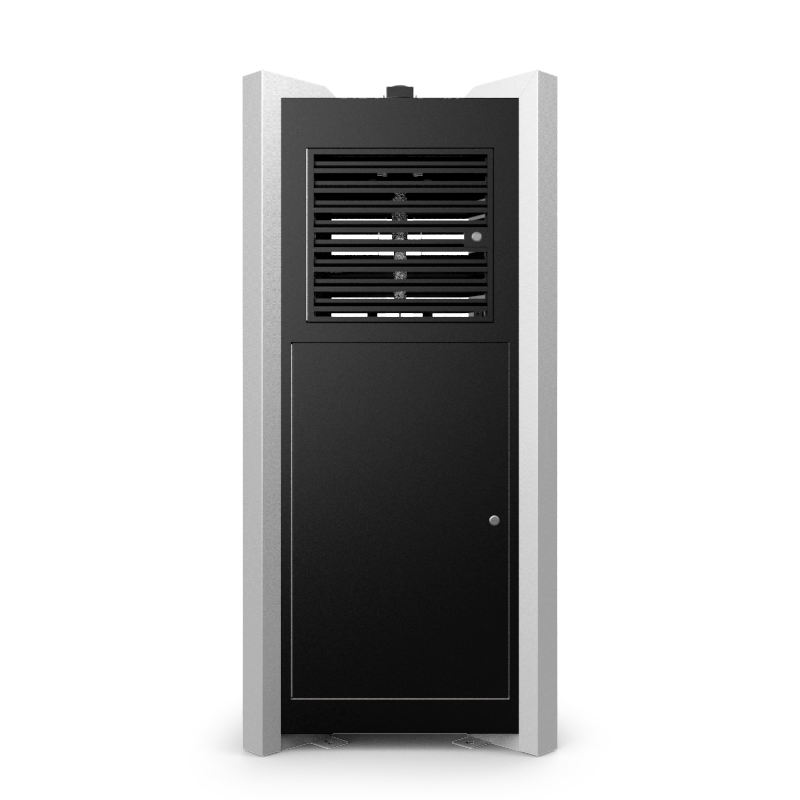

1. The overall structure adopts a stainless steel spray plastic shell design.
2. Adopting optical, electrical, and CNC technologies for automatic control.
3. Color 7-inch Chinese LCD capacitive touch screen operation; It can be set and controlled in different time periods, and can be taken automatically or manually; Intelligent control of Android system, displaying environmental temperature, humidity, and time.
4. The reporting lamp is equipped with a built-in 1200W pixel image acquisition device, which can collect real-time insect body images on the receiving tray through the camera.
5. The insect body is scattered and laid flat on the receiving tray, and the trapped insect body is subjected to vibration dispersion and leveling treatment.
6. The instrument is equipped with a built-in grating counting device (non image recognition counting), which can record the number of insects in real-time and upload them to the platform.
7. It has an automatic cleaning function, which can sweep the captured insect bodies away from the shooting area and enter the insect body collection bin.
8. Various data and alarm parameters of the instrument can be uploaded to a remote server through the network for easy maintenance and management.
9. With built-in GPS and Beidou positioning functions, you can view data such as device sites in the map.
10. The platform can control functions such as insect trap light switch, heating tube switch, cleaning of pest control and drying silos, and vibration motor switch.
11. The upper and lower layers of far-infrared insect body treatment warehouses can more effectively complete pest control and drying work.
12. Temperature control of far-infrared insect body treatment warehouse: After working for 15 minutes, the temperature reaches 85 ± 5 ℃, and the treatment time can be adjusted arbitrarily.
13. The Case fatality rate rate of far-infrared insect treatment shall not be less than 98%, and the insect integrity rate shall not be less than 95%.
14. Multi wavelength insect trap light source, with a trap lamp power greater than 20W.
15. Light control: Automatically turn on the lights at night, turn off the lights during the day (standby), and work at night without being affected by instantaneous strong light to change the working state.
16. Time period control: Set the working time period based on the living habits of target pests.
17. Rain control system device: A separate drainage system structure that automatically discharges rainwater, effectively separating rain and insects, and ensuring that there is no accumulated water inside the box.
18. Network mode: Multiple networking methods available, including 4G, WIFI, and wired, allowing for anytime, anywhere network management.
19. You can view device data through various methods such as PC, APP, and WeChat.
20. Equipped with flow alarm function. The device can be bound to its corresponding traffic card through the platform, and alarm information will be automatically pushed when the traffic is abnormal.
3. Technical Parameter
1. Power supply: AC220V
2. Power consumption: standby state ≤ 5W; Whole lamp power ≤ 450W
3. Insect trap light source: 20W black light tube (main wavelength 365nm)
4. Impact screen: at a 120 degree angle to each other, single screen size: length 595 ± 2mm, width 213 ± 2mm, thickness 5mm
5. Lamp start performance: Start within 5s
6. Temperature control of far-infrared insect body treatment warehouse: reach 85 ± 5 ℃ after working for 15 minutes
7. Insulation resistance: ≥ 2.5M Ω
