1. Product Features

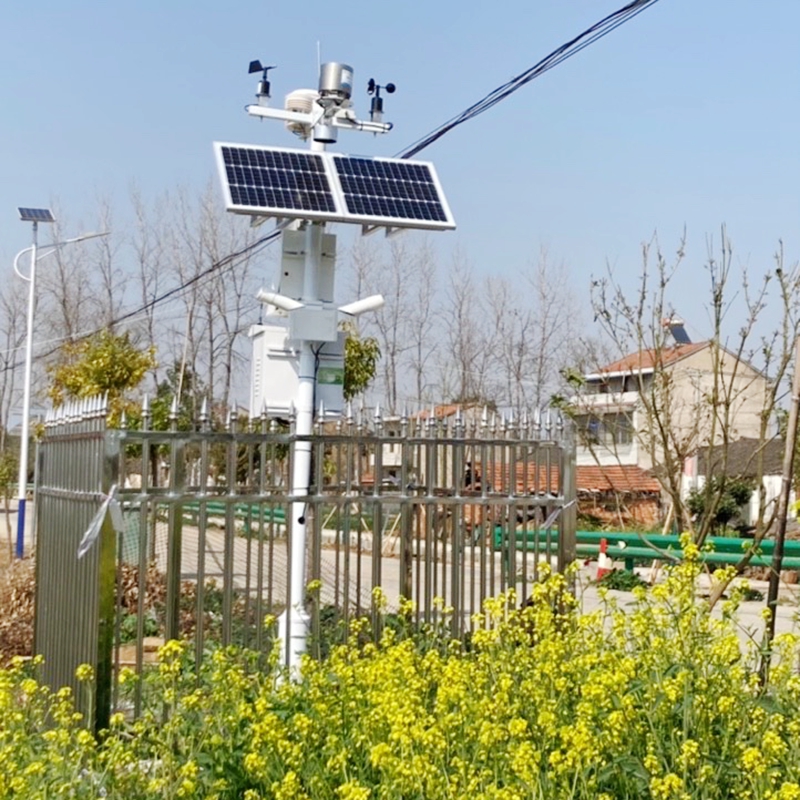

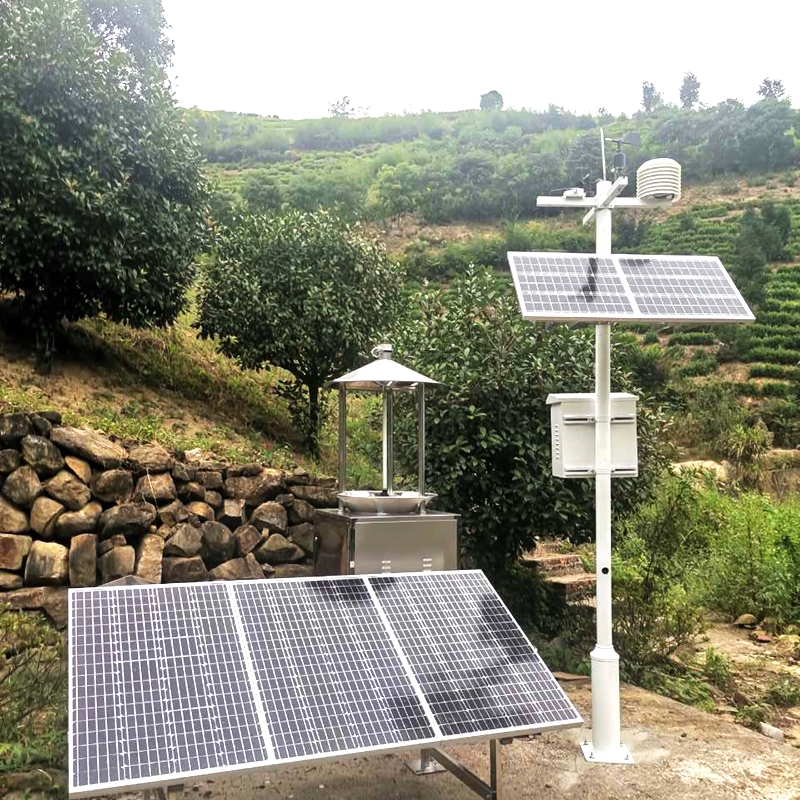

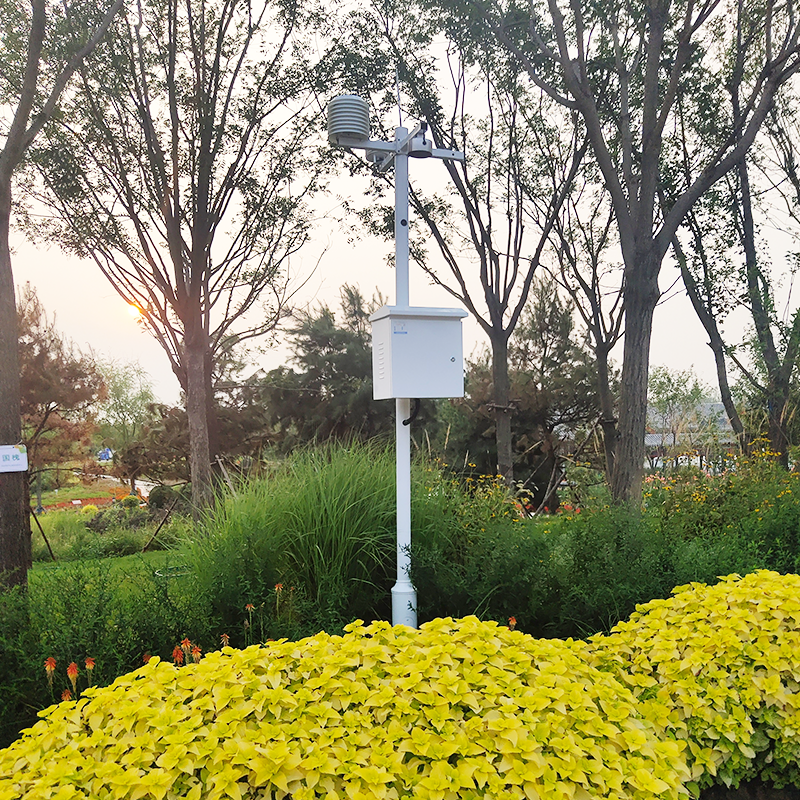

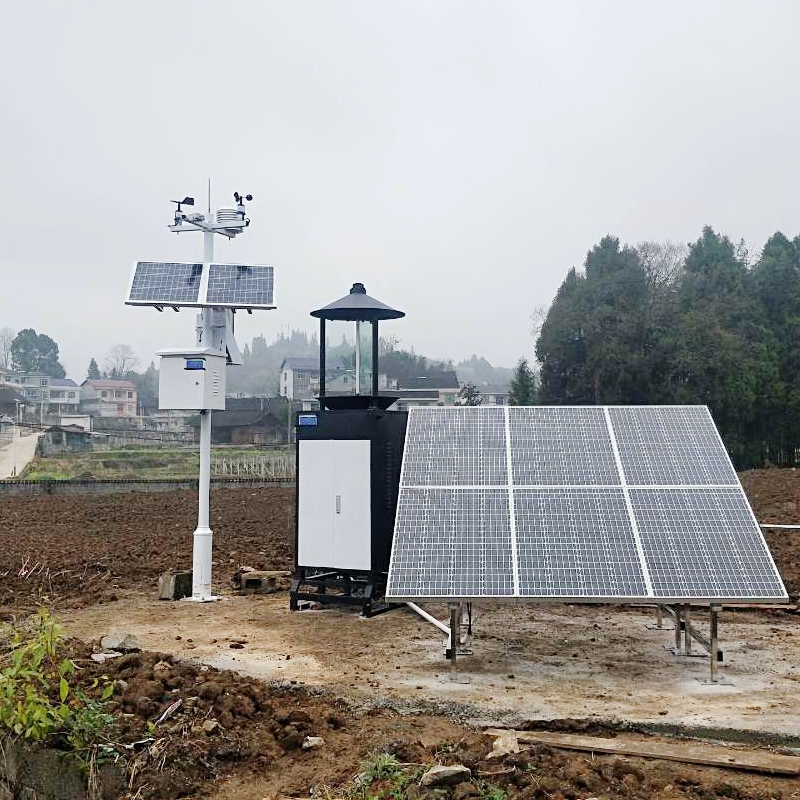

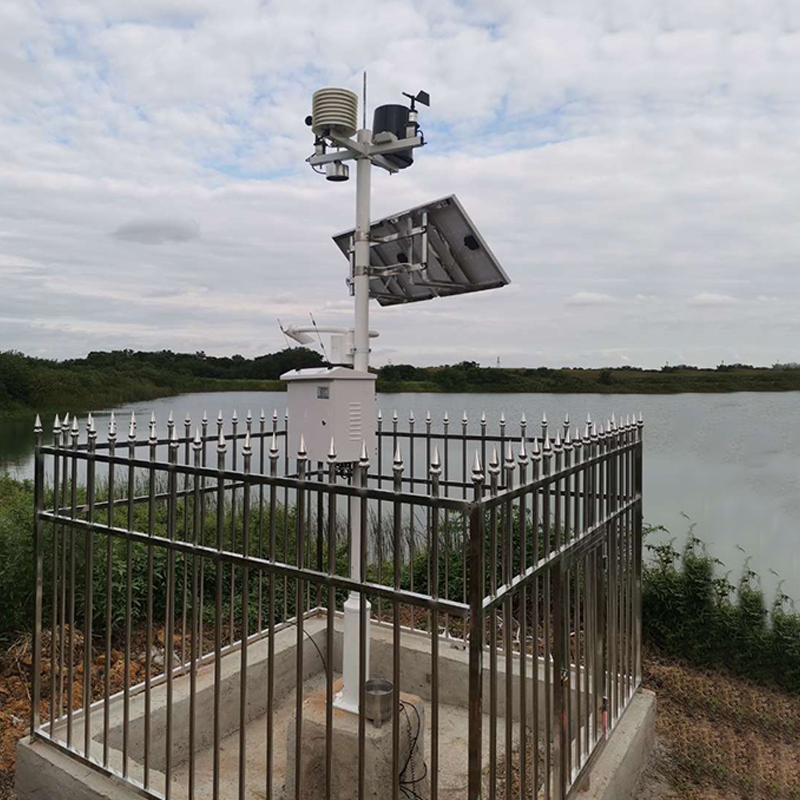

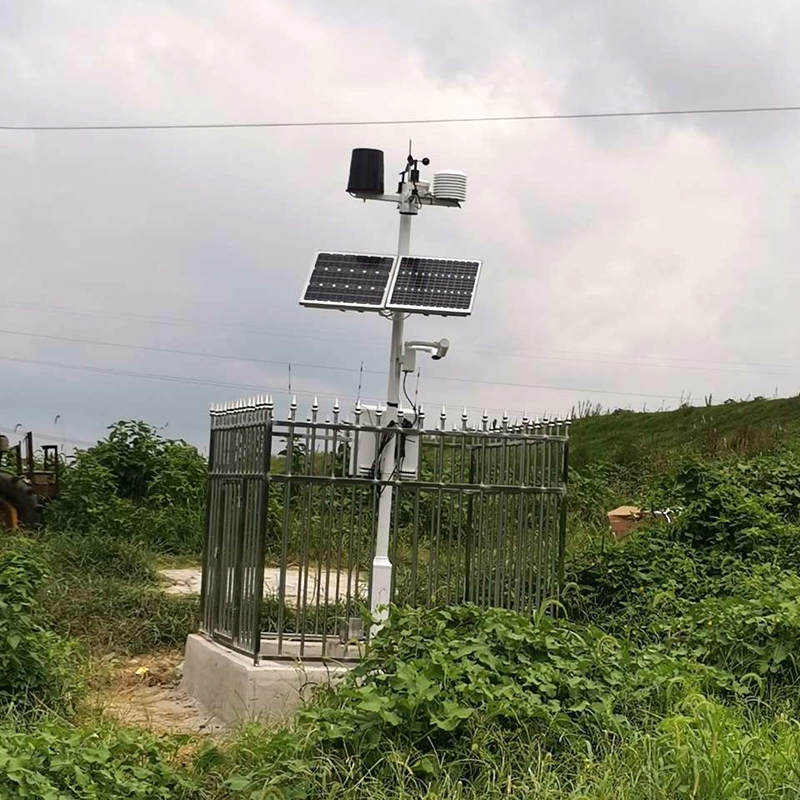

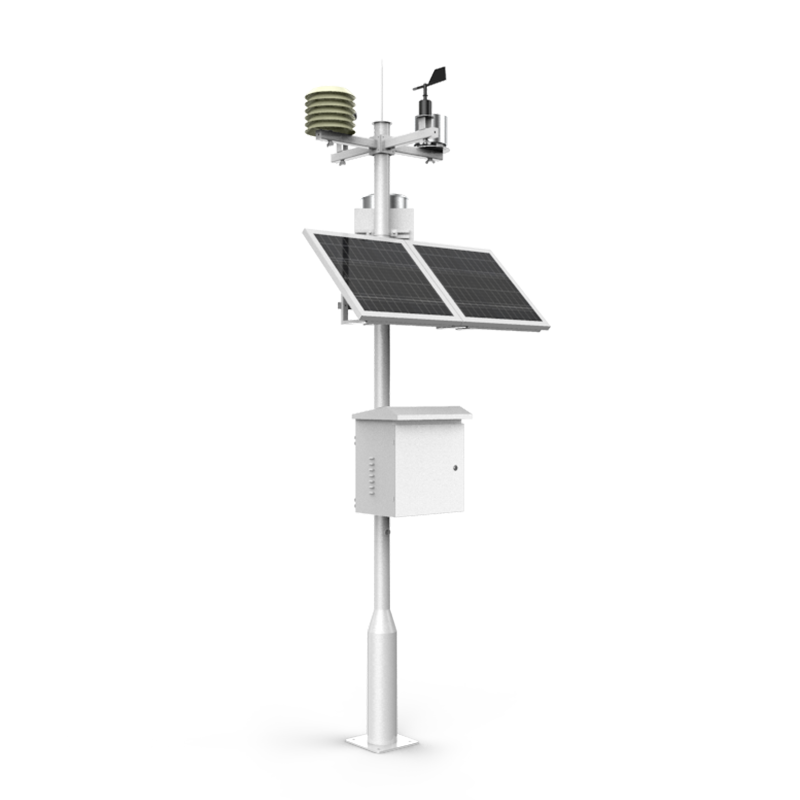

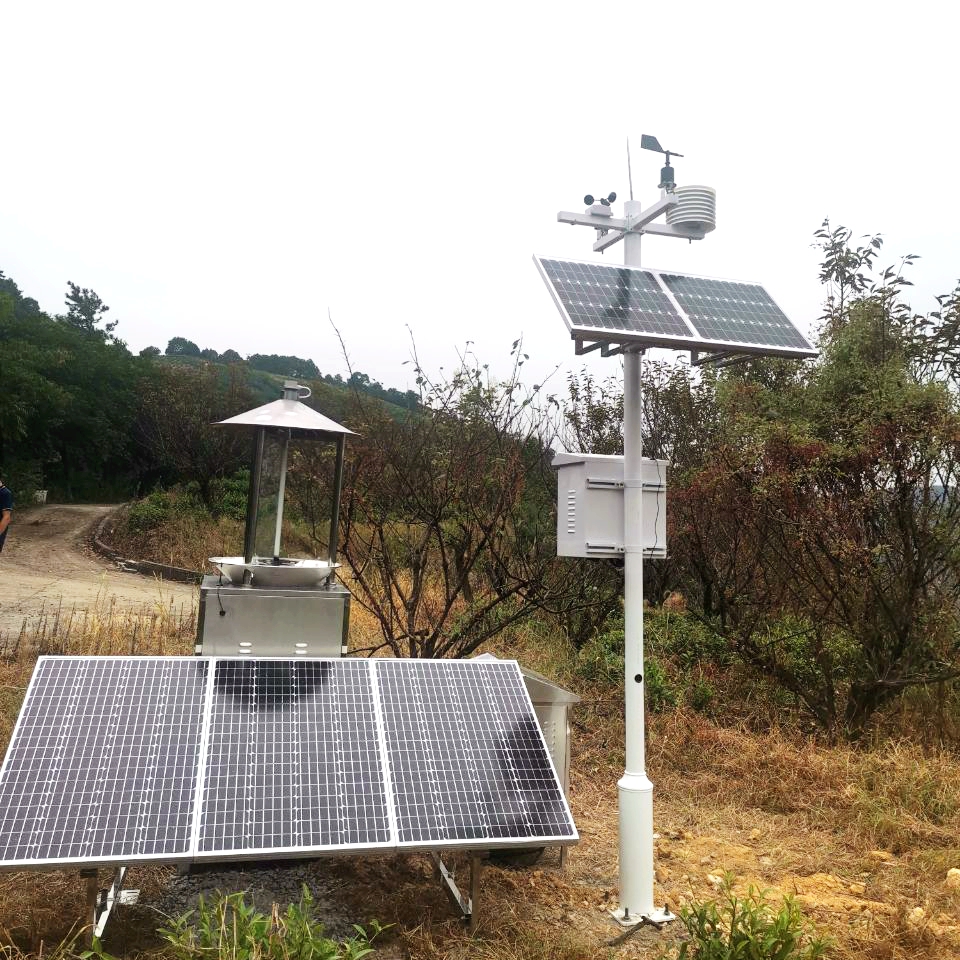

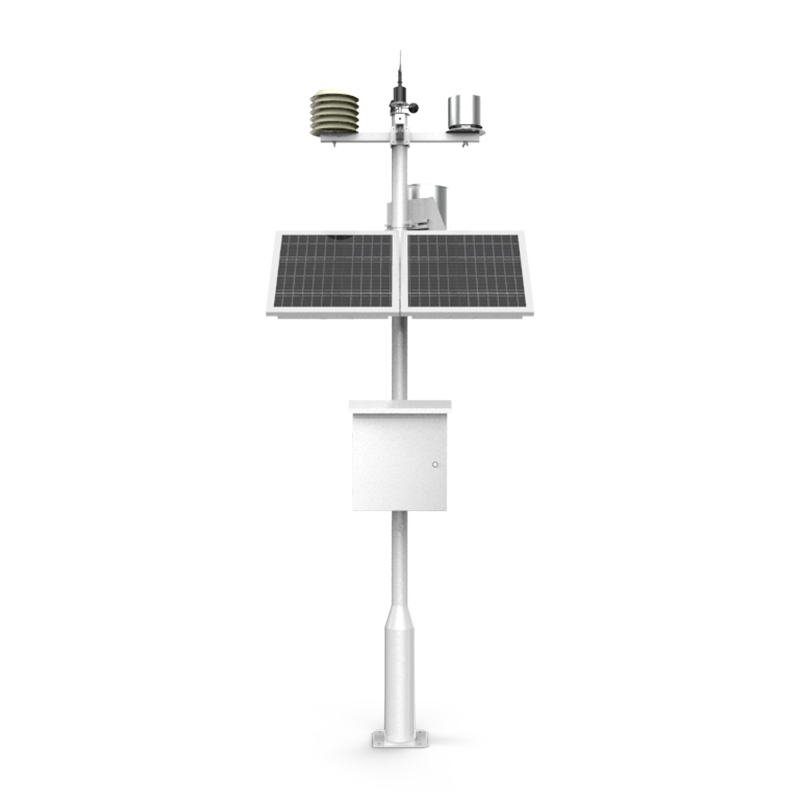

A meteorological environment monitoring station is used to conduct 24-hour on-site monitoring of meteorological factors such as wind speed, wind direction, rainfall, air temperature, air humidity, light intensity, soil temperature, soil humidity, evaporation, atmospheric pressure, etc. It can be connected to the computer through professional data collection communication cables, and the data can be transmitted to the meteorological computer meteorological database for statistical analysis and processing. Mainly used in meteorology, agriculture, geology, environment, and other fields, and suitable for field research and experimental applications.
2. Performance characteristics
1. 4.3 inch/7 inch LCD screen display, supporting touch input; Full Chinese operation menu, easy and convenient to operate.
2. Multiple parameter settings, which can set parameters such as collection time interval and server address. Data is automatically saved.
3. All collected parameters are displayed on the same screen. Automatic data collection and real-time display.
4. Equipped with a USB interface, historical data can be exported to a USB flash drive for analysis.
5. The probe has consistency, and the sensor interfaces for different meteorological parameters can be interchanged without affecting accuracy.
6. Equipped with a GPRS module, it can upload data to the remote service platform in real-time.
7. Equipped with a GPS positioning module, it can upload location information in real-time.
3. Technical Parameter
1. Air temperature: -30~70 ℃, accuracy: ± 0.3 ℃
2. Air humidity: 0-100%, accuracy: ± 3%
3. Light intensity: 0-200Klux, accuracy: ± 5%
4. Wind speed: 0-30m/s, accuracy: ± 1m/s
5. Wind direction: 0-359 °, accuracy: ± 1 °
6. Soil temperature: -30~70 ℃, accuracy: ± 0.3 ℃
7. Soil humidity: 0-100%, accuracy: ± 3%
8. Rainfall: 0-4mm/min, error: ± 4%
9. Evaporation capacity: 0-20mm/day, accuracy: ± 1%
10. Atmospheric pressure: 0-1100Hpa, accuracy: 0.1Hpa
