1、 Product Introduction

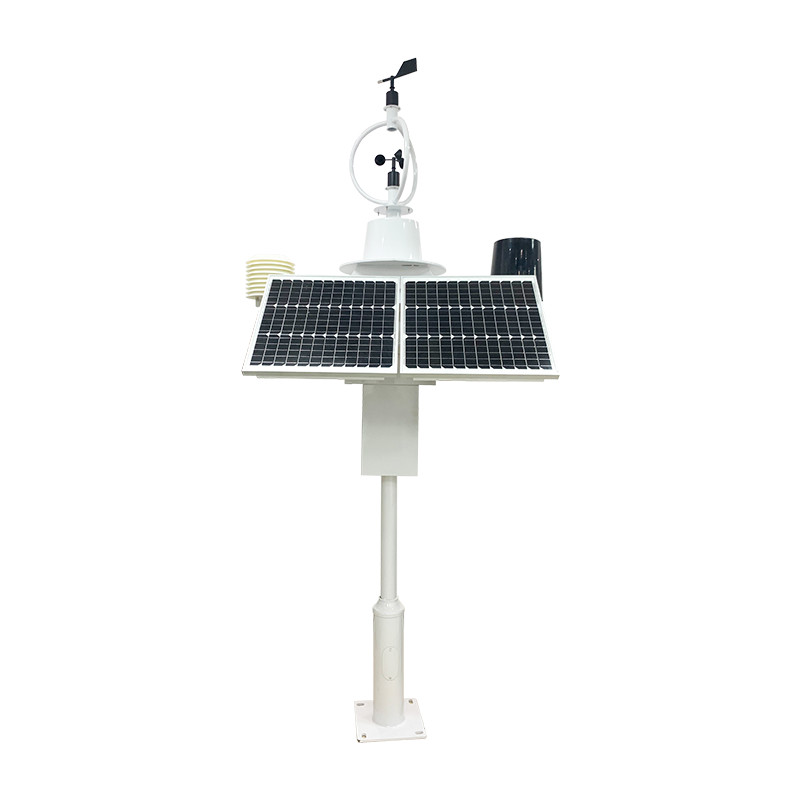

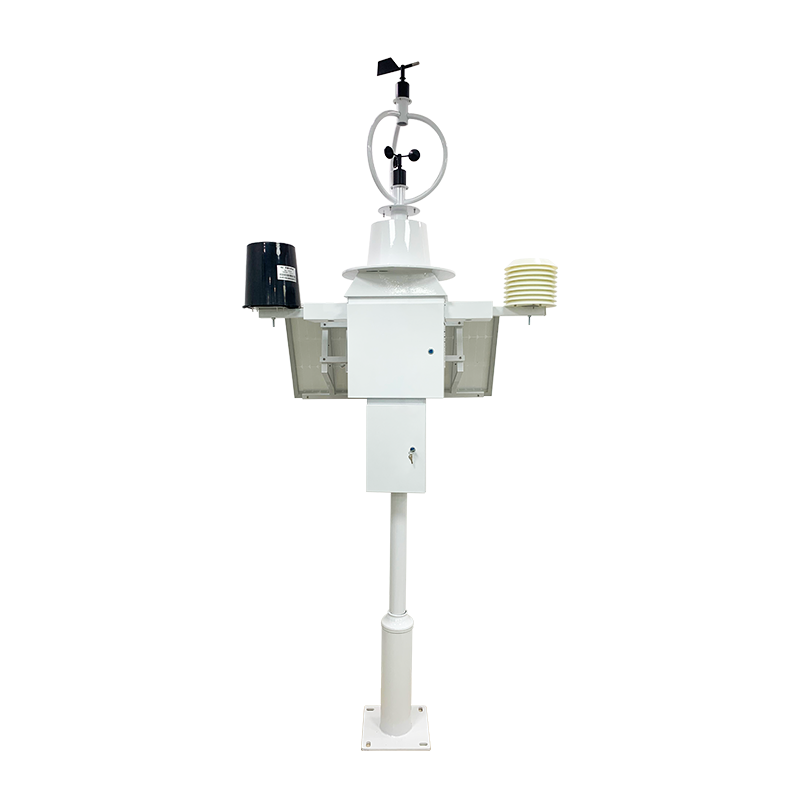

The OK-DQ10 Field Climate Monitoring Station (Scarecrow) is composed of a data acquisition terminal and various environmental sensors. The instrument can transmit the collected sensor values to a remote server or store them at the acquisition terminal for customers to download through the GPRS/WIFI network. It can also display the collected values in real-time to the on-site LED screen according to customers' needs.
2、 Performance characteristics
1. 4.3 inch LCD screen display, supporting touch input; Full Chinese operation menu, easy and convenient to operate.
2. Multiple parameter settings, which can set parameters such as collection time interval and server address. Data is automatically saved.
3. All collected parameters are displayed on the same screen. Automatic data collection and real-time display.
4. Equipped with a USB interface, historical data can be exported to a USB flash drive for analysis.
5. The probe has consistency, and the sensor interfaces for different meteorological parameters can be interchanged without affecting accuracy.
6. Equipped with a GPRS module, it can upload data to the remote service platform in real-time.
7. Equipped with a GPS positioning module, it can upload location information in real-time.
3、 Technical parameters
1. Working power supply: AC220V/50Hz or DC 12V (AC DC dual purpose);
2. Working current:<2000mA;
3. Standby current:<25mA;
4. Environmental temperature: -40 ℃ -80 ℃;
5. Relative humidity: ≤ 95% RH.
