1、 Product Introduction

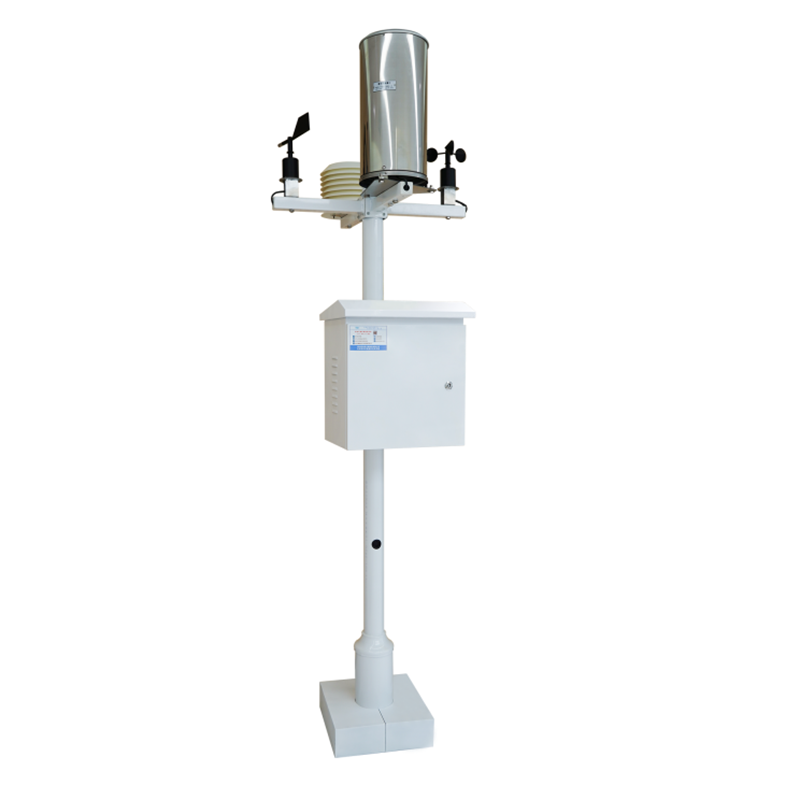

Campus Weather Station OK-SCHJ Campus Weather Station is an automatic meteorological equipment specially developed and designed for the characteristics of the campus meteorological environment. It has beautiful appearance, simple and practical installation, and can be selected according to the climate characteristics of different regions! Supporting multiple transmission methods, the instrument consists of a data acquisition terminal and various environmental sensors. The instrument can transmit the collected sensor values to a remote server or store them at the acquisition terminal for customer download through GPRS/WIFI network. The collected values can also be displayed in real-time on the on-site LED screen according to customer needs.
2、 Configurable sensors and accessories
1. Optional sensors:
Temperature and humidity sensor (including dew point and excluding dew point), air pressure sensor, light intensity sensor, photosynthetically active radiation sensor, CO2 sensor, wind direction sensor, soil salinity sensor, evaporation sensor, wind speed sensor, rain sensor, ground temperature sensor, ground humidity sensor, ph sensor, total radiation sensor, PM2.5 sensor, ammonia sensor, Sunshine duration sensor, ultraviolet radiation sensor Rain and snow sensors, page humidity sensors, net radiation sensors.
2. Other accessories:
Small weather station bracket, hub, rain box, solar power supply system (optional), LED display screen (optional).
3、 Performance characteristics
1. 7-inch full color touch screen, Android system, full Chinese operation menu.
2. One click switching allows for manual or automatic data collection.
3. Dual purpose AC and DC.
4. The data storage function is powerful, with a maximum storage capacity of 120000 pieces of data, which can be viewed on the host or exported from a USB flash drive.
5. The probe has consistency, and the sensor interfaces for different meteorological parameters can be interchanged without affecting accuracy.
6. Data can be transmitted in real-time to remote servers through GPRS/WIFI.
7. LED display screens are optional on site.
4、 Technical parameters
1. Working power supply: AC220V/50Hz or DC 12V (AC DC dual purpose)
2. Working current: ＜ 2000mA
3. Standby current: ＜ 25mA
4. Environmental temperature: -40 ℃ -80 ℃
