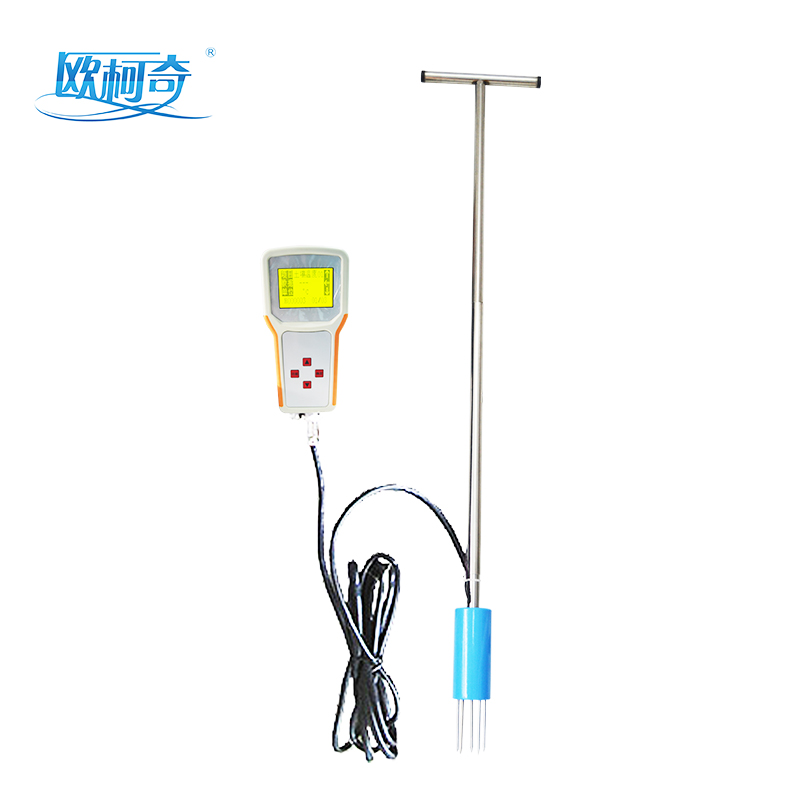

1、 Product Introduction
The OK-S3 soil moisture rapid measuring instrument is equipped with independently developed moisture sensors. Full Chinese menu operation, can automatically record data, and computer software can form curve graphs of collected data.
2、 Performance characteristics
1. Small and beautiful, easy to carry, with light touch buttons, large screen dot matrix LCD display, and full Chinese menu operation.
2. One click switching allows for manual recording or setting of sampling intervals without the computer, automatically recording and storing data.
3. Both AC and DC can be used to measure and collect data in the field at any time, and can also be stored at recording locations for a long time.
4. The data storage function is powerful, with a maximum storage capacity of 120000 pieces of data, which can be viewed on the host or imported into the computer. The data saved in the host will not be lost after an unexpected power outage.
5. The probe has consistency, and the sensor interfaces for different meteorological parameters can be interchanged without affecting accuracy.
6. After inserting the sensor into the host, there is no need to set it up, and multiple different types of sensors are automatically searched (similar to connecting a USB drive to a computer).
3、 Technical parameters of soil moisture
1. Moisture unit:% (m3/m3)
2. Moisture content testing range: 0-100%
3. Response time: ≤ 2 seconds
4. Resolution: 0.1%
5. Relative percentage error: ≤ 2%
4、 Moisture sensor specifications
1. Sensor diameter: 50mm
2. Sensor cylinder length: 110mm
3. Probe length: 65mm; Probe diameter: 4mm; Number of probes: 6 needles
4. Total length of sensor: 230mm
5. Probe material: stainless steel (anti electrolysis)
6. Sealing material: epoxy resin (black flame retardant)
7. Working temperature: -40 ℃~100 ℃
8. Standard cable length: 1.5m (can be customized according to customer needs, with a maximum length of up to 1000 meters)
9. Net weight: 1kg
5、 Instrument configuration
One portable suitcase, one Soil moisture sensor, one recorder, one handheld pole, one power adapter, one communication cable, one computer software system CD, one manual, one certificate of quality, and one warranty card.
