1、 Product Introduction
The soil moisture comprehensive rapid measuring instrument is composed of a data collection terminal and various environmental sensors. The instrument can transmit the collected sensor values to a remote server or store them at the collection terminal for customers to download through the GPRS/WIFI network.

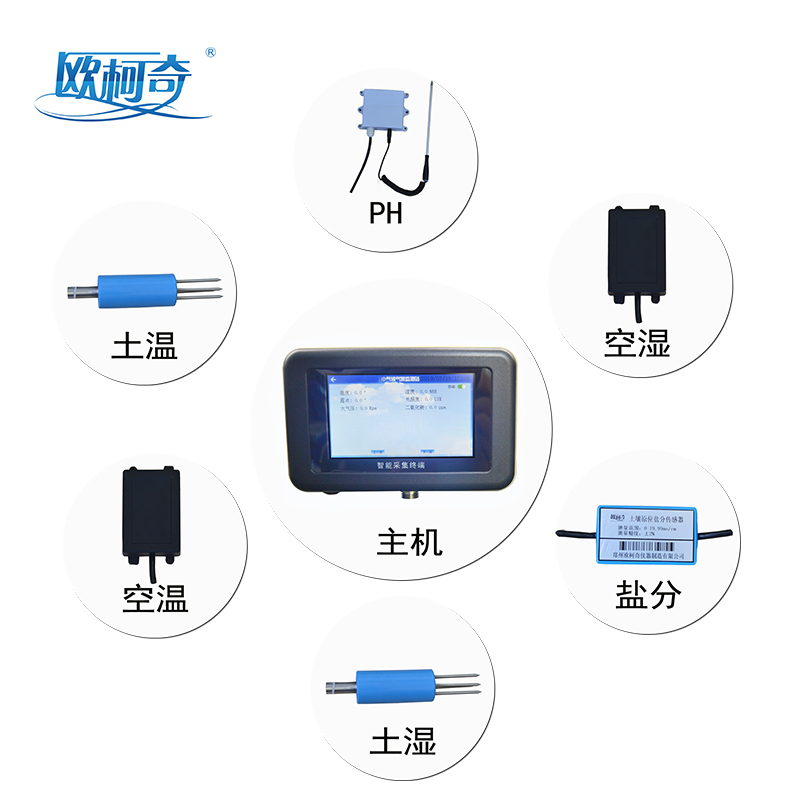

2、 Configurable sensors and accessories
1. Optional sensors:
Temperature and humidity sensor, air pressure sensor, light intensity sensor, photosynthetically active radiation sensor, CO2 sensor, wind direction sensor, soil salinity sensor, evaporation sensor, wind speed sensor, rainfall sensor, ground temperature sensor, ground humidity sensor, ph sensor, total radiation sensor, PM2.5 sensor, ammonia sensor, Sunshine duration sensor, ultraviolet radiation sensor
2. Other optional accessories:
Solar power supply system, hub, rain box, LED display screen, small weather station bracket.
3、 Performance characteristics

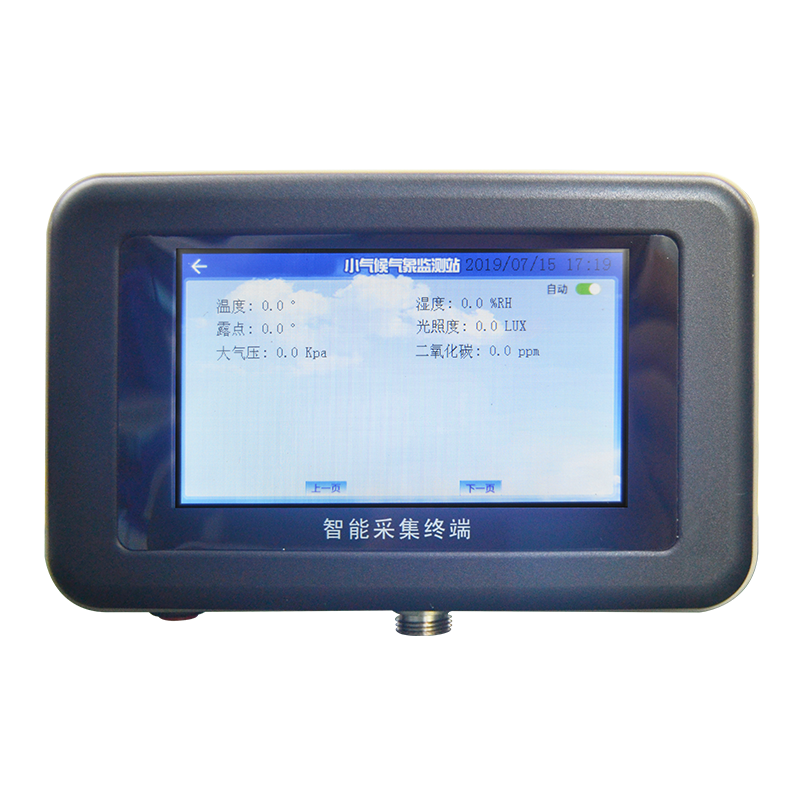

1. 4.3 inch LCD screen display, supporting touch input; Full Chinese operation menu, easy and convenient to operate.
2. Multiple parameter settings, which can set parameters such as collection time interval and server address. Data is automatically saved.
3. All collected parameters are displayed on the same screen. Automatic data collection and real-time display.
4. Equipped with a USB interface, historical data can be exported to a USB flash drive for analysis.
5. The probe has consistency, and the sensor interfaces for different meteorological parameters can be interchanged without affecting accuracy.
6. Equipped with a GPRS module, it can upload data to the remote service platform in real-time.
7. Equipped with a GPS positioning module, it can upload location information in real-time.
8. 6000mAH polymer lithium-ion battery can be used for 8 hours after a single charge.
4、 Technical parameters
1. Working power supply: AC220V/50Hz or DC 12V (AC DC dual purpose)
2. Working current: ＜ 2000mA
3. Standby current: ＜ 25mA
4. Environmental temperature: -40 ℃ -80 ℃
5. Relative humidity: ≤ 100% RH
