1、 Product Introduction

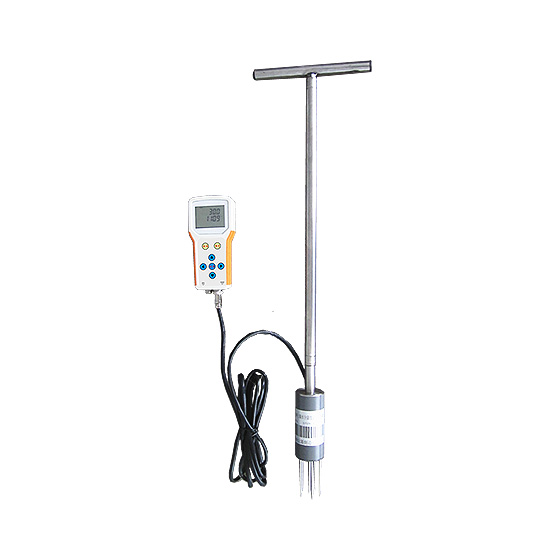

The OK-S1 soil moisture rapid measuring instrument is equipped with a self-developed integrated sensor for moisture and temperature, which can simultaneously detect soil moisture and temperature. Full Chinese menu operation, can automatically record data, and computer software can form curve graphs of collected data.
2、 Performance characteristics
1. Small and beautiful in size, easy to carry, with light touch buttons, large screen dot matrix LCD display, and full Chinese menu operation.
2. One click switching allows for manual recording or setting sampling intervals at any time without the computer, automatically recording and storing data.
3. Manual mode: The working mode is to press and save once, which can record the time and various environmental parameters pressed down at that time, and can also switch between automatic mode and manual mode at any time. It can be stopped at any time, and data can be connected to the computer. The software will automatically generate curve graphics, which can be printed.
4. Automatic mode: Set the interval time first, and the instrument can automatically record data according to the set interval time. Data can be connected to a computer, and the component will automatically generate curve graphics that can be printed.
5. Can connect to a computer for data upload, processing, and backup.
6. AC/DC dual purpose, you can collect data anytime and anywhere in the field, or you can place it at a recording location for a long time for collection.
7. The data storage function is powerful, with a maximum storage capacity of 520000 pieces of data.
8. Data saved in the host after power outage is not lost.
9. Computer software has powerful data processing functions (statistics, analysis, display, and query), which can form a curve graph of collected data for intuitive display. The collected data can also be stored as Excel spreadsheet files, which is convenient for users to save and process data, or draw bar charts, pie charts, printing, etc. The software is permanently upgraded for free.
3、 Technical parameters of soil moisture
1. Moisture unit:% (m3/m3)
2. Moisture content testing range: 0-100%
3. Response time: ≤ 2 seconds
4. Resolution: 0.1%
5. Relative percentage error: ≤ 2%
4、 Technical parameters of soil temperature
1. Temperature unit: ℃
2. Test range: -40~100 ℃
3. Accuracy: ± 0.5 ℃
4. Resolution: 0.1 ℃
5、 Moisture and temperature sensor specifications
1. Sensor diameter: 50mm
2. Sensor cylinder length: 110mm
3. Probe length: 65mm; Probe diameter: 4mm; Number of probes: 6 needles
4. Total length of sensor: 230mm
5. Probe material: stainless steel (anti electrolysis)
6. Sealing material: epoxy resin (black flame retardant)
7. Working temperature: -40 ℃~100 ℃
8. Standard cable length: 1.5m (can be customized according to customer needs, with a maximum length of up to 1000 meters)
9. Net weight: 1kg
6、 Instrument configuration
1 portable suitcase, 1 soil moisture and temperature sensor, 1 recorder, 1 set of handheld pole, 1 power adapter, 1 communication cable, 1 computer software system CD, 1 manual, 1 certificate of conformity, and 1 set of warranty card.
