1. Product Features

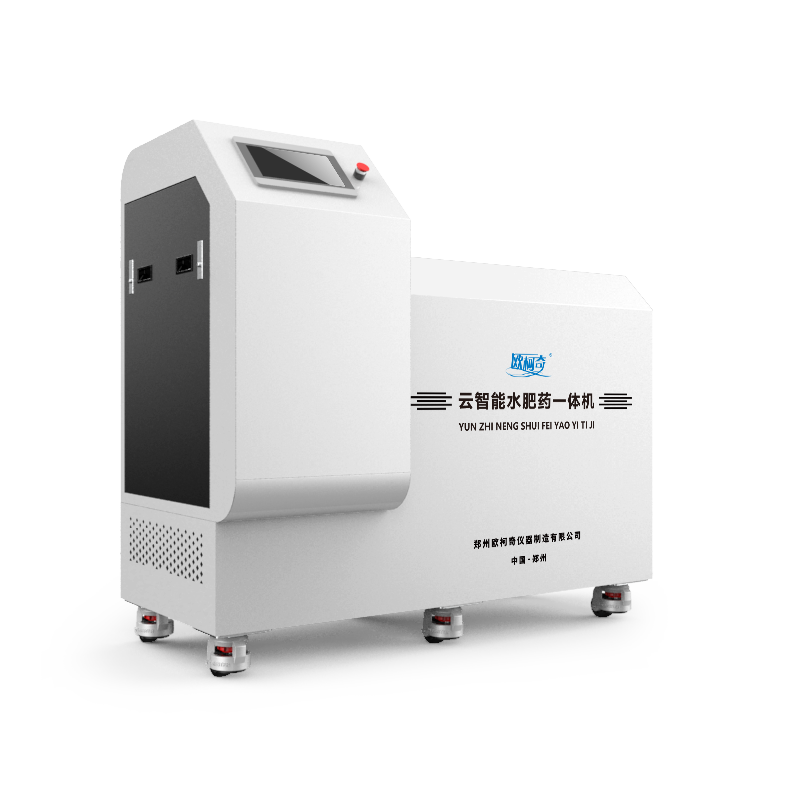

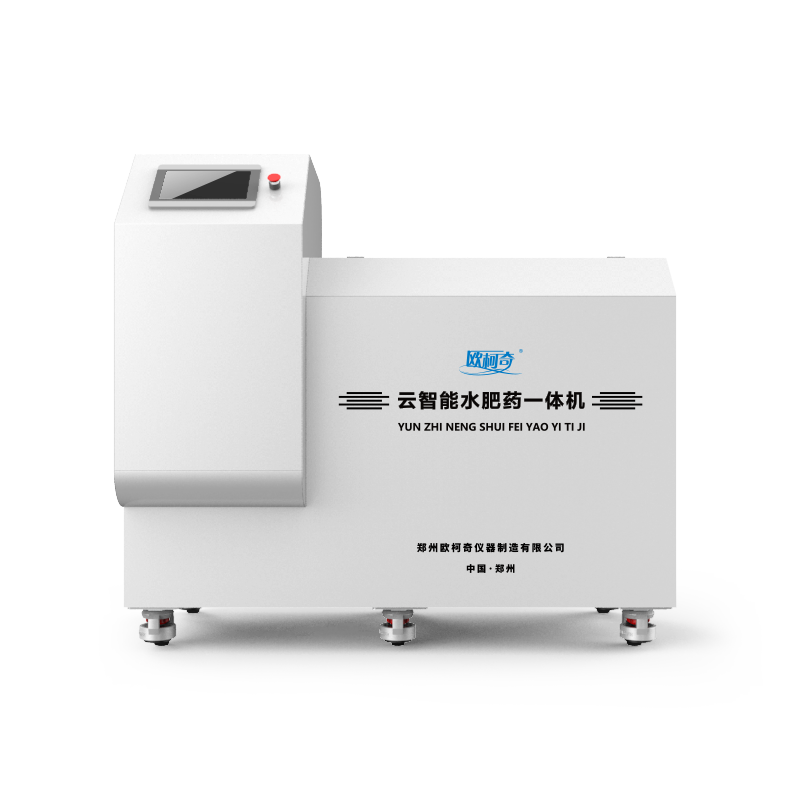

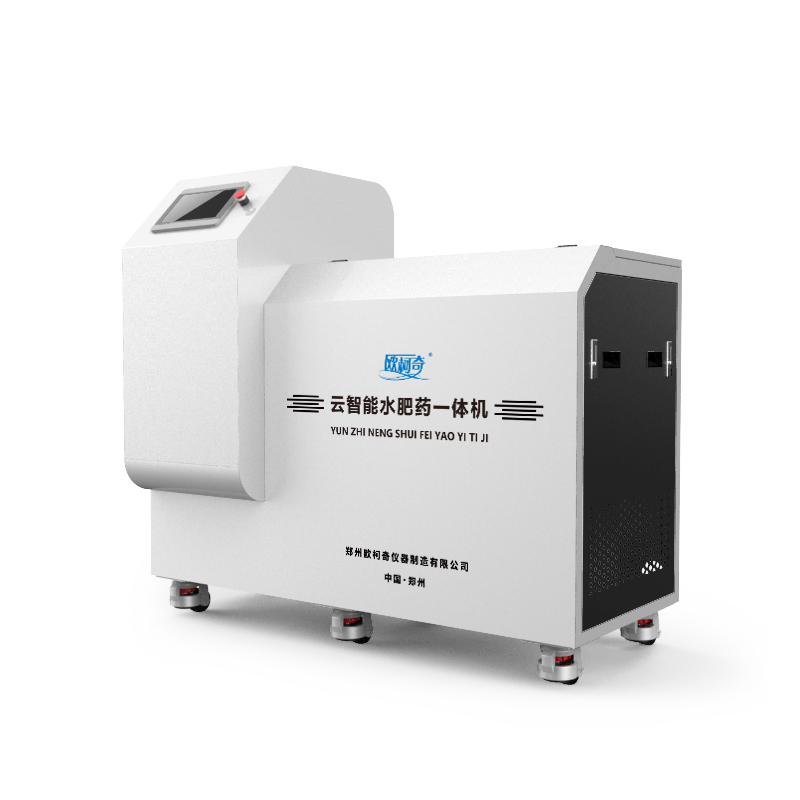

Cloud intelligent water fertilizer medicine integrated machine organically combines the latest irrigation control technology with economic and practical features to realize automatic management and distribution of water fertilizer medicine supply. The system injects various fertilizers into the irrigation pipeline in a timely, appropriate, and proportional manner based on the user's set fertilization ratio, fertilization time, application ratio and cycle mode, and EC/pH balance, automatically completing the fertilization and irrigation task, and reasonably controlling the water and fertilizer supply. Make the fertilization and irrigation process more scientific and convenient, and improve management level.
2. Performance characteristics
1. It can achieve mobile phone or computer control, wired or wireless connection to the internet, and 4G wireless communication.
2. 3 fertilization channels, 1 application channel, and 1 acid alkali solution channel. Each fertilization channel is equipped with a flow meter and automatic flow adjustment device, which can display the current fertilization flow rate, set the fertilizer speed, and collect and display the cumulative fertilization flow rate. The single channel fertilizer absorption amount reaches 600L/H.
3. Power supply system 220V, stainless steel booster fertilizer pump, power 1.1kw, flow 6m ³/ h. Lift 55m, maximum pressure 0.5Mpa.
4. 10 inch touch screen control, Chinese human-machine interface display, with functions such as data collection and storage, device control, remote access, etc.
5. The pipeline system adopts u-PVC, which is durable and durable. Corrosion resistant, UV resistant, anti-aging, all key components can be disassembled freely, and replacement of components is simple and convenient.
6. Adopting imported high-frequency electromagnetic valves, fertilization is more precise and suitable for various harsh environments. Each channel can be set separately for fertilization time, fertilization flow rate, and fertilization ratio.
7. Management personnel can adjust parameters appropriately through the interface based on actual situations, and can also manage irrigation and fertilization through human intervention based on experience, which is highly operational.
8. The equipment comes with a pressure detection system and exhaust system to maximize output efficiency.
9. Support three way mixing motor control, automatic fertilizer mixing and stirring. Equipped with timing and automatic mixing function for fertilizer injection.
10. The head system can be remotely controlled, and the water pump frequency conversion cabinet can start and stop.
11. Support bus decoder, wireless Lora valve controller, wireless 4G valve controller, and field solenoid valve support wired and wireless access.
12. Support multiple rotation irrigation settings, and be able to set the fertilization time and duration for each area, and select the fertilization channel.
13. Support the access of meteorological stations and soil moisture stations, and the monitored data can be displayed separately on the screen interface, and the meteorological change curve can be displayed.
3. Technical Parameter
1. Overall size: 1465 * 645 * 1090 mm
2. Fertilizer suction pipeline: DN20
3. Water and fertilizer machine inlet and outlet pipeline: DN32
4. Flow rate: 6 cubic meters/h, lift: 55m
5. Water pump power: 1100W
6. Working pressure: 0-0.5 MPa
7. Working voltage: 220V
8. Fertilization channel: four channels
9. Screen size: 10 inches
10. Control method: mobile/local control
11. Field control mode: wired, wireless
