1、 Product Introduction

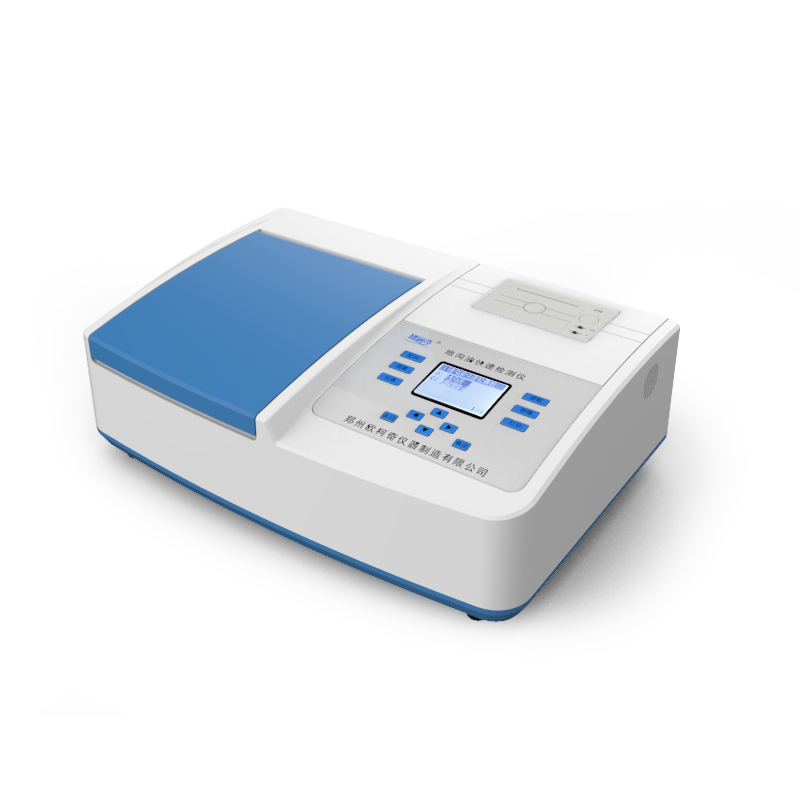

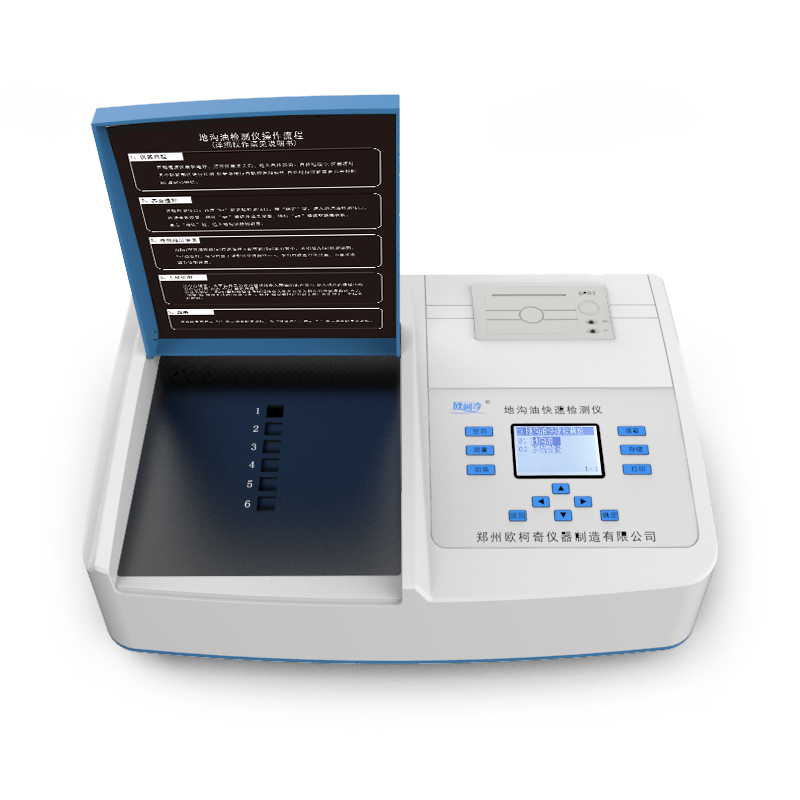

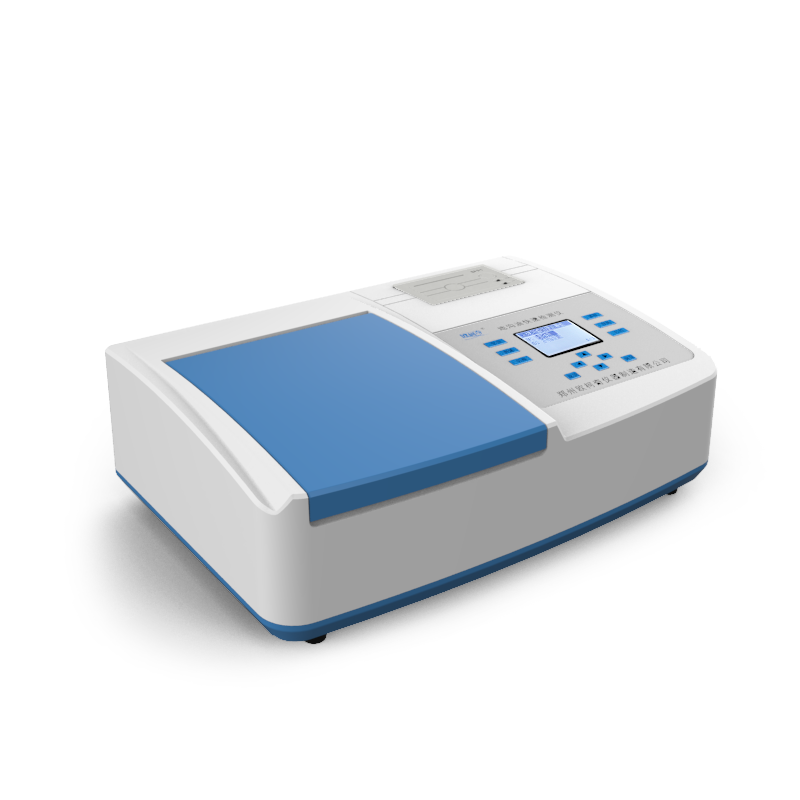

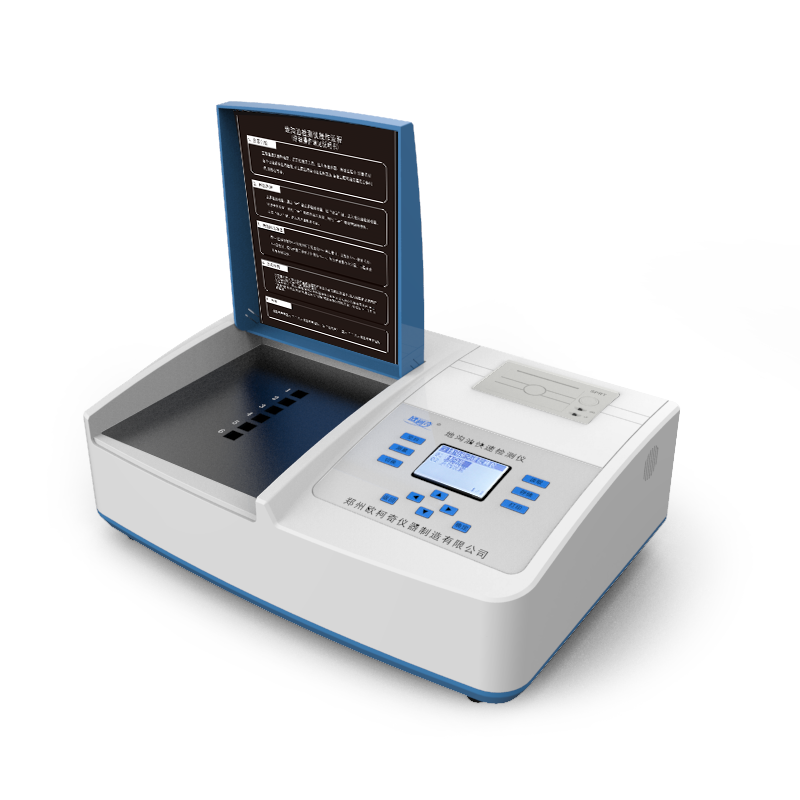

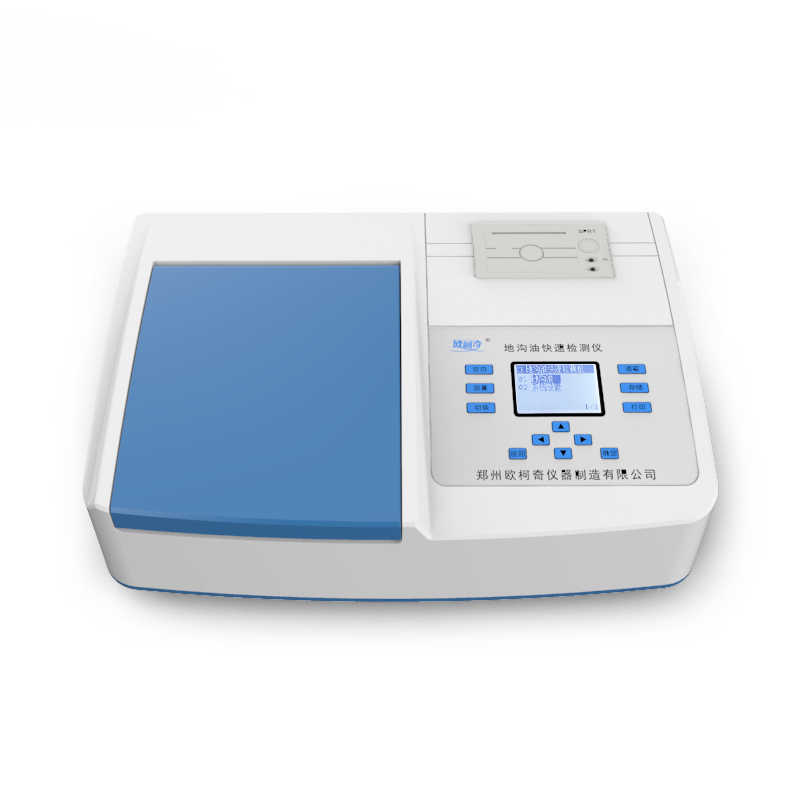

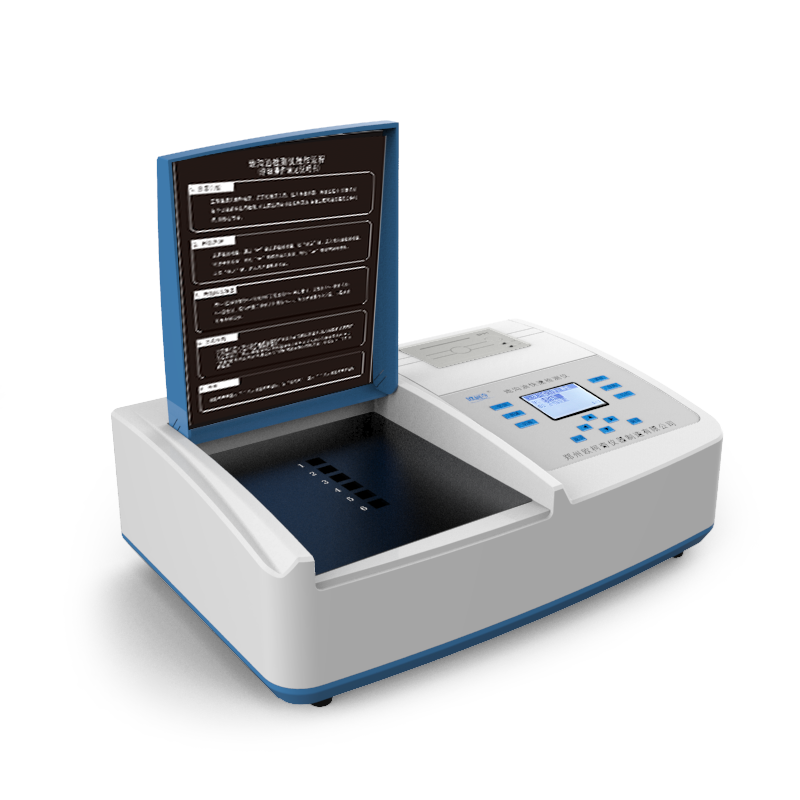

OK-SY6 "Gutter oil" fast detector is a special equipment for edible oil detection with high degree of automation. It adopts dual wavelength detection, which can eliminate background interference and improve detection accuracy. At the same time, it also has the ability to simultaneously detect 6 channels, improving detection efficiency. The instrument is composed of main components such as LED light source, multi-channel colorimetric cell, integrated photoelectric sensor, microprocessor, and LCD display.
2、 Performance characteristics
1. Chinese LCD display, easy and intuitive to operate and read data;
2. Configure a USB interface to transmit detection data to the computer;
3. The light source adopts ultra bright light-emitting diodes, which have the advantages of low power consumption, high reliability, and fast response speed;
4. Adopting a closed-loop light source automatic calibration system, it avoids phenomena such as excessive or weak light sources caused by long-term use or changes in external conditions, ensuring the working state of the light source;
5. The preheating and constant temperature management system of the light source effectively avoids drift and ensures the stability of long-term measurement;
6. Six independent detection units with dual wavelength and six channel simultaneous detection capabilities;
7. Equipped with a built-in large capacity rechargeable battery, it can work continuously for more than 8 hours without an external power source, meeting long-term use in environments without an external power source, and has a power detection function;
8. Configure large capacity memory for data storage;
9. Configure a printer interface to directly print detection results by connecting to a dedicated printer.
3、 Technical indicators
1. Number of channels: 6 channels
2. Drift: ± 0.003Abs/3min
3. Light source: LED
4. Detector: Silicon photodetector
5. Power supply: 5V DC/built-in battery
6. Environmental temperature: operating environment 5 ℃~35 ℃, storage environment 0 ℃~50 ℃
7. External dimension: 240mm × 170mm × 80mm
