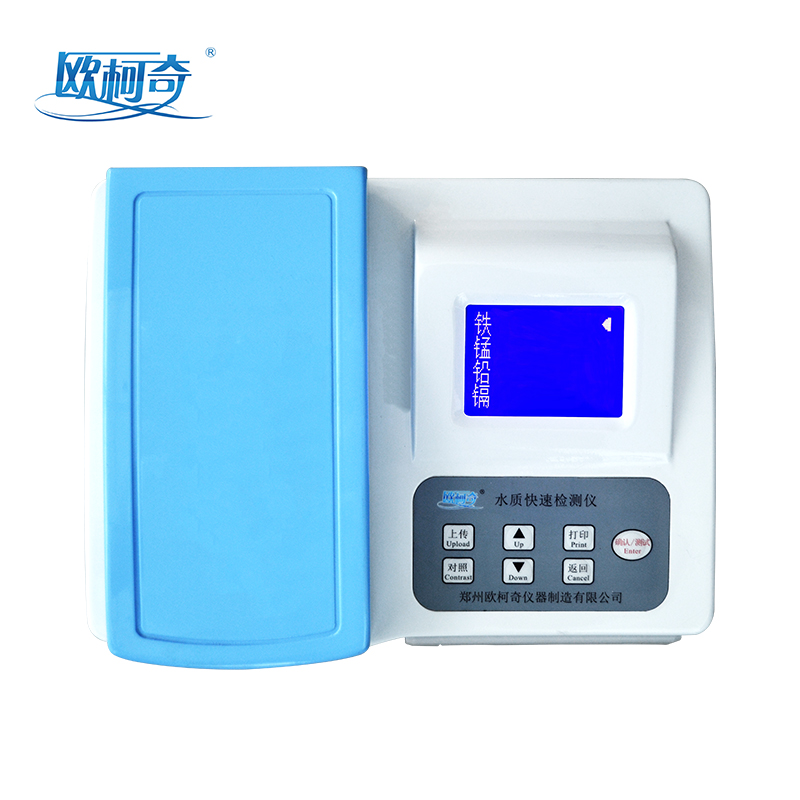

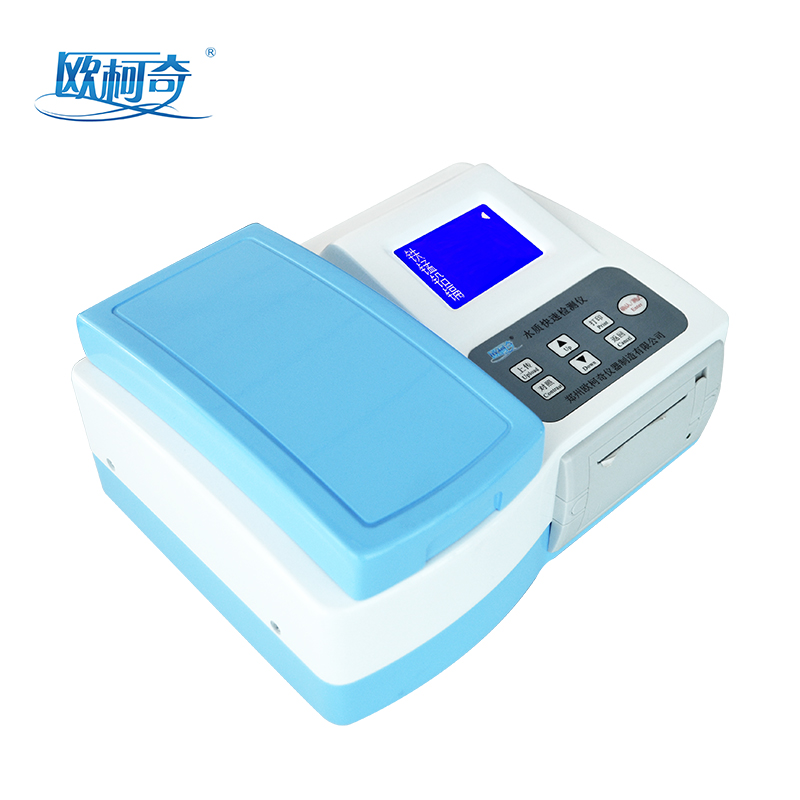

1、 Product Introduction
The desktop comprehensive water quality detector product adopts a pocket design, which is not only suitable for field water quality testing, but also for water quality analysis in the laboratory. This series of products are pre programmed according to standard detection methods, and the standard curve is stored in a single parameter water quality analyzer. When using matching reagents, the sample can be directly placed in the instrument for quantitative detection and the measurement results can be displayed directly. Suitable for water quality testing in fields such as municipal sewage, water environment monitoring, water treatment, industrial process monitoring, tap water, drinking water, boiler water, cooling water, education, agriculture, etc.
2、 Testing items
It can detect turbidity, ammonia nitrogen, nitrate nitrogen, nitrite nitrogen, residual chlorine, total residual chlorine, Chlorine dioxide, iron, manganese, urea, sulfate, formaldehyde, sulfide, cyanide, phosphate, fluoride, Hexavalent chromium, lead, cadmium, ozone, arsenic, copper, total phosphorus, chloride, oxygen consumption COD, total hardness, calcium, total dissolved solids, oxygen, pH value, etc It can detect turbidity, ammonia nitrogen, nitrate nitrogen, nitrite nitrogen, residual chlorine, total residual chlorine, Chlorine dioxide, iron, manganese, urea, sulfate, formaldehyde, sulfide, cyanide, phosphate, fluoride, Hexavalent chromium, lead, cadmium, ozone, arsenic, copper, total phosphorus, chloride, oxygen consumption COD, total hardness, calcium, total dissolved solids, oxygen, pH value, etc.
3、 Product Features
◆ The experimental results are displayed in terms of concentration, absorbance, or transmittance percentage.
◆ Automatically select the wavelength within the predetermined program parameter range.
◆ The portable design of the instrument makes it easy to operate.
◆ 128X64 dot matrix LCD display with backlight.
◆ Full Chinese display interface, easy to operate and convenient.
◆ Imported photoelectric converter ensures the accuracy and stability of measurement.
◆ Imported ultra high brightness LED light source with unique light source driving technology ensures long-term stability of the instrument.
◆ Measure using a standard colorimetric dish, with a total of 6 channels, which can be tested simultaneously.
◆ Equipped with a USB interface, it is convenient to connect to a computer for data transfer.
◆ The insulation design of the instrument is sturdy and reliable in structure, making it more suitable for on-site use.
◆ Equipped with a built-in printer, it can print detection results in real-time.
◆ Equipped with a built-in lithium battery for power supply, to avoid false detection caused by insufficient power when there is no charging device on site.
◆ Equipped with GPRS data upload function, it can upload detection data to designated platforms.
◆ Equipped with GPS positioning function
4、 Technical parameters
※ Wavelength range: 510nm, 535nm, 640nm
※ Wavelength selection: automatic
※ 100% noise: ≤ 0.5% τ
※ 0% noise: ≤ 0.5% τ
※ Drift: ≤ 0.4% τ/ 3min
※ Light source: Ultra high brightness LED
※ Detector: Photovoltaic converter
※ Display: 128X64 dot matrix with backlight
※ Reading mode: transmittance, absorbance, concentration
※ External output: USB
