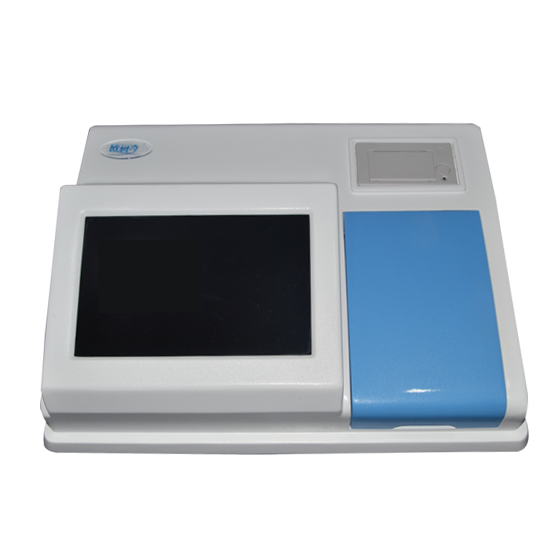

OK-SC96 veterinary drug residue detector

1、 Product Description

    The rapid detection instrument for veterinary drug residues adopts the principle of solid-phase enzyme-linked immunosorbent assay (ELISA), which is enzyme-linked immunosorbent assay (ELISA); The rapid veterinary drug residue detector can quantitatively and quickly detect Malachite green, sulfa, Aspergillus flavus (B1, B2, G1, G2 M1 M2), melamine, enrofloxacin, Ciprofloxacin, Erythromycin, Chloramphenicol, Oxytetracycline, tetracycline, sulfonamides (total), and other toxic and harmful substances and antibiotic residues. And it can be connected to the food safety monitoring system. The rapid detection instrument for veterinary drug residues is widely used in livestock farms, slaughterhouses, meat product deep processing enterprises, and inspection and quarantine units.

2、 Testing items

    Veterinary drug residues: Clenbuterol, Ractopamine, Salbutamol, enrofloxacin, total residue of sulfanilamide, sulfaquinoxaline, sulfamethazine, Sulfametoxydiazine, furantone, Furazolidone, Nitrofurantoin, Nitrofurazone, Chloramphenicol, Malachite green (significant), Malachite green (recessive), melamine, Sudan stain, enrofloxacin, Aspergillus flavus B1, nifursol, Ciprofloxacin, Quinolones, Ofloxacin, saccharin sodium, dehydroepiandrosterone, Rosiglitazone, Stilbestrol, antibiotic residues.

3、 Functional characteristics

1. The 96 channel fiber optic detection structure has a reference calibration channel, which can monitor the effectiveness of each test in real-time. Support 96 well and 48 well plates and other microplate detection;

2. When detecting different items, the instrument automatically locates the wavelength and supports 10 filters;

3. Randomly solidify routine testing items, which can be added at any time and modified and added by users, making it convenient and fast;

4. Adopting a 7-inch LCD touch color large screen display with a resolution of 800 * 480, it can directly display 96 holes on the entire board in full screen, with clear and complete display content;

5. New Windows graphical interface, color LCD touch screen operation, simple and convenient operation;

6. Adopting RS232 communication port; Support direct connection of external USB data cable to PC; Support data export function in Excel format; Support multiple comprehensive report output and summary statistics functions;

7. Support touch screen and PS/2 mouse operation, pinyin input method;

8. Support quality control function, with instant method and ELISA method quality control; Can view quality control results and quality control charts;

9. Support built-in thermal printer, which can print matrix whole board data and patient comprehensive test reports; Can connect to external USB designated printer models;

10. Adopting SD card data storage to meet the requirements of "massive" data storage and easily meet the needs of normal testing work;

11. Support simultaneous detection of 6 items on one board through workstations;

12. Support GPRS remote data communication module and network communication module;

13. Adopting advanced USB flash drive automatic program upgrade function; Simple and fast Support copying data from USB flash drives;

14. The instrument has a qualitative and quantitative analysis function, which can output original absorbance reports, liquid phase blockage detection reports, concentration data reports, and qualitative analysis negative and positive result judgment reports;

15. Adopting an energy-saving design with automatic light source switch, extending the lifespan of the light source, equipped with self checking and alarm functions for optical paths, mechanical moving parts, etc., to ensure that the instrument is in good working condition;

16. Powerful information management and comprehensive reporting functions: The instrument is equipped with a built-in database of test samples, testing personnel, and system logs, strengthening regulatory traceability efforts, and supporting conditional summary queries
