1. Product Features

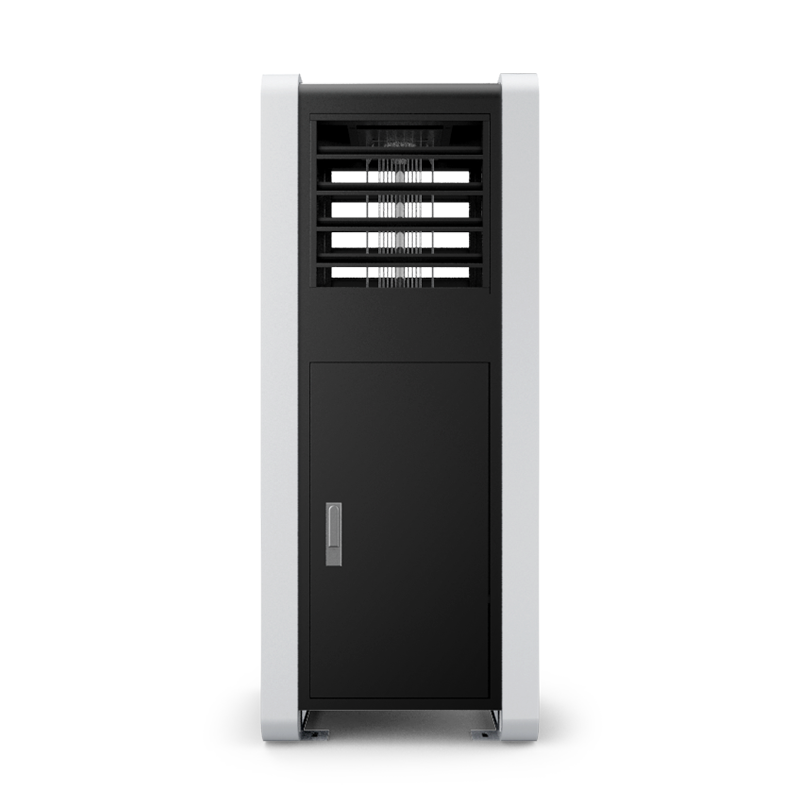

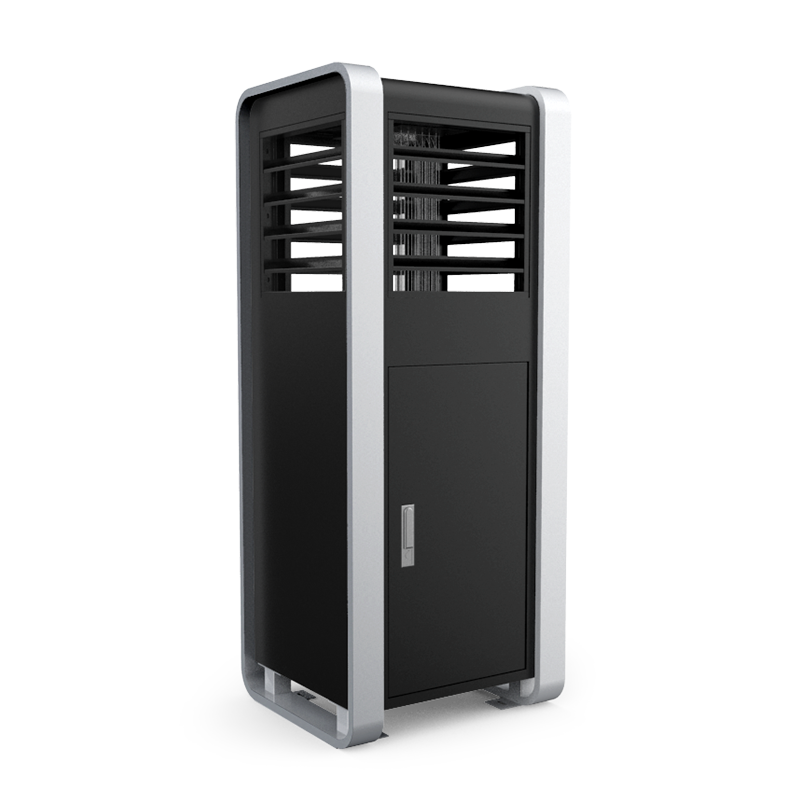

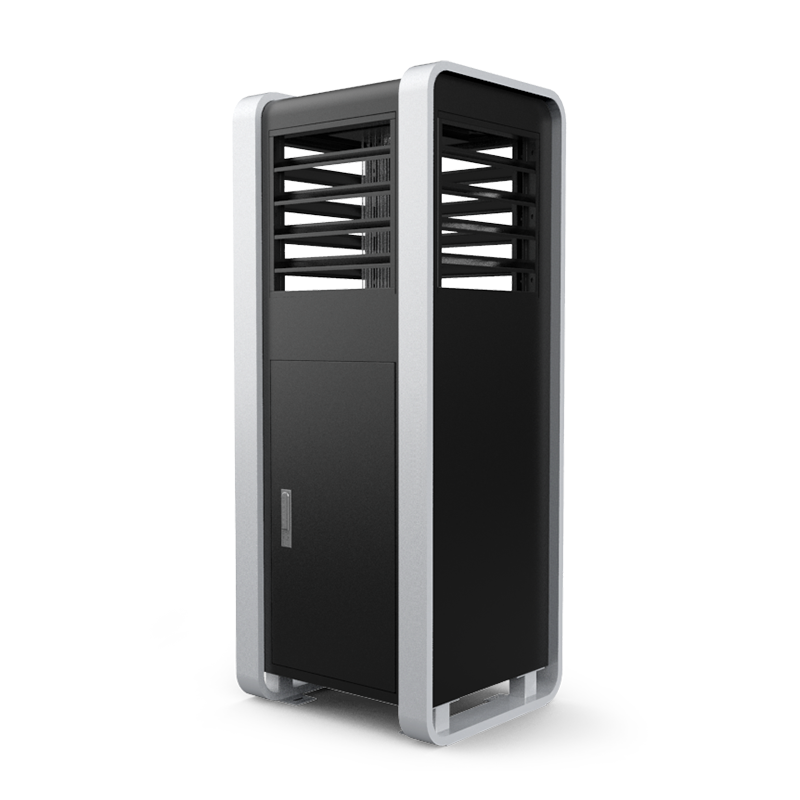

Cotton bollworm is an important economic pest worldwide, widely distributed in China. It has a wide range of host plants and strong reproductive ability, which can cause significant economic losses to agricultural production during major outbreaks. The cotton bollworm detection and reporting instrument is specially developed for cotton bollworm detection and reporting. This lamp utilizes modern light, electricity, and CNC technology to achieve functions such as far-infrared automatic processing of the insect body, automatic insect dispersal, automatic photo uploading, automatic insect cleaning, and automatic operation of the entire lamp. Automatically complete system operations such as trapping, killing, taking photos, collecting, and drainage without supervision. Multiple sensor interfaces such as wind speed and direction, environmental temperature and humidity, and lighting can be added, and data can be uploaded through 4G to monitor the relationship between the environment and pests and diseases. Widely used for monitoring cotton boll pests and pests.
2. Performance Characteristics
1. Meet the GB/T 24689.1-2009 plant protection machinery pest detection and reporting lamp standard.
2. The overall structure adopts a stainless steel spray plastic shell design.
3. Adopting optical, electrical, and CNC technologies for automatic control.
4. Color 7-inch Chinese LCD capacitive touch screen operation; It can be set and controlled in different time periods, and can be taken automatically or manually; Intelligent control of Android system, displaying environmental temperature, humidity, and time.
5. The reporting lamp is equipped with a built-in 1200W pixel image acquisition device, which can collect real-time insect body images on the receiving tray through the camera.
6. The insect body is scattered and laid flat on the receiving tray, and the trapped insect body is subjected to vibration dispersion and leveling treatment.
7. The instrument is equipped with a built-in grating counting device (non image recognition counting), which can record the number of insects in real-time and upload them to the platform.
8. It has an automatic cleaning function, which can sweep the captured insect bodies away from the shooting area and enter the insect body collection bin.
9. Various data and alarm parameters of the instrument can be uploaded to a remote server through the network for easy maintenance and management.
10. With built-in GPS and Beidou positioning functions, you can view data such as device sites in the map.
11. The platform can control functions such as insect trap light switch, heating tube switch, cleaning of pest control and drying silos, and vibration motor switch.
12. The upper and lower layers of far-infrared insect body treatment warehouses can more effectively complete pest control and drying work.
13. Temperature control of far-infrared insect body treatment warehouse: After working for 15 minutes, the temperature reaches 85 ± 5 ℃, and the treatment time can be adjusted arbitrarily.
14. The Case fatality rate of far-infrared insect treatment shall not be less than 98%, and the insect integrity rate shall not be less than 95%.
15. Multi wavelength insect trap light source with a power greater than 20W.
16. Light control: Automatically turn on the lights at night, turn off the lights during the day (standby), and work at night without being affected by instantaneous strong light to change the working state.
17. Time period control: Set the working time period based on the living habits of target pests.
18. Rain control system device: A separate drainage system structure automatically discharges rainwater, effectively separating rain and insects, and ensuring that there is no accumulated water inside the box.
19. Network mode: Multiple networking methods available, including 4G, WIFI, and wired, allowing for anytime, anywhere network management.
20. You can view device data through various methods such as PC, APP, and WeChat.
21. Equipped with flow alarm function. The device can be bound to its corresponding traffic card through the platform, and alarm information can be automatically pushed when the traffic is abnormal.
3. Technical Parameter
1. Power supply: AC220V
2. Power consumption: standby state ≤ 5W; Whole lamp power ≤ 450W
3. Insect trap light source: 20W black light tube (main wavelength 365nm)
4. Impact screen: at a 120 degree angle to each other, single screen size: length 595 ± 2mm, width 213 ± 2mm, thickness 5mm
5. Lamp start performance: Start within 5s
6. Temperature control of far-infrared insect body treatment warehouse: reach 85 ± 5 ℃ after working for 15 minutes
7. Insulation resistance: ≥ 2.5M Ω
8. Lamp body size: 650mm × 650mm × 2100mm
