1. Product Features

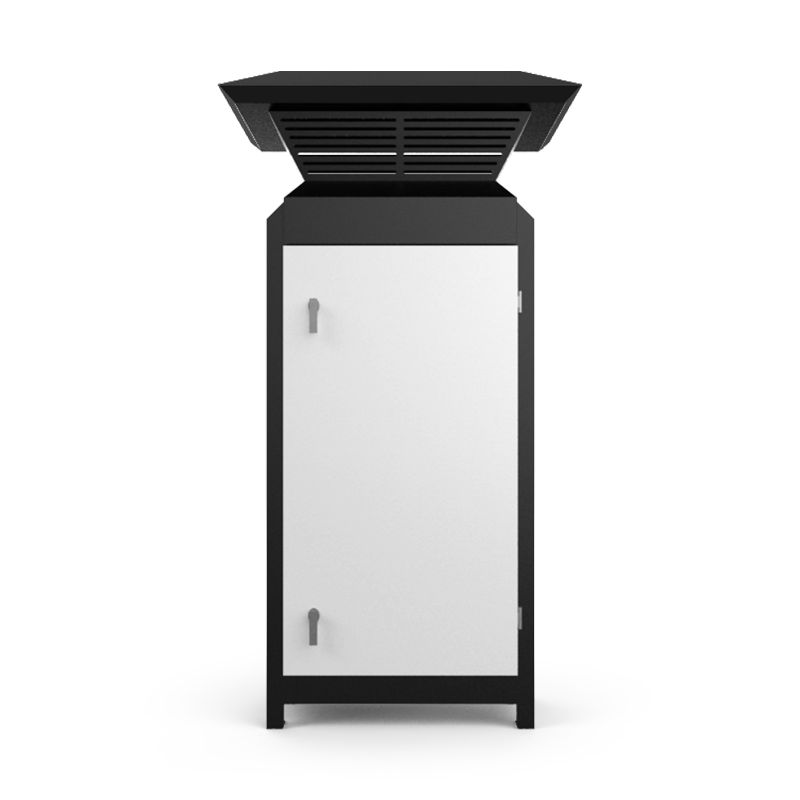

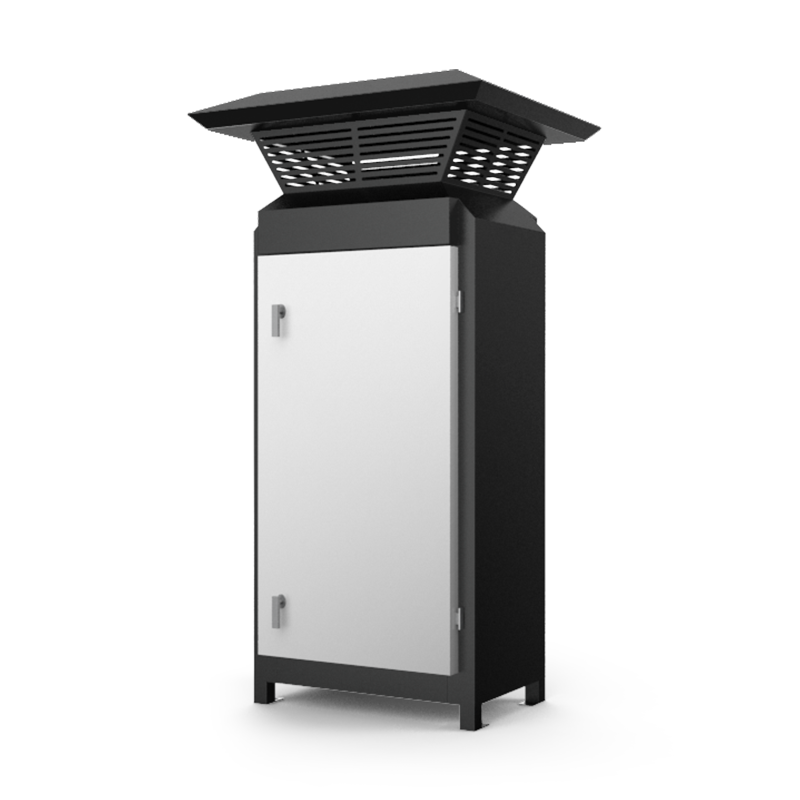

Wheat Powdery mildew damages the leaves, stems and ears of wheat, which will reduce the number of tillers, grains per ear and yield. Powdery mildew monitor is a new type of Powdery mildew monitoring equipment that uses intelligent spore capture microscopic imaging. The system collects the growth environment of the wheat Growing region, and predicts the incidence of wheat Powdery mildew according to the system's built-in model. At the same time, the built-in spore capture device of Powdery mildew provides an unmanned and visual verification means for the occurrence of Powdery mildew by collecting the spore stock and diffusion dynamics of Powdery mildew.
2. Performance Characteristics
1. The stainless steel spray molded shell has a 15 inch ultra large high-definition capacitive touch screen, a Windows operating system, and a good human-computer interaction interface.
2. A 1000 magnification microscopic imaging system with 12 million pixels can automatically perform high-definition microscopic photography of captured bacterial spores, and the captured image clarity can meet the requirements of manual identification of bacterial spore types.
3. The device automatically captures bacterial spores 24 hours a day, automatically takes photos of the captured bacterial spores, and automatically selects the best image to upload.
4. The fully intelligent automatic microscopic imaging system can automatically adjust the camera's shooting angle, achieving omnidirectional and dead angle imaging of the glass ribbon.
5. Capable of achieving automated operation throughout the entire process of loading glass ribbons, capturing bacterial spores, microscopic imaging, and recycling glass ribbons.
6. Equipped with ultra long dedicated glass carrier tape, it can meet the usage requirement of 600 days.
7. It has multiple working modes, including automatic operation mode, timed operation mode, and debugging operation mode, which can be freely switched and used.
8. Built in Beidou/GPS positioning function, device information can be uploaded to the platform in real-time, and current device parameters can be viewed on the map.
9. The device can be controlled through the platform and APP for actions such as feeding, collection, microscopic imaging, and recycling.
10. Remote upgrade and maintenance: The latest program can be automatically updated remotely without the need for manual replacement on site.
11. Multiple data access methods: You can access the platform on a PC, view data through mobile apps, and control device actions.
12. Standard 4G communication module, optional 5G communication module.
13. Equipped with a fault self-diagnosis mechanism, device fault information can be reported in real-time to the remote server. After sales personnel can view equipment fault information through the platform.
14. It can be paired with an intelligent solar power supply management system, which can collect key information such as device electricity consumption, solar power generation, battery voltage, device load, current, and upload it to the server (optional).
15. Equipped with flow alarm function. The device can be bound to its corresponding traffic card through the platform, and alarm information can be automatically pushed when the traffic is abnormal.
3. Technical Parameter
1. Material: GB32080-92 stainless steel;
2. Data transmission method: 4G/5G network (optional), wired network;
3. Power supply voltage: AC 220V ± 5%;
4. Power: 200W;
5. Timing: 5 time periods can be set;
6. Glass tape: length: 150M, width: 0.025M, which can meet the demand of 600 days;
7. Wind speed at the gas gathering port: 0.3~5 m/s;
8. Insulation resistance: ≥ 2.5M Ω.
