1、 Technical parameters
Working power supply: DC12V
Working current: 2mA
Environmental temperature: -40 ℃ -80 ℃
Relative humidity: ≤ 100% RH
Measurement accuracy: temperature ± 0.4 ℃, humidity ± 3%, dew point ± 3 ℃
Measurement range: temperature -30 ℃ -70 ℃, humidity 0% -100%, dew point 0 ℃ -100 ℃
2、 Function Description

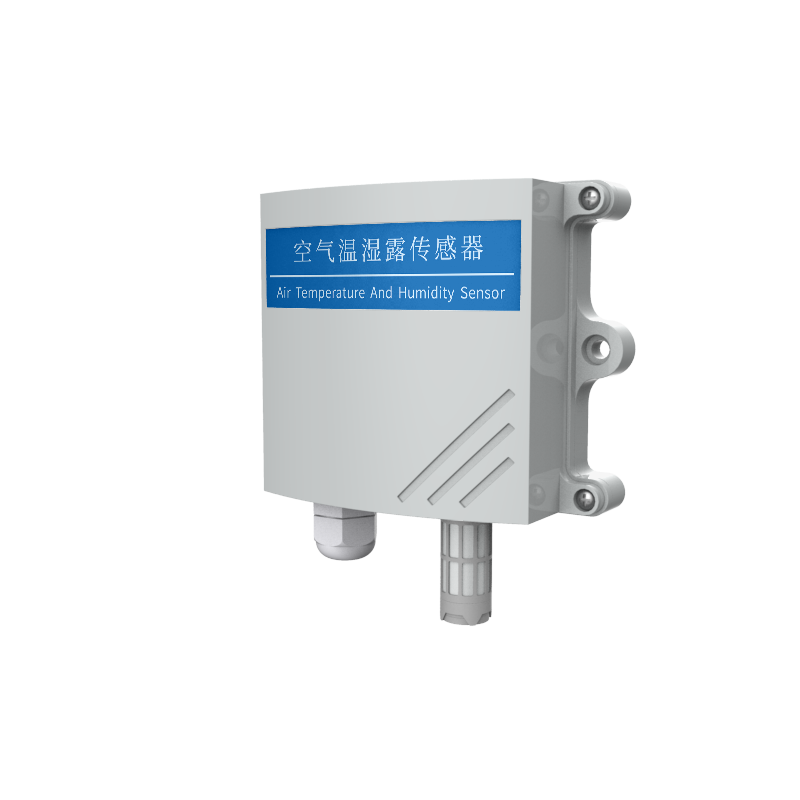

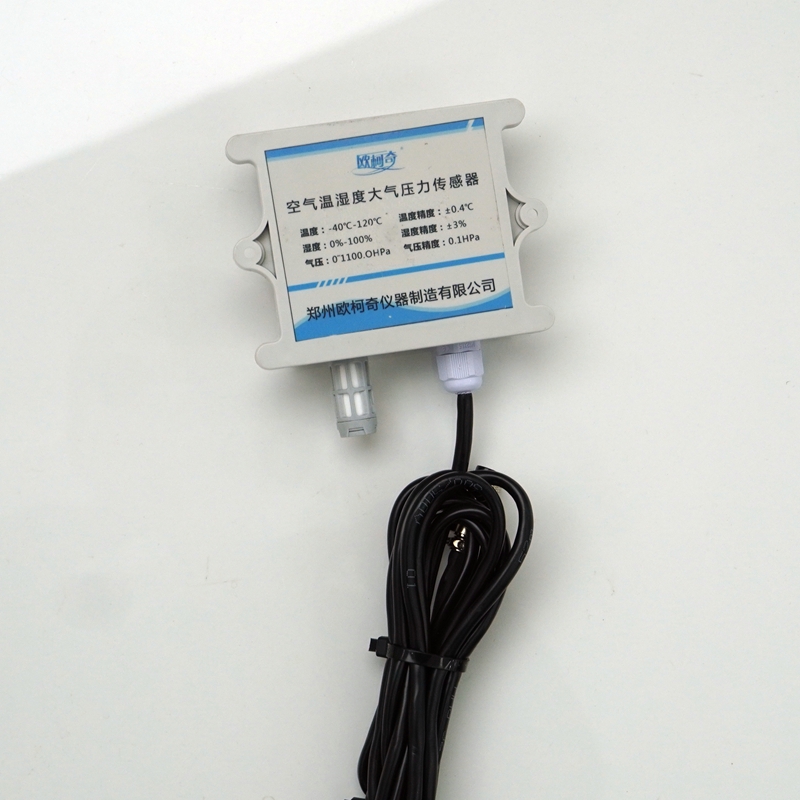

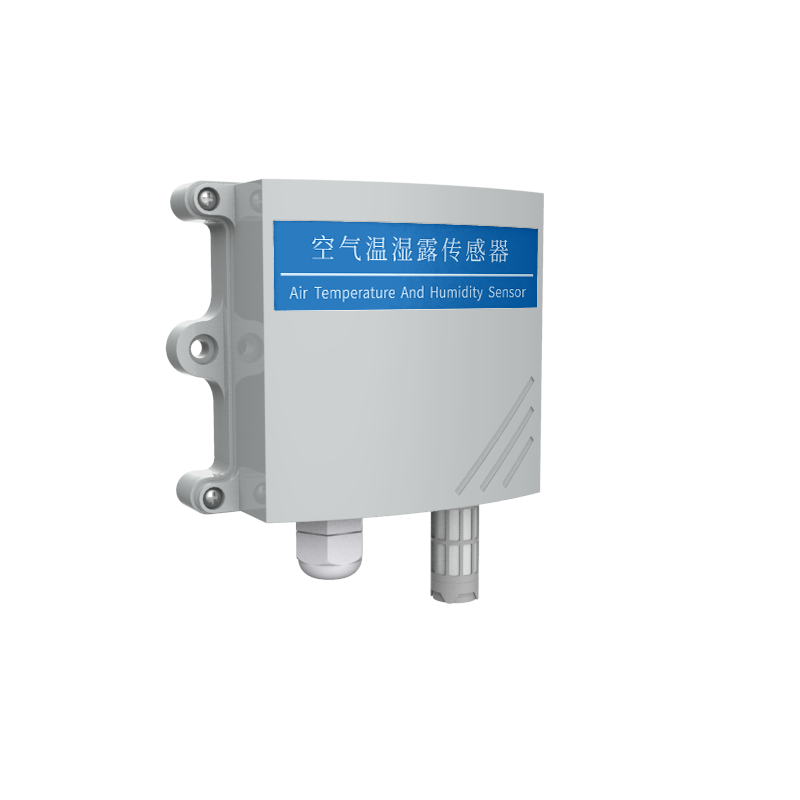

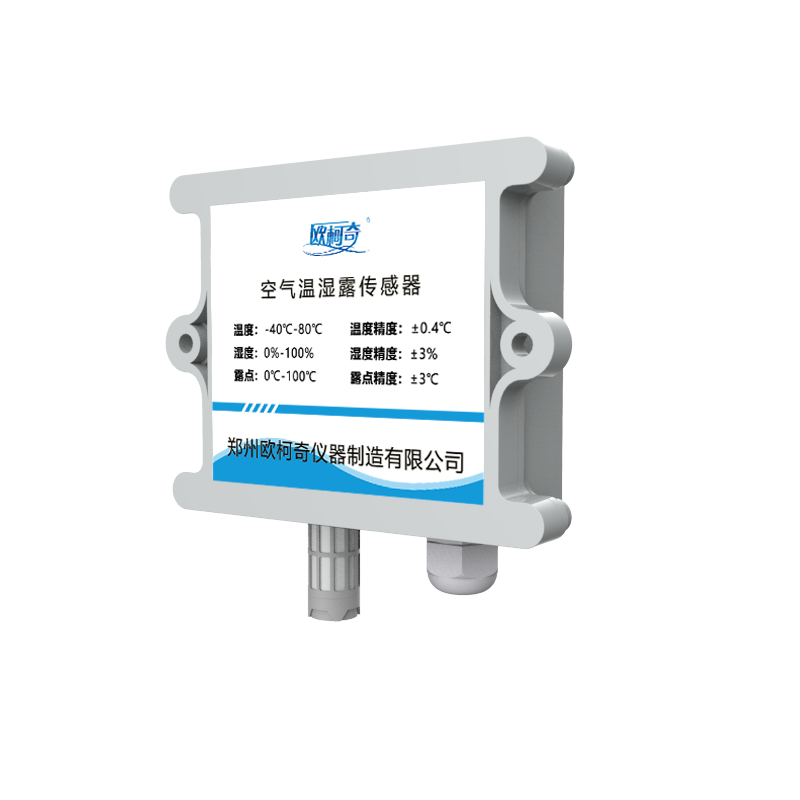

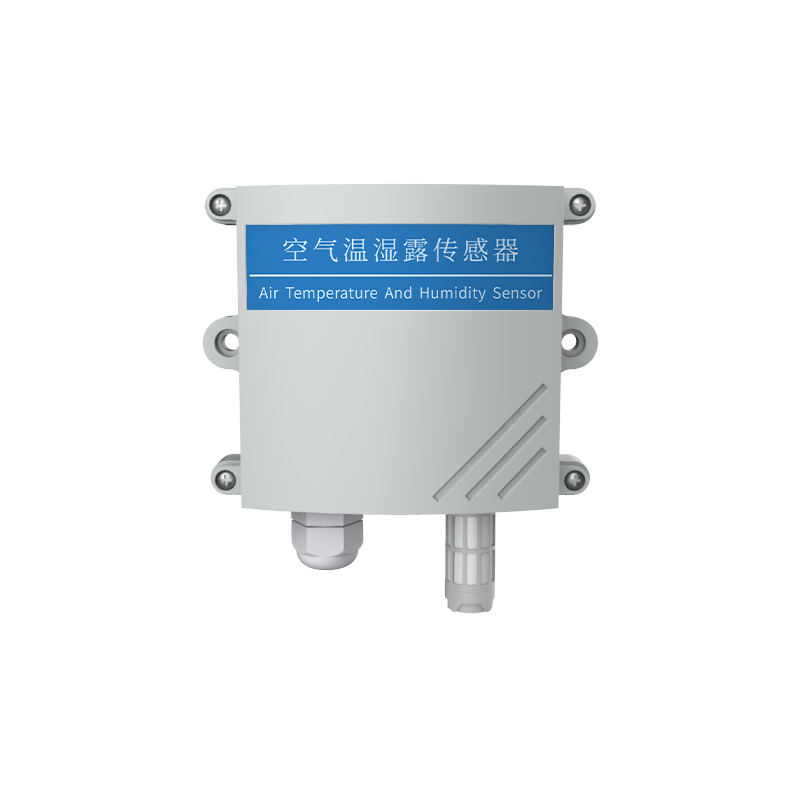

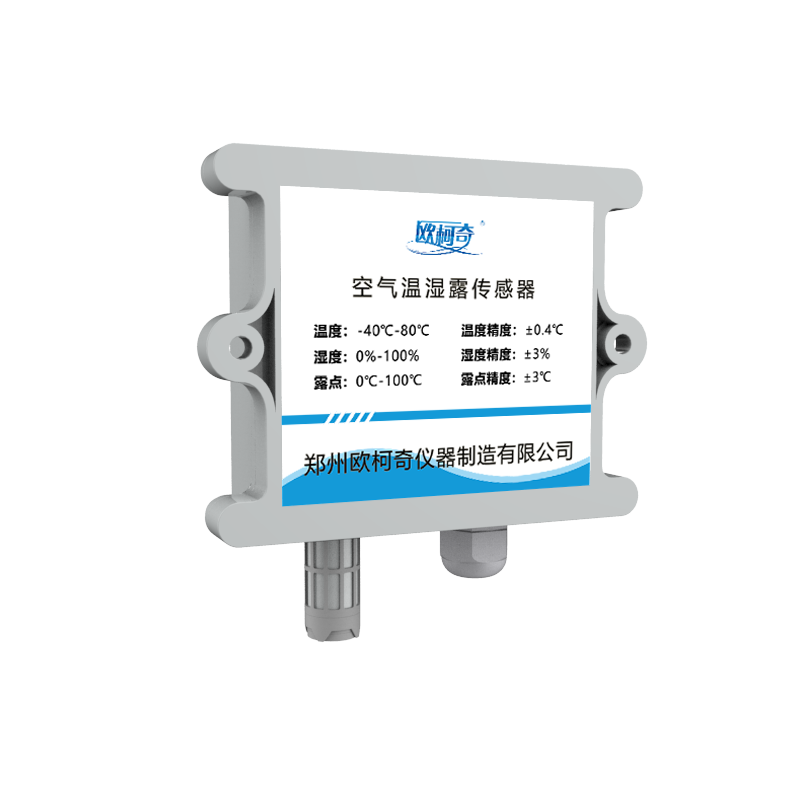

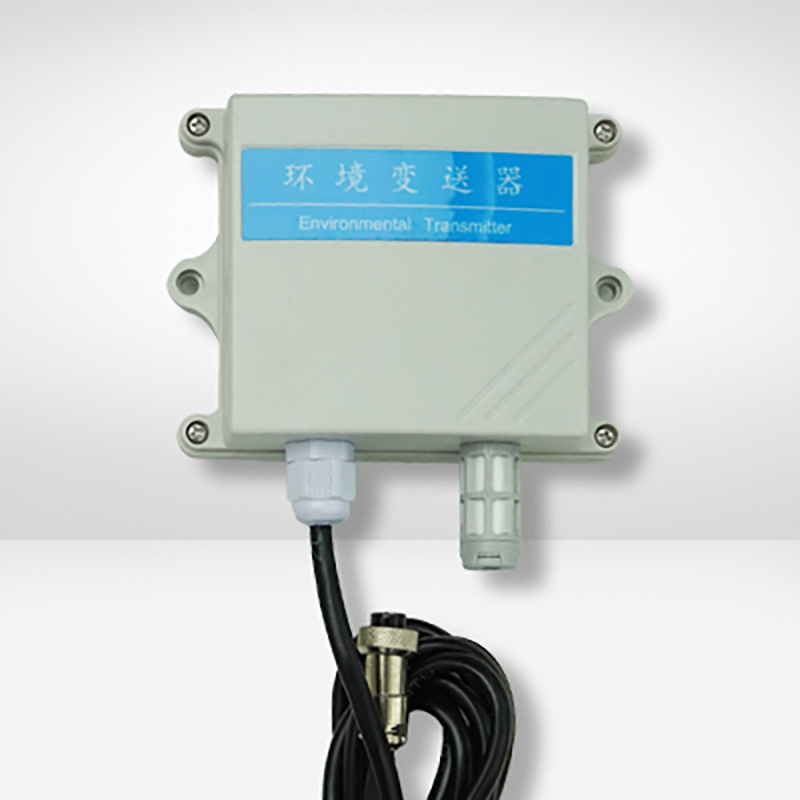

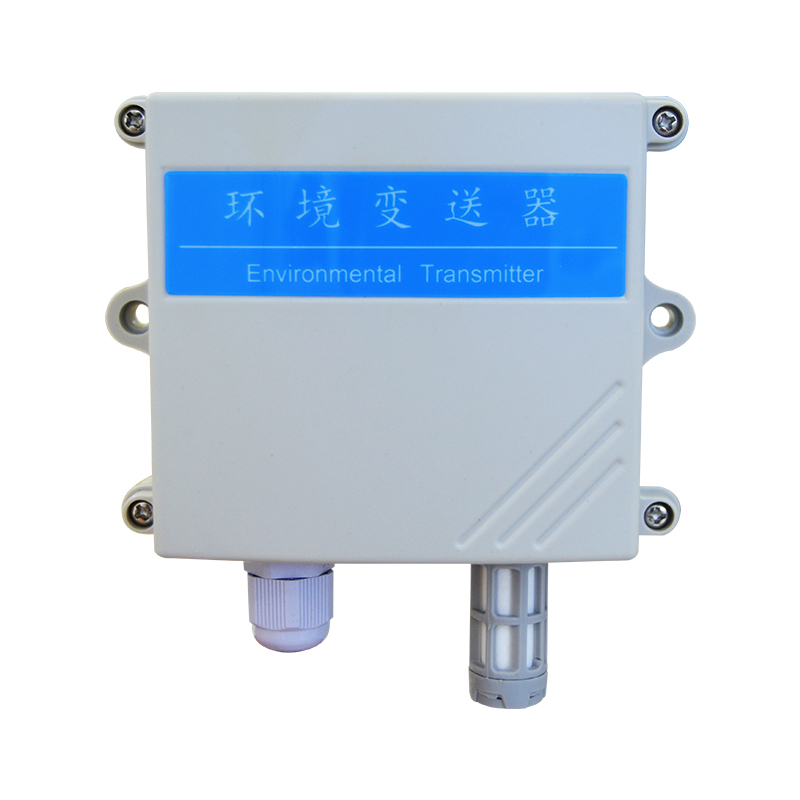

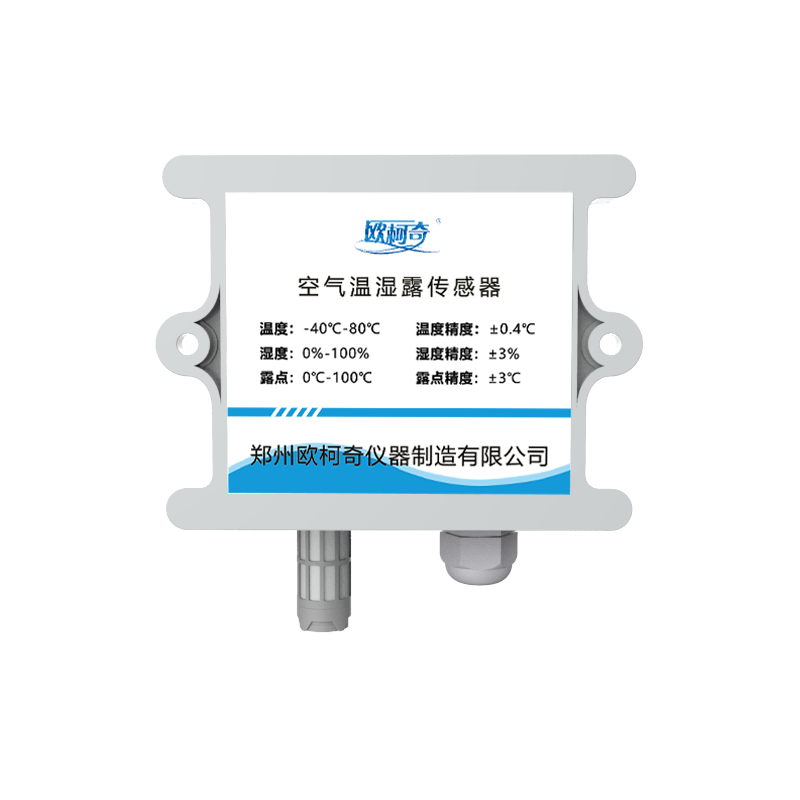

The temperature and humidity sensor is a composite sensor that contains three parameters: temperature, humidity, and dew point, which have been calibrated for digital signal output. It applies industrial CMOS process microfabrication technology (CMOS ens) to ensure high reliability and excellent long-term stability of the product. The sensor includes a capacitive polymer humidity measuring element and a bandgap temperature measuring element, and is seamlessly connected to a 14 bit A/D converter and serial interface circuit on the same chip. Therefore, this product has the advantages of excellent quality, sensitive response, strong anti-interference ability, and high cost-effectiveness. Each sensor is calibrated in an extremely accurate humidity calibration room. The calibration coefficients are stored in memory in the form of a program, and the sensor needs to call these calibration coefficients during the signal processing process.
