1、 Product Introduction

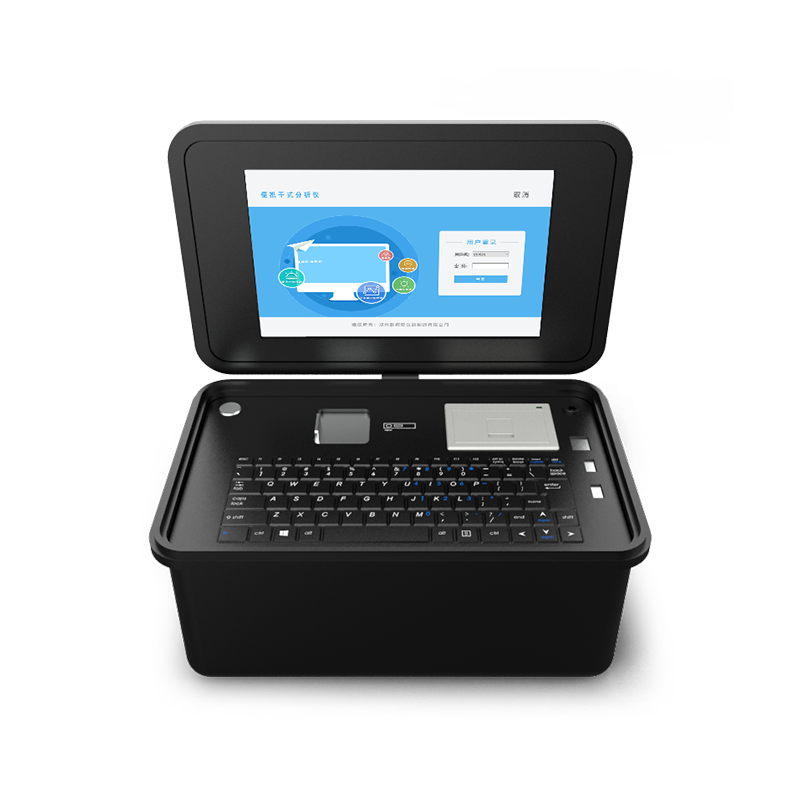

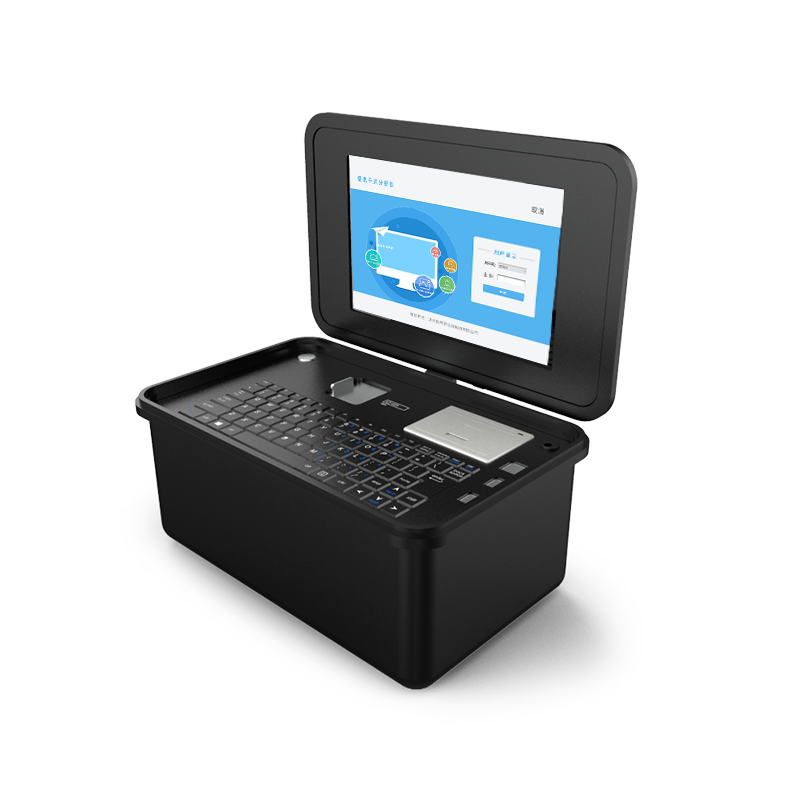

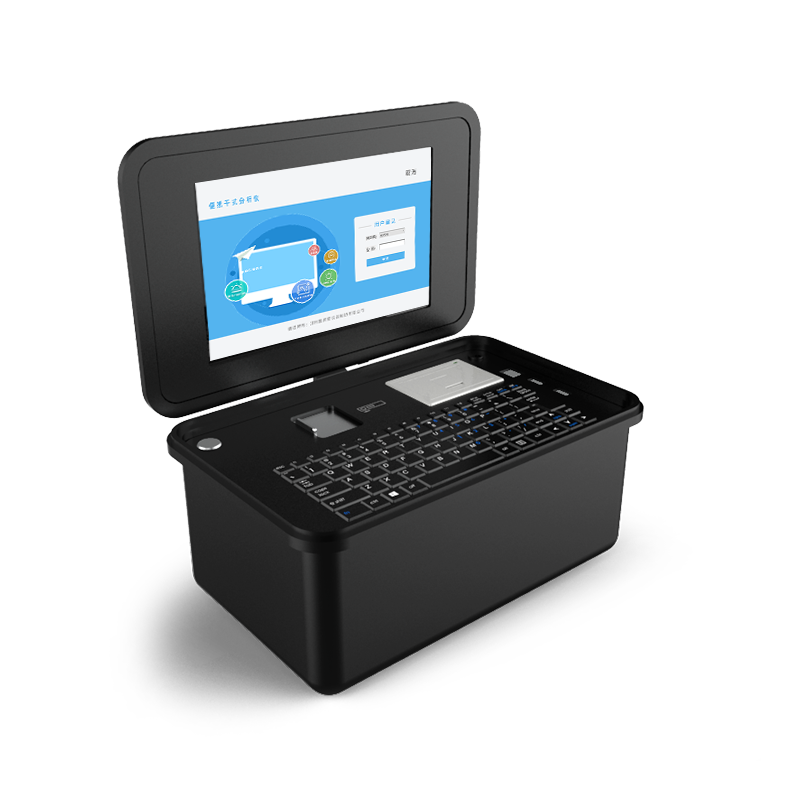

Portable food safety dry analyzer (i.e. food safety dry test paper portable analyzer) is a new type of food safety rapid analyzer. This instrument is a multifunctional integrated, portable, and integrated design that combines two core technologies: filtration chemical coloration and biological coloration. It can detect most indicators such as veterinary drug residues, pesticide residues, illegal additives, biological toxins, and pathogenic bacteria in food on site.
2、 Detection indicators
1. Veterinary drug residues and hormones
Malachite green, nitrofuran metabolites, sulfonamides, Chlorpromazine, promethazine, quinolones, tetracyclines, Chloramphenicol, clenbuterol hydrochloride, laike dopamine, etc.
2. Biotoxins
Aspergillus flavus B1, Aspergillus flavus M1, total Aspergillus flavus, Zearalenone, vomittin, histamine, disease meat characteristics, etc.
3. Pathogenic bacteria
Botox, Staphylococcus aureus, hemorrhagic Escherichia coli, Enterobacteriaceae sakazakii, etc.
4. Illegal additives and pigments
Food formaldehyde, sulfur dioxide, Hexamethylenetetramine, sodium hypochlorite, nitrite, nitrate, table salt iodine, rose B, melamine, Sodium thiocyanate, acid orange, Sudan stain red, sodium sulfate, alkaline orange, methanol in wine, Magnesium chloride, etc.
5. Pesticide residues
Organophosphorus and carbamate pesticides.
3、 Performance characteristics
1. Randomly solidify routine testing items, which can add solidifying items, modify and add items, making it convenient and fast.
2. Using a 10 inch LCD touch color large screen display with a resolution of 1024 * 768, the display content is clear and complete.
3. The instrument has a built-in keyboard, WiFi, and Bluetooth. Can be connected to an external mouse and USB drive.
4. Window operating system, 2G memory, 32G Solid-state drive.
5. Supports built-in thermal printer and external USB printer.
6. The instrument is equipped with a built-in battery and DC power supply mode to meet the needs of various on-site testing environments such as indoor, outdoor, and in vehicle.
7. Equipped with built-in speakers and video players, the instrument can provide voice prompts during use and play experimental demonstration videos.
8. The system is equipped with national limit standards for relevant detection items, which can automatically determine the results.
9. Users can upgrade their instruments, expand their projects and functions, and add testing items through software updates according to their actual needs, without the need for special tools or factory upgrades.
10. Built in multiple sample name information, with enterprise information management function, users can quickly select, add, adjust, and modify sample names, manufacturers (suppliers), and other information.
4、 Technical parameters
1. Detector: CMOS detector, which instantly captures all images simultaneously.
2. Light source: Ultra bright LED light source, circular array, ensuring uniform illumination.
3. Detection system: All solid-state system, no moving parts, high reliability.
4. Calibration function: Automatically calibrate the brightness and baseline, ensuring consistency in center and edge brightness, and compensating for inconsistent reflection features caused by structural differences between different detection cards.
5. Recognition function: CT line position can be customized for recognition, supporting line width and line spacing settings, and real-time display of detection curves.
6. It can detect various items such as veterinary drug residues and illegal addition.
7. Fast detection speed, single detection time less than 5s
8. Repeatability: RSD ≤ 1%
9. Stability: ≤ 0.15%
10. Accuracy: ± 10%
