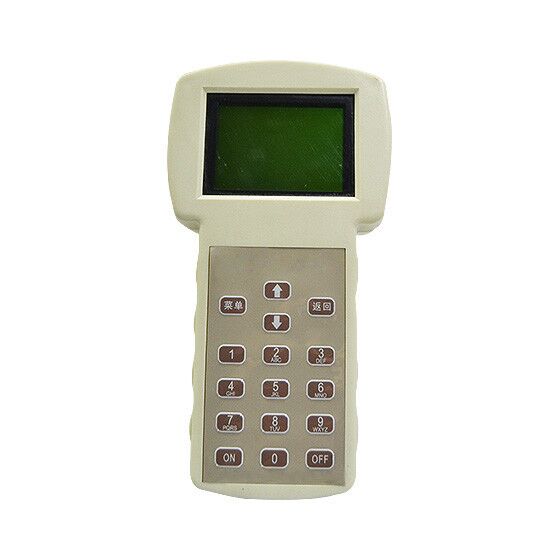

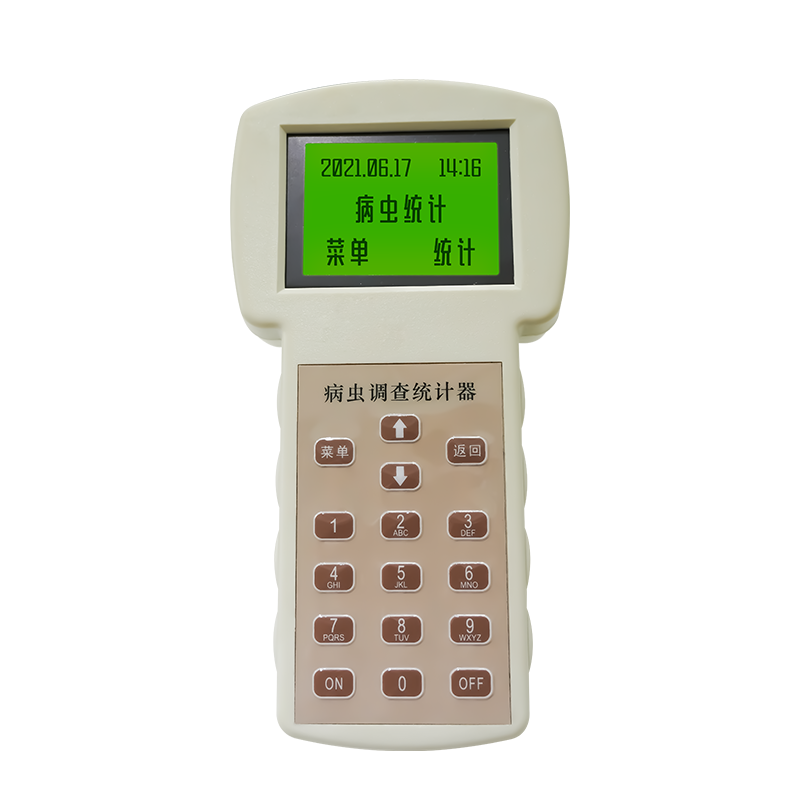

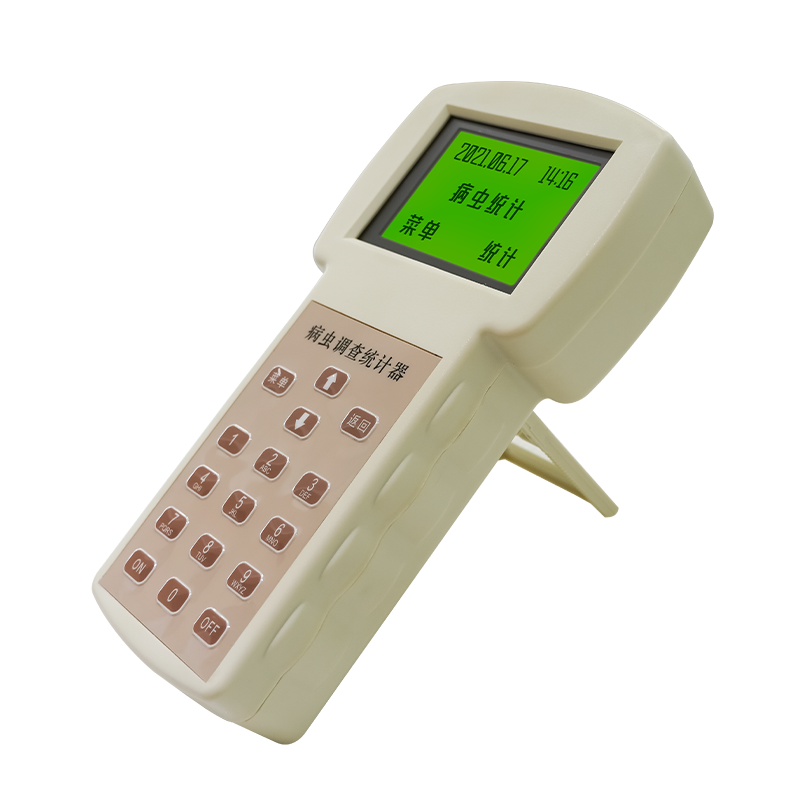

OK-TJ1 Disease and Pest Investigation and Statistics Device

The disease and pest investigation and statistics device is mainly used for disease and pest prediction, forecasting, early warning, research, and other fields in agriculture, forestry, quarantine, and other fields. Equipped with items such as insect names, collection locations, classification quantities, etc., it can be entered at any time, storing survey and statistical data of pests and diseases, and can upload statistical data to computers, edit and generate charts, thus achieving automation and standardization of statistics and analysis.

product details

1. Product Features

The disease and pest investigation and statistics device is mainly used for disease and pest prediction, forecasting, early warning, research, and other fields in agriculture, forestry, quarantine, and other fields. Equipped with items such as insect names, collection locations, classification quantities, etc., it can be entered at any time, storing survey and statistical data of pests and diseases, and can upload statistical data to computers, edit and generate charts, thus achieving automation and standardization of statistics and analysis.


2. Performance Characteristics

1. You can set your own classification subjects and types based on the disease and insect pests of various plants.

2. Using a LCD screen display, it can also indicate the collection time, location, plant name, and statistical method.

3. It can record data of over 100 diseases and pests, display cumulative values, and view 30 latest records.

4. Equipped with a data transmission port for easy online operation with computers.

5. With data export function, it can edit and generate various graphics (tables) as needed using disease and insect data.

6. Equipped with specialized operating software for disease and pest investigation and statistics.

7. Compact in appearance and easy to operate.



3. Technical Parameter

1. Working voltage: 2.9~3.4V (two No. 5 Alkaline battery)

2. Working power consumption: < 12mW

3. Standby power consumption: < 24uW

4. Working time: > 40h

5. Working temperature: 0 ℃~45 ℃

6. Weight 350 grams
