1. Product Features

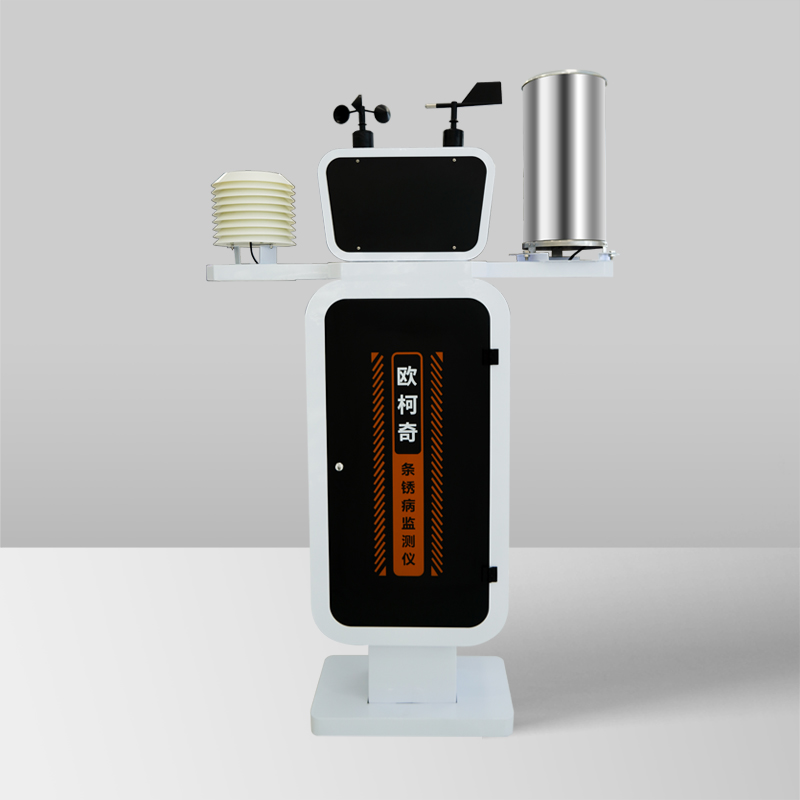

The wheat stripe rust/scab/potato late blight monitoring instrument monitors factors such as wind speed, direction, rainfall, air temperature, air humidity, atmospheric pressure, etc. on site 24/7. And through 4G wireless transmission to the platform for storage and analysis. The system automatically analyzes and calculates through a built-in data model for stripe rust/scab/late blight. It can be widely used in agricultural production.
2. Performance Characteristics
1. Multiple parameter settings, which can set parameters such as collection time interval and server address. Data is automatically saved.
2. All collected parameters are displayed on the same screen. Automatic data collection and real-time display.
3. Equipped with a USB interface, historical data can be exported to a USB flash drive for analysis.
4. The probe has consistency, and the sensor interfaces for different meteorological parameters can be interchanged without affecting accuracy.
5. Equipped with a GPRS module, it can upload data to the remote service platform in real-time.
6. Equipped with a GPS positioning module, it can upload location information in real-time.
7. Regularly collect and automatically upload monitoring information.
8. 4G wireless transmission, breakpoint continuation.
9. Solar power supply system. Ultra long endurance.
10. Multiple data viewing forms, supporting the sharing of stripe rust/scab/late blight analysis data in multiple ways.
11. Automatic analysis of stripe rust/scab/late blight infection data, automatic drawing of stripe rust/scab/late blight infection curves and microclimate environment data curves.
3. Technical Parameter
1. Air temperature: -30~70 ℃, accuracy: ± 0.3 ℃
2. Air humidity: 0-100%, accuracy: ± 3%
3. Wind speed: 0-45m/s, accuracy: ± 1m/s
4. Wind direction: 0-360 ° Accuracy: ± 1 °
5. Rainfall: 0-50mm/hour, error: ± 4%
