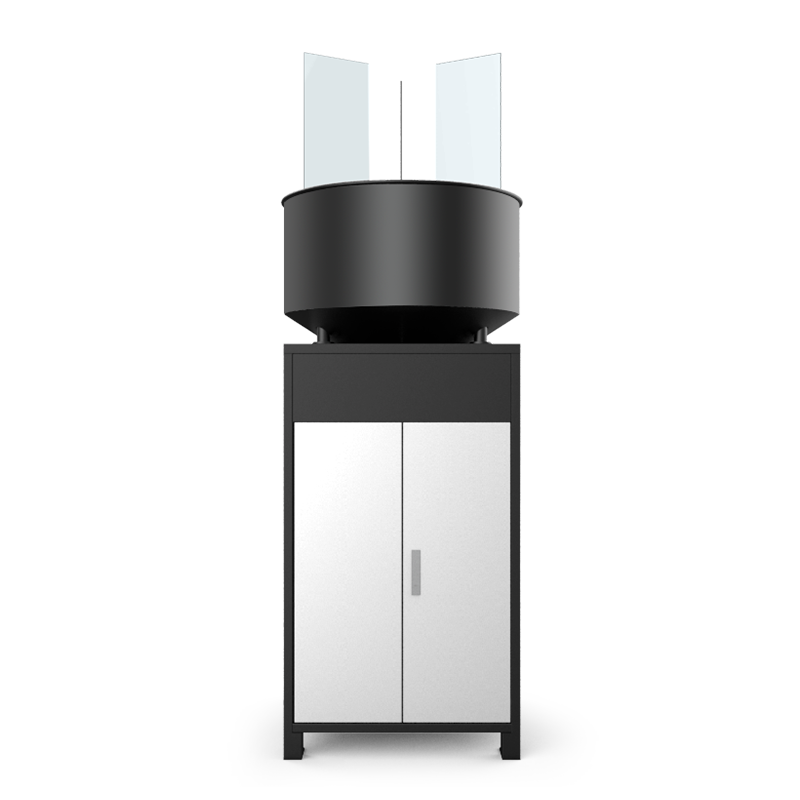

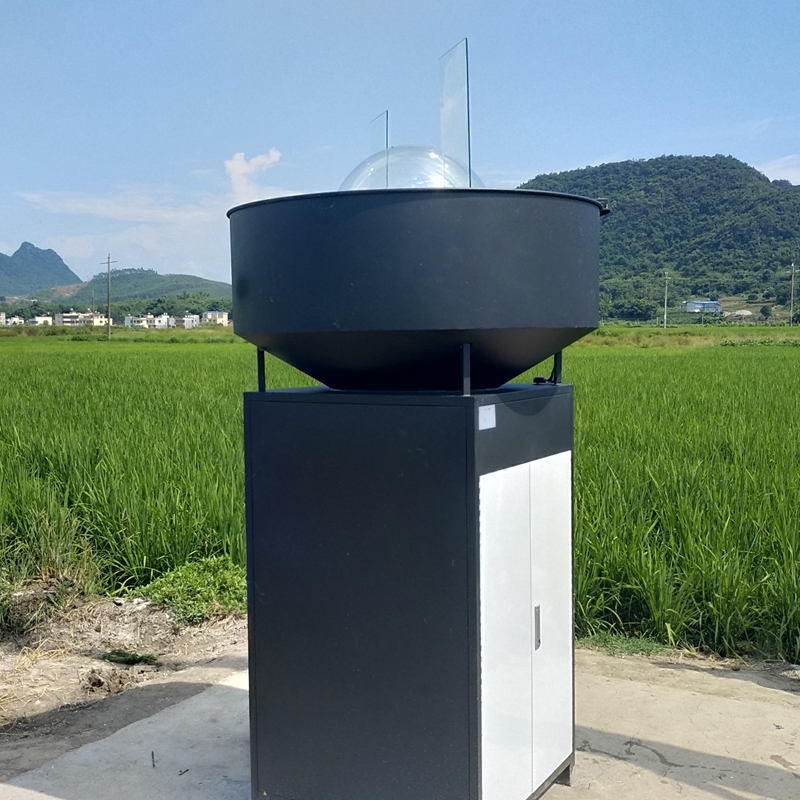

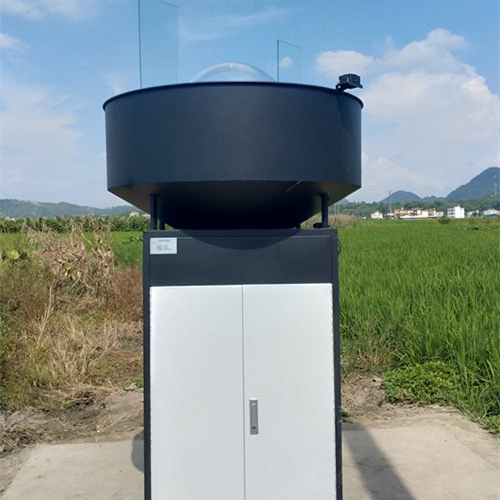

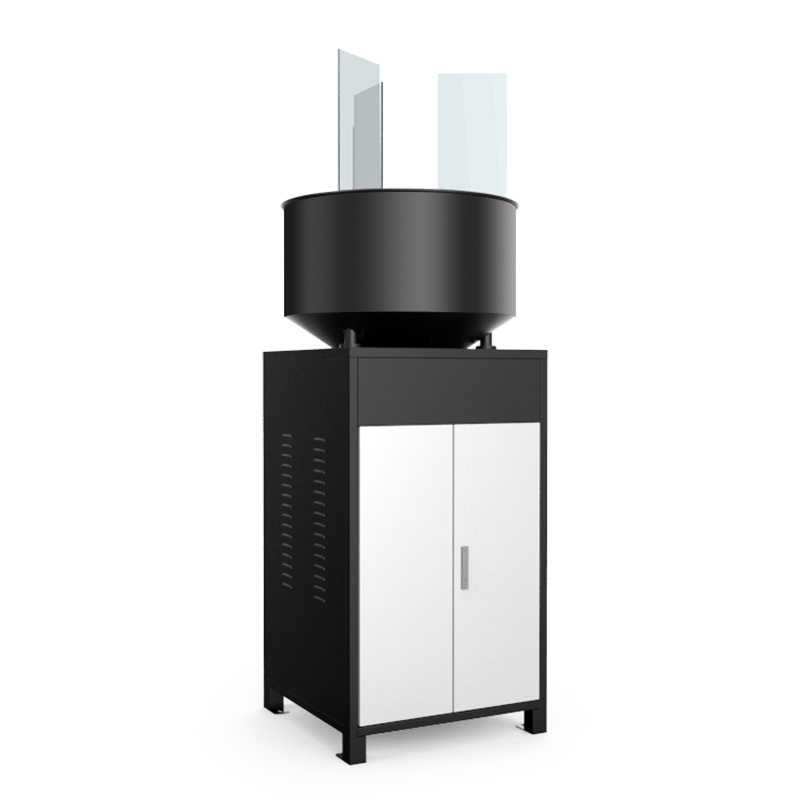

OK-GC12 Intelligent High Altitude Measuring and Reporting Lamp

1. Product Features

The intelligent high-altitude detection and reporting lamp is specially developed for the detection and reporting of migratory pests. This lamp utilizes modern light, electricity, and CNC technology to achieve functions such as automatic processing of insect far infrared, automatic conversion of insect receiving bags, and automatic operation of the entire lamp. Automatically complete system operations such as trapping, killing, collecting, packaging, and drainage without supervision. Multiple sensor interfaces such as wind speed and direction, environmental temperature and humidity, and lighting can be added, and data can be uploaded through GPRS to monitor the relationship between the environment and pests and diseases.

2. Performance Characteristics

1. Color 7-inch Chinese LCD capacitive touch screen operation; It can be set and controlled in different time periods, and can be taken automatically or manually; Intelligent control of Android system, displaying environmental temperature, humidity, and time.

2. The test report light is equipped with a 1200W pixel camera image acquisition device, which can collect real-time insect information on the conveyor belt through the camera. The captured image clarity can meet the requirements of manually identifying insect species.

3. The insect bodies are evenly scattered and laid flat on the conveyor belt, which can accurately send all trapped insect bodies to the shooting area of the high-definition camera device. The trapped insect bodies are shaken, dispersed, and leveled to ensure that each insect body feature is clearly captured.

4. The instrument is equipped with a built-in counting device, which can record the number of insects in real-time and upload them to the platform.

5. Equipped with an automatic cleaning and insect body storage device, the captured insect bodies can be transported away from the shooting area and collected into a receiving bottle. The receiving bottle has a capacity of 1.5L, and the collecting device can store insects for eight days.

6. Various instruments and data alarm parameters can be remotely uploaded to remote servers through the network, facilitating maintenance and management.

7. With built-in GPS positioning function, you can view data such as device sites on the map, and track stolen devices.

8. It can also manually control functions such as warehouse transfer, insect trap light switch, heating tube switch, pest control and drying warehouse emptying, vibration motor switch, conveyor belt switch, etc.

9. The upper and lower layers of far-infrared insect body treatment warehouses are more effective in completing pest control and drying work; Temperature control of far-infrared insect body treatment warehouse: After working for 15 minutes, the temperature reaches 90 ± 5 ℃, and the treatment time can be adjusted arbitrarily.

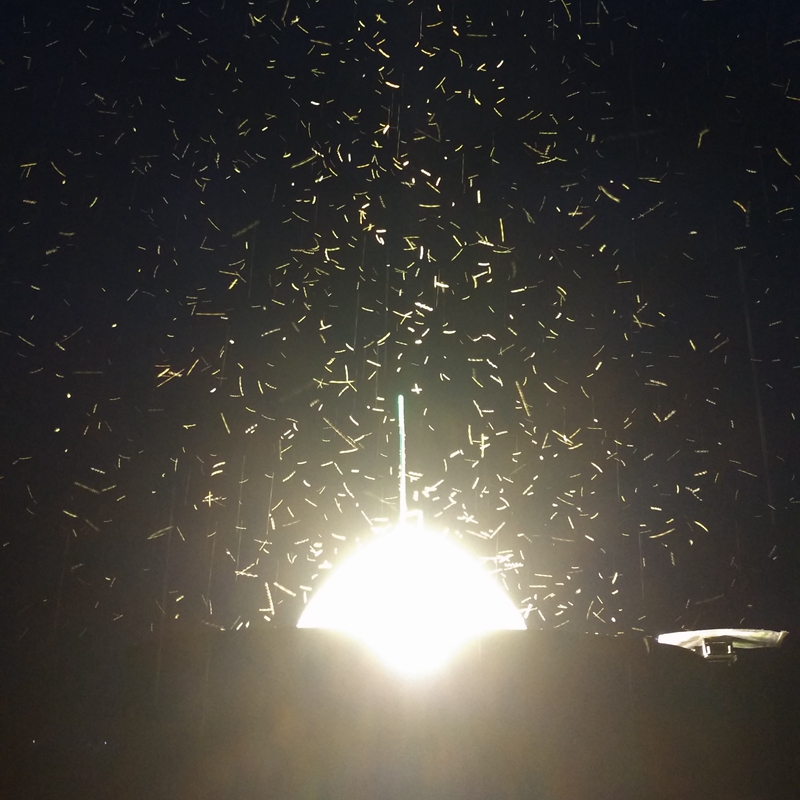

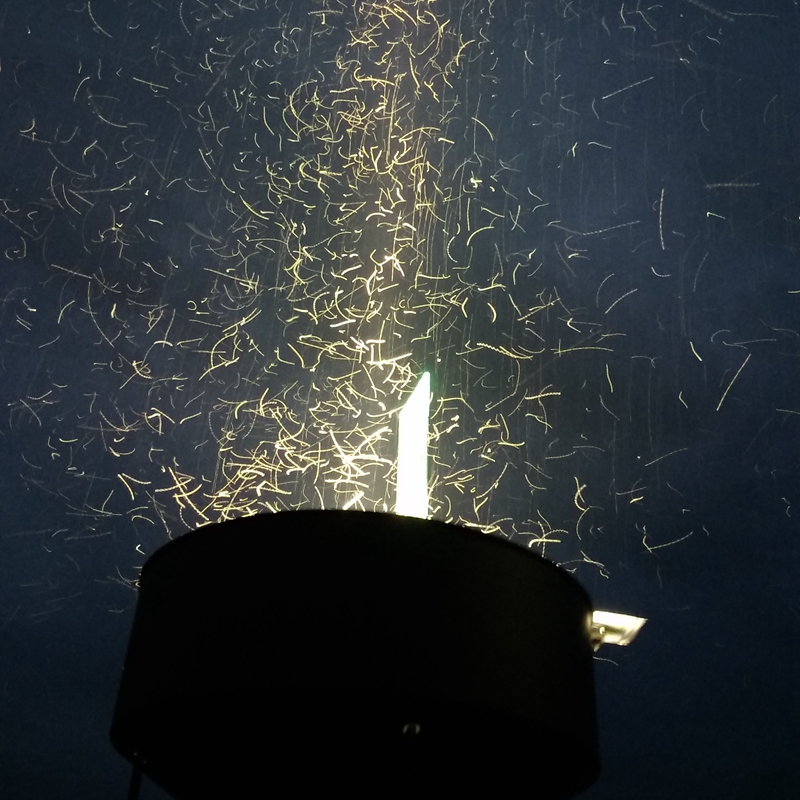

10. Insect trapping light source: 1000W halogen Searchlight.

11. Light control: Automatically turn on the lights at night, turn off the lights during the day (standby), and work at night without being affected by instantaneous strong light to change the working state.

12. Time control: Set the working time according to the habits of pests.

13. Rain control system device: A separate drainage system structure that automatically discharges rainwater, effectively separating rain and insects, and ensuring that there is no accumulated water inside the box.

14. Power supply: Voltage fluctuation range: 220V ± 60V, with leakage protection device (AC type)

15. Lightning protection device: effectively prevents lightning strikes.

16. Multiple environmental parameter interfaces such as wind speed and direction, ground temperature and humidity, lighting, rainfall, etc. can be added.

17. Network mode: Multiple networking methods available, including 4G, WIFI, and wired, allowing for anytime, anywhere network management.

3. Technical Parameter
